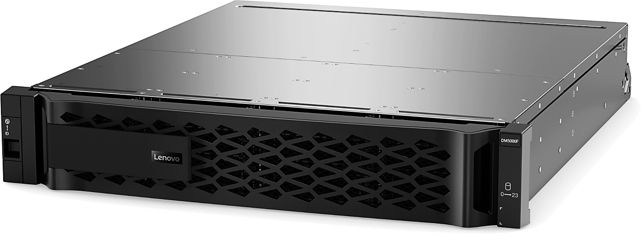

DM5000F disk array
11.5 TB Rack (2U) Black, Stainless steel
Model DM5000FPart no. 7Y411002EA
33 specifications
- Weight27.6 kg
- ColourBlack, Stainless steel
- Storage drives installedYes
- Device classLarge Enterprise Business
- Maximum number of controllers supported2
- Power supply unit (PSU) capacity931 W
Overview
- Weight
- 27.6 kg
- Colour
- Black, Stainless steel
- Storage drives installed
- Yes
- Device class
- Large Enterprise Business
- Maximum number of controllers supported
- 2
- Power supply unit (PSU) capacity
- 931 W
- Brand
- Lenovo
- Category
- Disk Array
- Model
- DM5000F
- Part number
- 7Y411002EA
- Also known as
- Lenovo DM5000F disk array 11.5 TB Rack (2U) Black, Stainless steel
Specifications
33 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | SSD |
| Number of storage drives installed | 12 |
| Total installed storage capacity | 11.5 TB |
| Supported storage drive types | SSD |
| Number of storage drives supported | 144 |
| Maximum supported storage capacity | 2200 TB |
| Storage drive capacity | 960 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| RAID levels | 4 |
| Data transfer rate | 12 Gbit/s |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
| Host ports | 8 |
| SFP+ module slots quantity | 4 |
| RJ-45 ports quantity | 8 |
| Remote management port | RJ-45 (Gigabit) |
| Serial interface type | RJ-45 |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Black, Stainless steel |
| Cooling | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum number of controllers supported | 2 |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 931 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | SUSE Linux Enterprise Server 11, SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2016 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 447 mm |
| Depth | 483 mm |
| Height | 85 mm |
| Weight | 27.6 kg |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux (RHEL) 6, Red Hat Enterprise Linux (RHEL) 7, Red Hat Enterprise Linux (RHEL) 8, SUSE Linux Enterprise Server (SLES) 11, SUSE Linux Enterprise Server (SLES) 12, SUSE Linux Enterpri |
