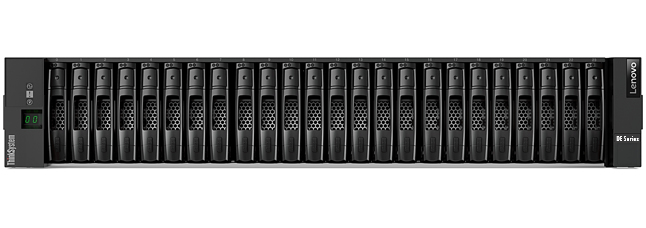

DE4000H disk array
0 TB Rack (2U) Black
Model DE4000HPart no. 7Y741003EAEAN 889488540396
31 specifications
- Weight27.6 kg
- ColourBlack
- Storage drives installedNo
- USB connectivityYes
- Device classSmall & Medium Business
- Cache size (max)64 GB
Overview
- Weight
- 27.6 kg
- Colour
- Black
- Storage drives installed
- No
- USB connectivity
- Yes
- Device class
- Small & Medium Business
- Cache size (max)
- 64 GB
- Brand
- Lenovo
- Category
- Disk Array
- Model
- DE4000H
- Part numbers
- 7Y741003EA, 7Y751001EA, 7Y751003EA
- EAN / UPC
- 889488540396, 889488526697, 889488540402, 5415247247098
- Also known as
- Lenovo DE4000H disk array 0 TB Rack (2U) Black
Specifications
31 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Supported storage drive interfaces | SAS |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Data transfer rate | 12000 Gbit/s |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
| RJ-45 ports quantity | 3 |
| Serial interface type | RJ-45 |
Design
| Specification | Value |
|---|---|
| Device class | Small & Medium Business |
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| Cooling | Yes |
| Built-in display | Yes |
Performance
| Specification | Value |
|---|---|
| Cache size (max) | 64 GB |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 449 mm |
| Depth | 553 mm |
| Height | 85 mm |
| Weight | 27.6 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717020 |
