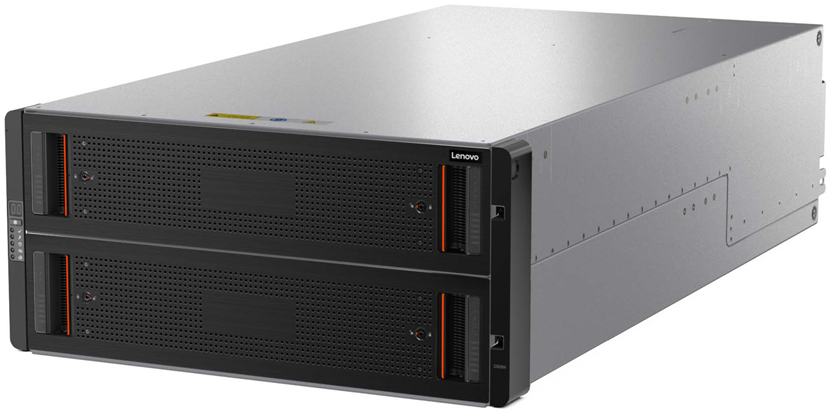

D3284 disk array
336 TB Rack (5U) Black
Model D3284Part no. 6413E2HEAN 5054444118864
32 specifications
- Weight131 kg
- ColourBlack
- Storage drives installedYes
- USB connectivityNo
- Chassis typeRack (5U)
- Power supply unit (PSU) capacity2214 W
Overview
- Weight
- 131 kg
- Colour
- Black
- Storage drives installed
- Yes
- USB connectivity
- No
- Chassis type
- Rack (5U)
- Power supply unit (PSU) capacity
- 2214 W
- Brand
- Lenovo
- Category
- Disk Array
- Model
- D3284
- Part numbers
- 6413E2H, 6413E3F, 6413E3H, 6413E4F, 6413E4H, 6413E5F +3 more
- EAN / UPC
- 5054444118864, 889488482818, 889488482832, 5054444031699
- Also known as
- Lenovo D3284 disk array 336 TB Rack (5U) Black
Specifications
32 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 84 |
| Total installed storage capacity | 336 TB |
| Supported storage drive types | HDD |
| Storage drive capacity | 4 TB |
| Storage drive interface | Serial ATA, Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | JBOD |
| Data transfer rate | 12 Gbit/s |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
| Number of SAS host ports | 3 |
| SAS host port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (5U) |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 2214 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 250 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 447 mm |
| Depth | 933 mm |
| Height | 221 mm |
| Weight | 131 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
