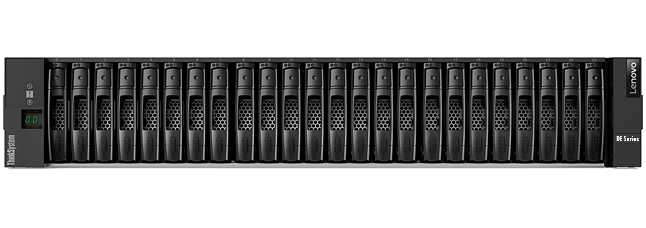

2U24 CHAS
Model 2U24 CHASPart no. 7Y75A00SWWEAN 5054444499819
30 specifications
- Weight24.6 kg
- ColourBlack
- Storage drives installedNo
- USB connectivityYes
- Device classLarge Enterprise Business
- Power supply unit (PSU) capacity913 W
Overview
- Weight
- 24.6 kg
- Colour
- Black
- Storage drives installed
- No
- USB connectivity
- Yes
- Device class
- Large Enterprise Business
- Power supply unit (PSU) capacity
- 913 W
- Brand
- Lenovo
- Category
- Disk Array
- Model
- 2U24 CHAS
- Part number
- 7Y75A00SWW
- EAN / UPC
- 5054444499819
- Also known as
- Lenovo 2U24 CHAS disk array 0 TB Rack (2U) Black
Specifications
30 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 288 TB |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
| RJ-45 ports quantity | 3 |
| Serial interface type | RJ-45 |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| Cooling | Yes |
| Built-in display | Yes |
| Certification | United States: FCC Part 15, Class A; UL 60950-1 and 62368-1 Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1 Argentina: IEC60950-1 Mexico NOM European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU Russia, Kazakhstan, Belarus: EAC China: C |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 449 mm |
| Depth | 553 mm |
| Height | 85 mm |
| Weight | 24.6 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
