Heart RAID 3705
Model IB-RD3705-CU3Part no. 61195EAN 4250078175315
28 specifications
- Weight2.91 kg
- ColourBlack
- Storage drives installedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- Device classHome & Home Office
- Power consumption (typical)100 W
Overview
- Weight
- 2.91 kg
- Colour
- Black
- Storage drives installed
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Device class
- Home & Home Office
- Power consumption (typical)
- 100 W
- Brand
- ICY BOX
- Category
- Disk Array
- Model
- IB-RD3705-CU3
- Part number
- 61195
- EAN / UPC
- 4250078175315
- Also known as
- ICY BOX Heart RAID 3705
Specifications
28 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |

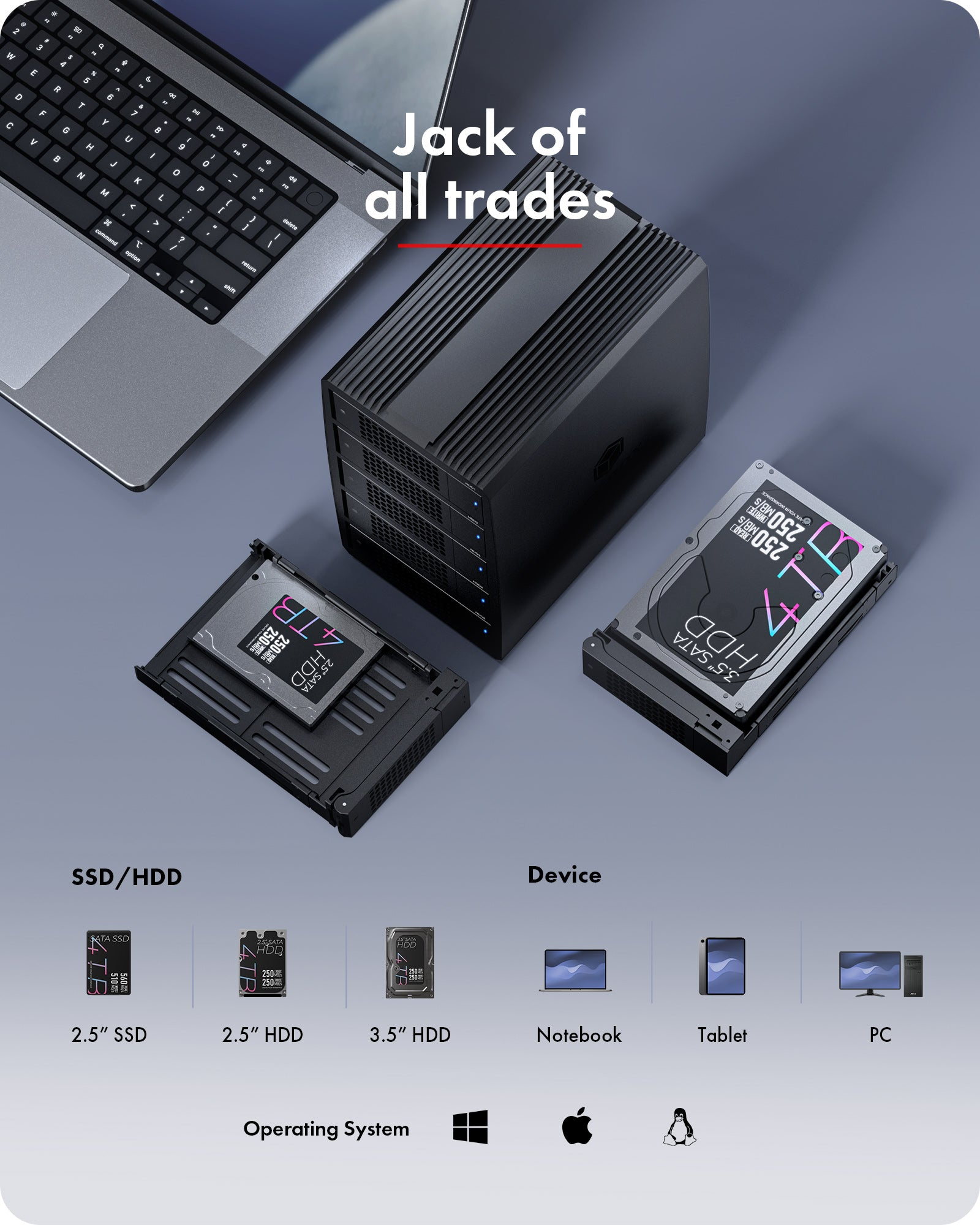

| Supported storage drive types | HDD & SSD |

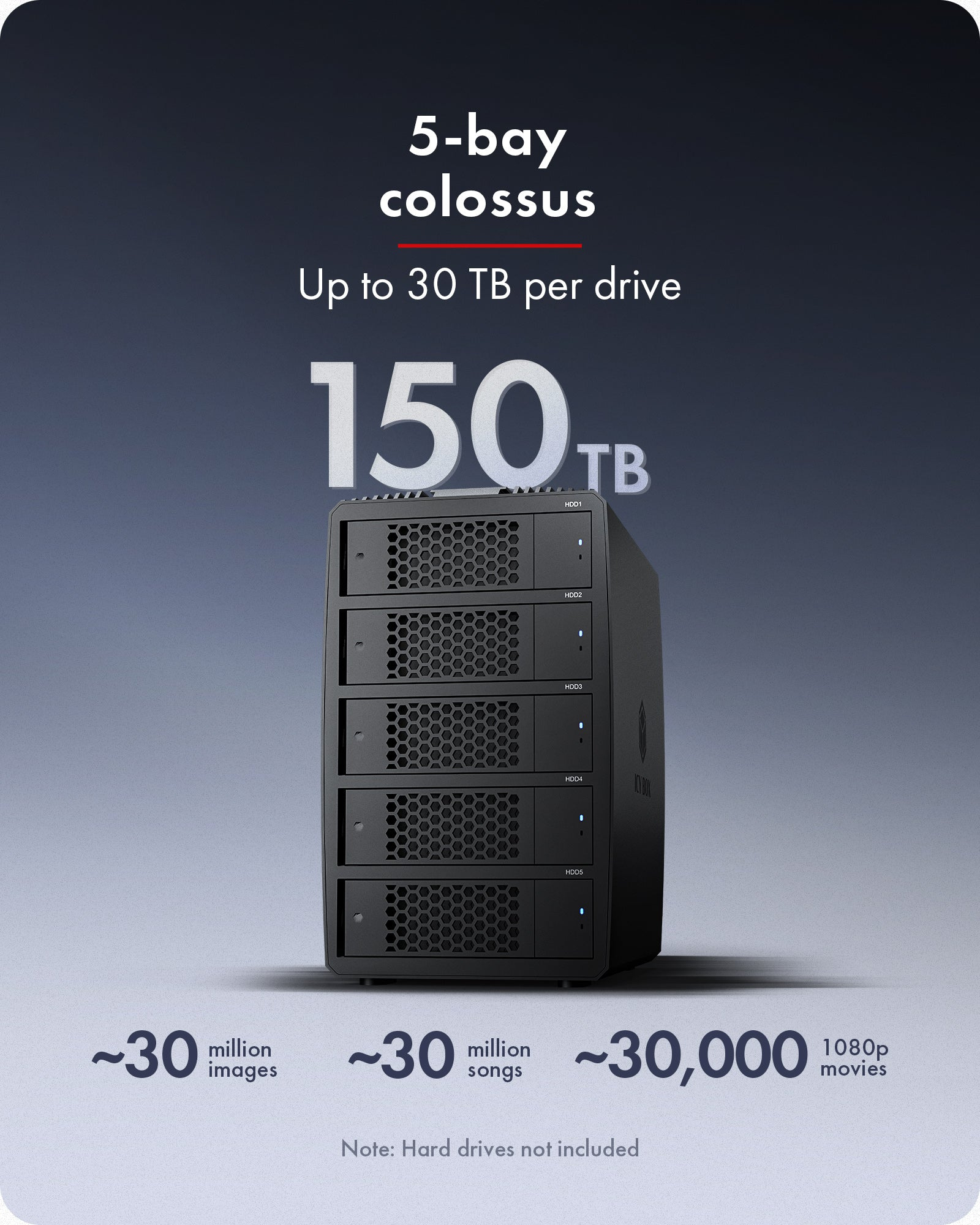

| Number of storage drives supported | 5 |
| Maximum supported storage capacity | 150 TB |
| Storage drive size | 2.5/3.5" |
| Supported storage drive interfaces | Serial ATA II |

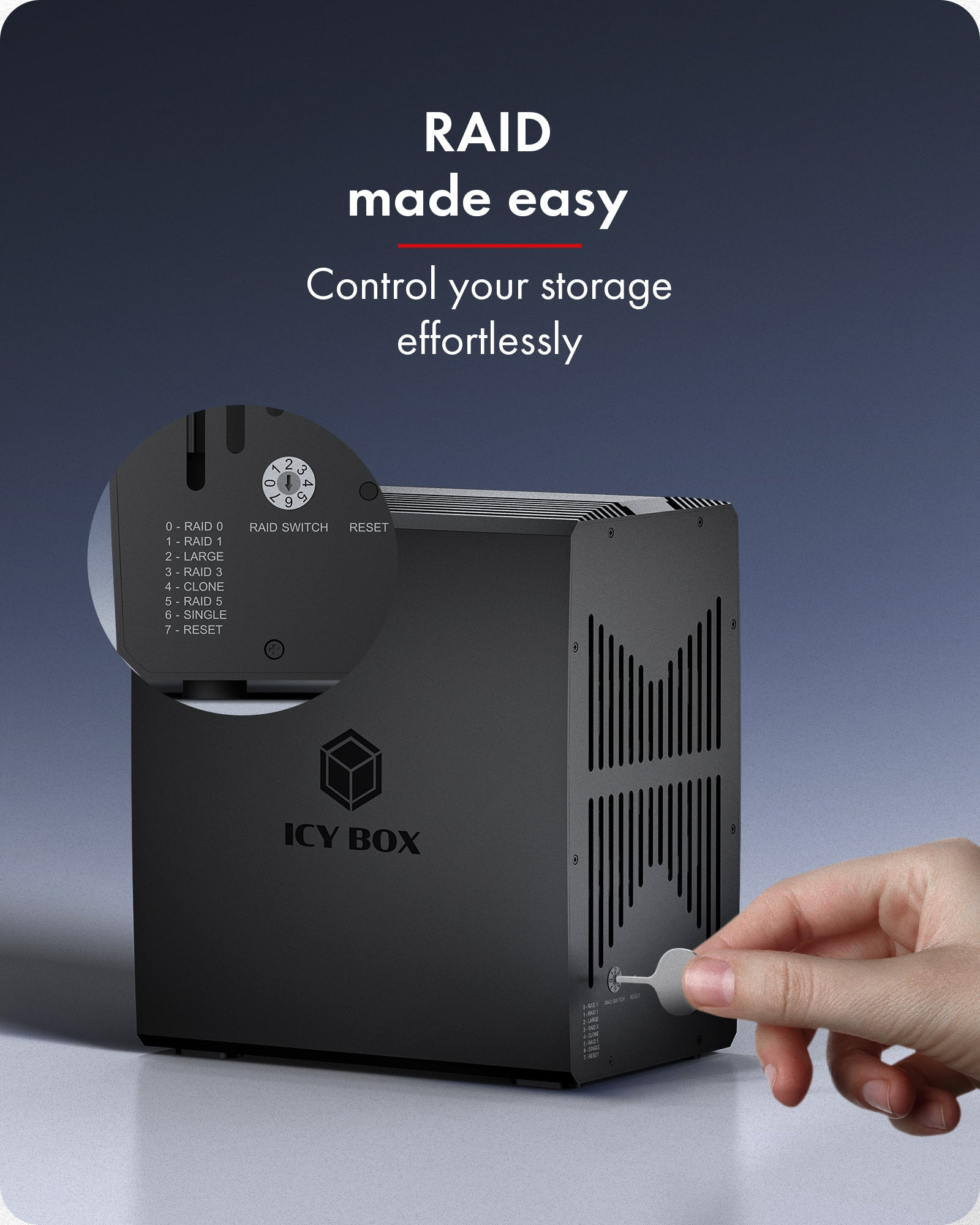

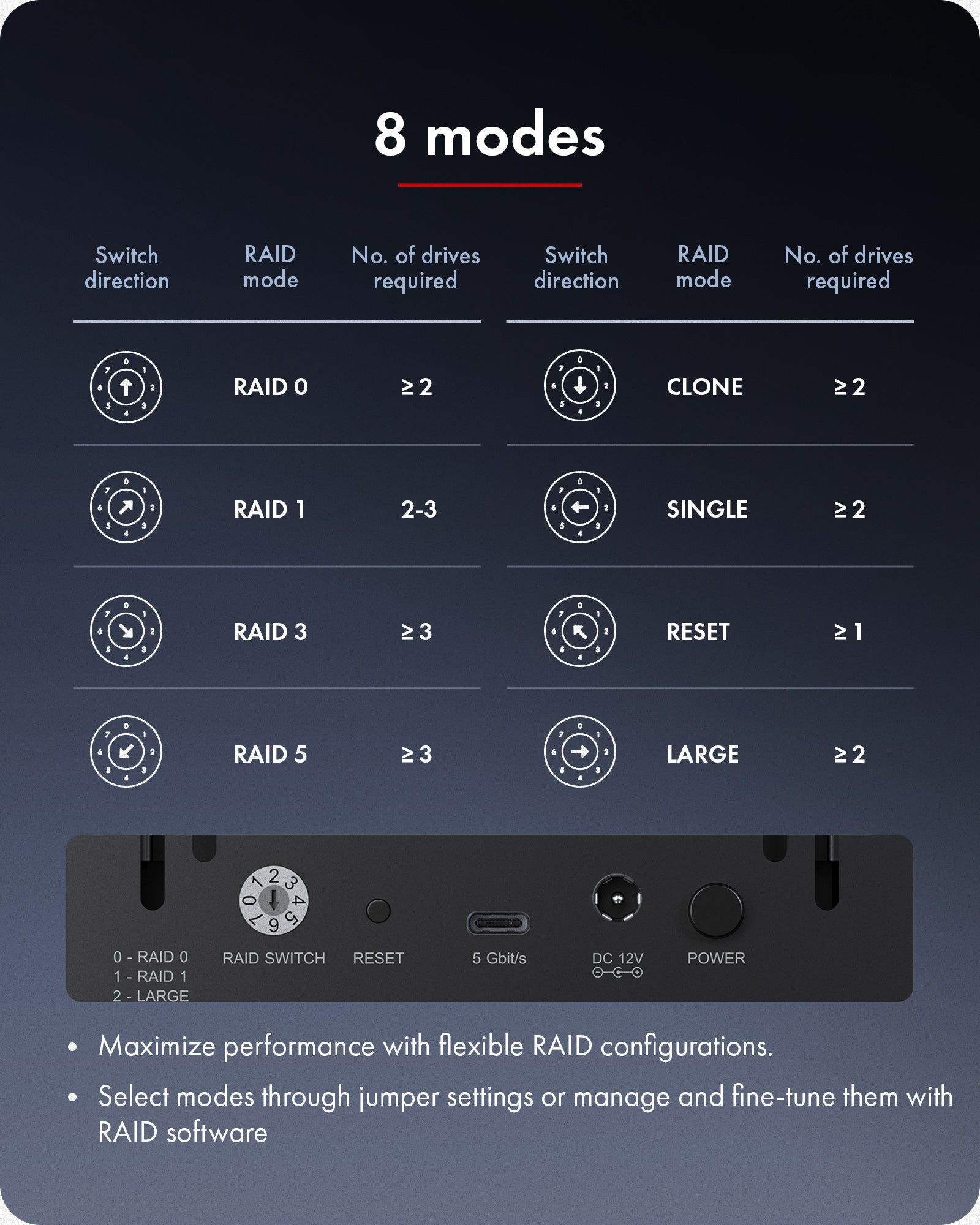

| RAID levels | 0, 1, 3, 5 |
| Data transfer rate | 5 Gbit/s |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

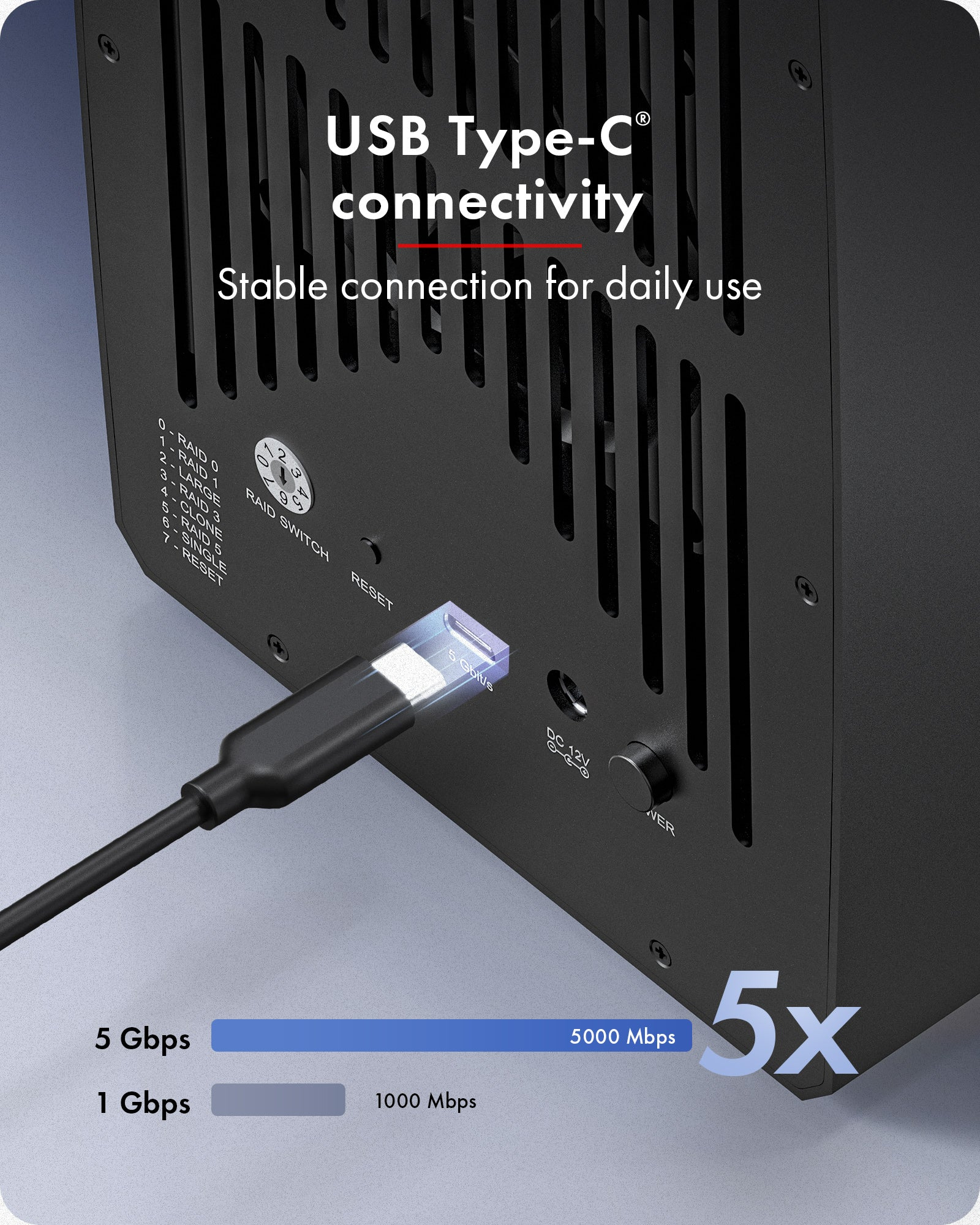

| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Device class | Home & Home Office |
| Chassis type | Desktop |
| Product colour | Black |
| LED indicators | Reset, Switch |

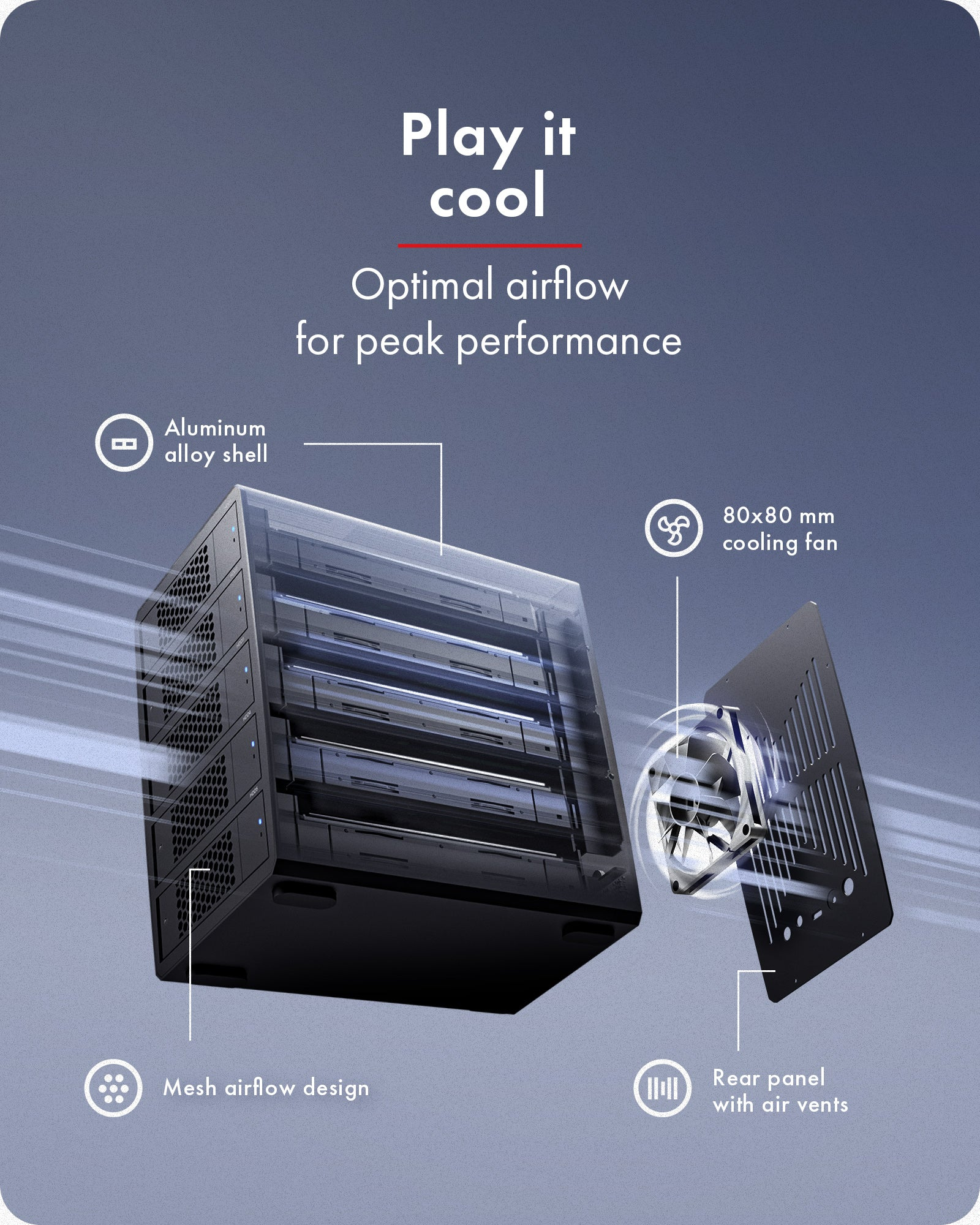

| Cooling | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 100 W |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 215 mm |
| Height | 200 mm |
| Weight | 2.91 kg |
