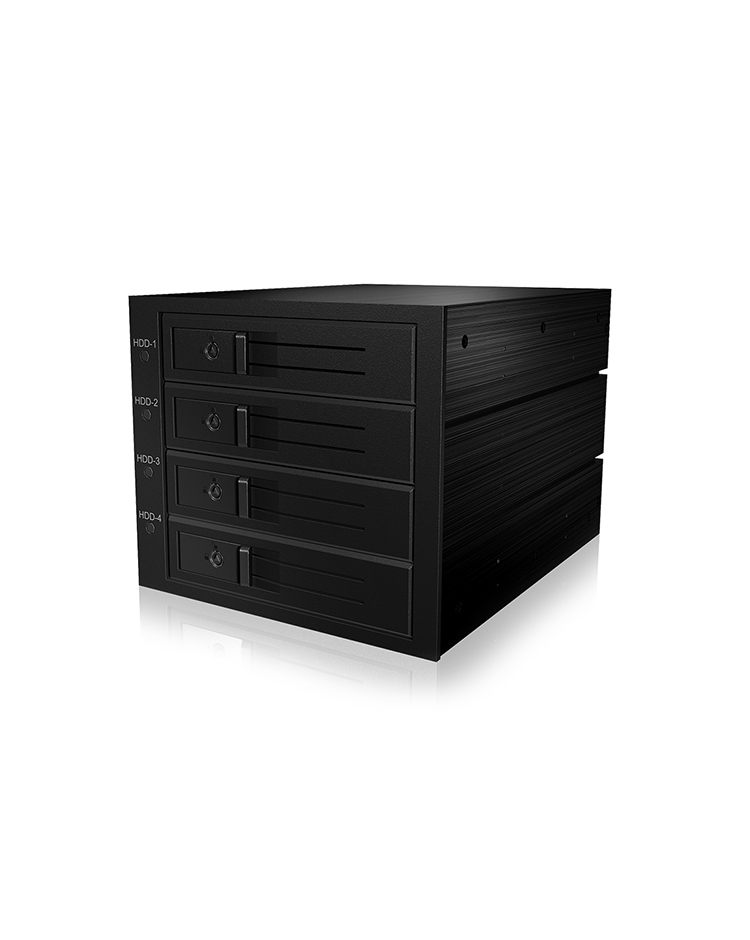

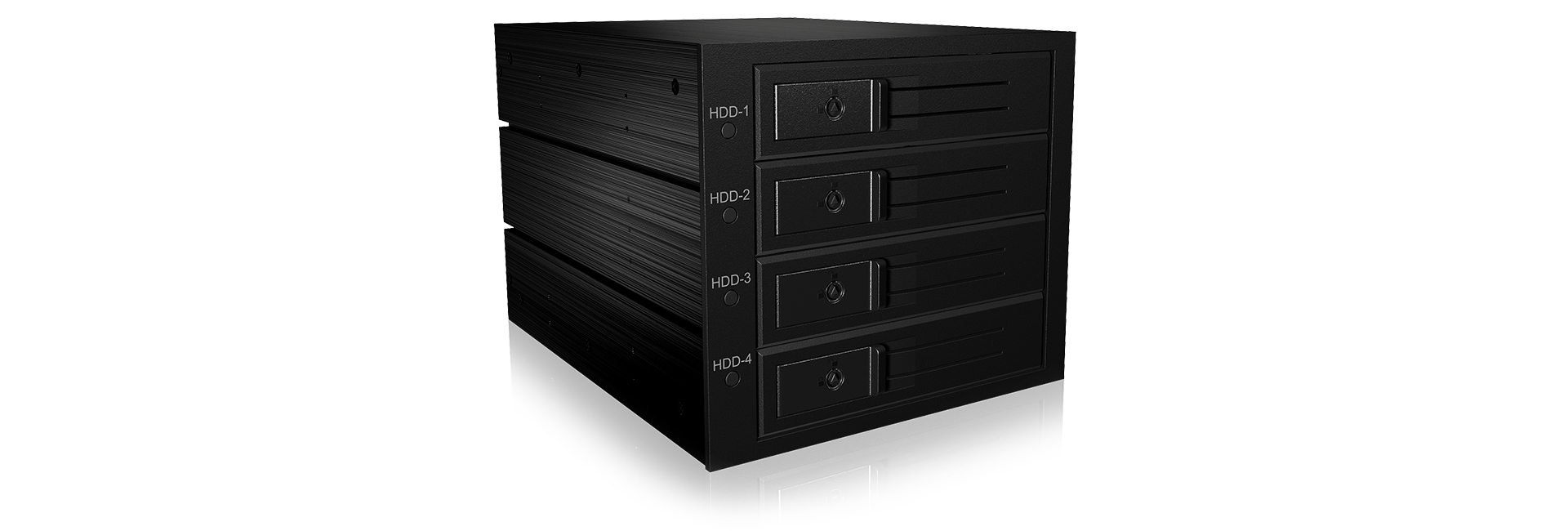

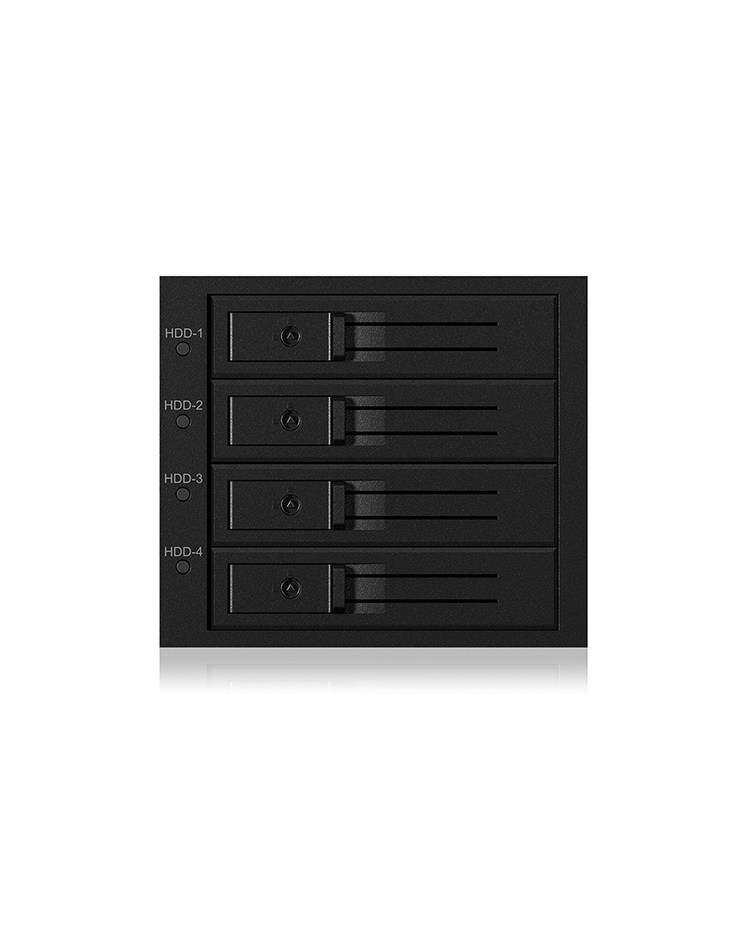

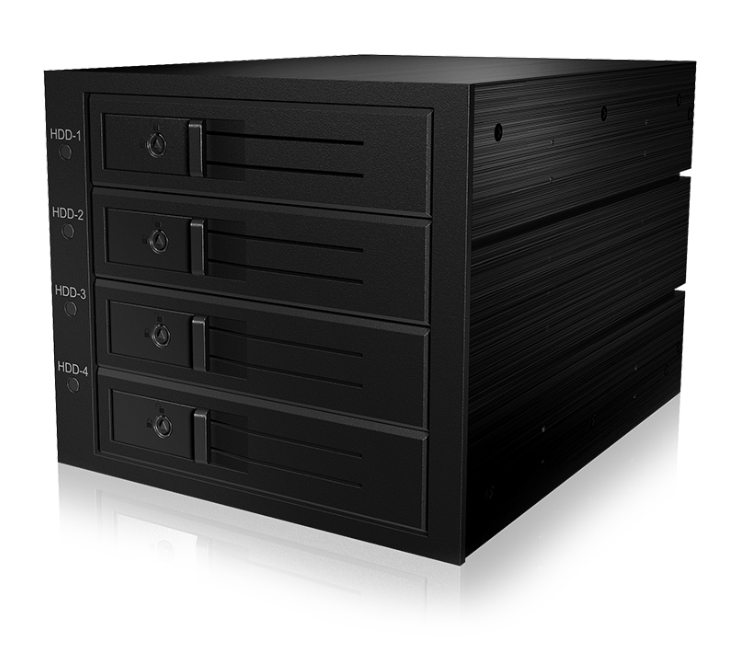

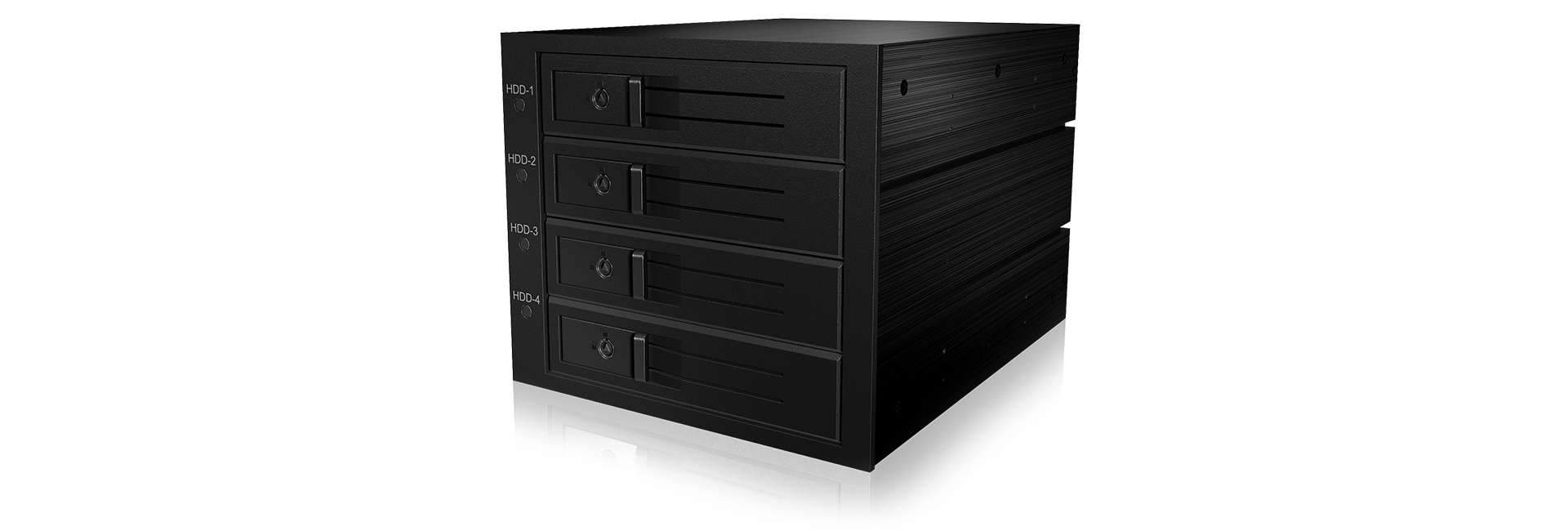

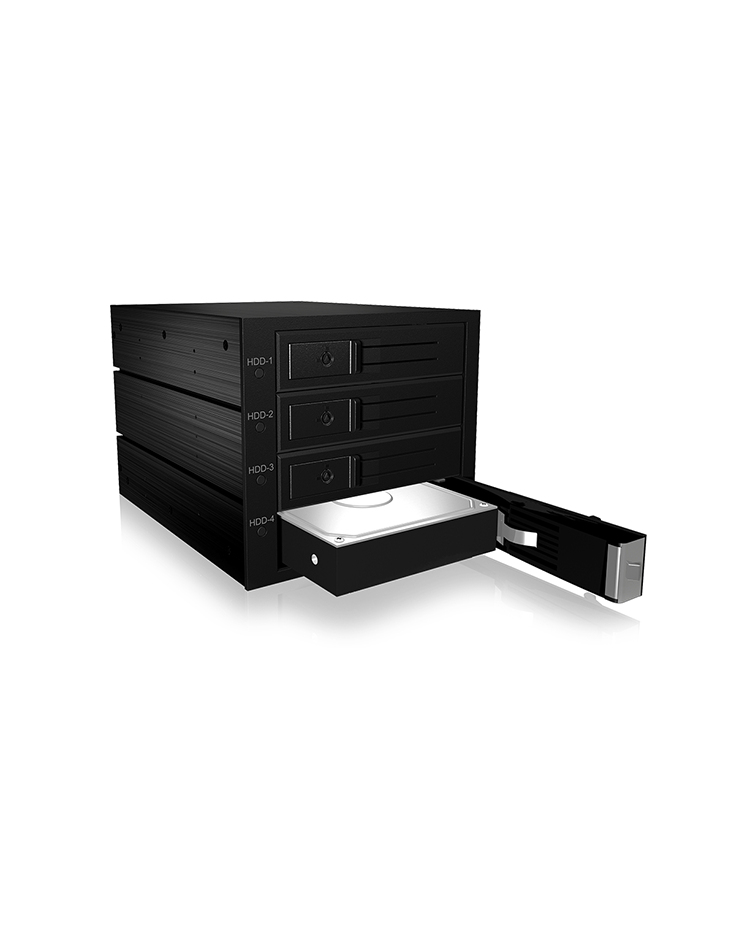

IB-564SAS-12G disk array Black
Model IB-564SAS-12GPart no. 60610EAN 4250078169529
40 specifications
- Weight1.79 kg
- ColourBlack
- Storage drives installedNo
- Device classHome & Home Office
- Mac compatibilityYes
- Width148 mm
Overview
- Weight
- 1.79 kg
- Colour
- Black
- Storage drives installed
- No
- Device class
- Home & Home Office
- Mac compatibility
- Yes
- Width
- 148 mm
- Brand
- ICY BOX
- Category
- Disk Array
- Model
- IB-564SAS-12G
- Part number
- 60610
- EAN / UPC
- 4250078169529
- Also known as
- ICY BOX IB-564SAS-12G disk array Black
Specifications
40 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD |
| Number of storage drives supported | 4 |
| Supported storage drive interfaces | SAS, SAS-2, SAS-3, Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 3.5" |
| Data transfer rate | 12 Gbit/s |

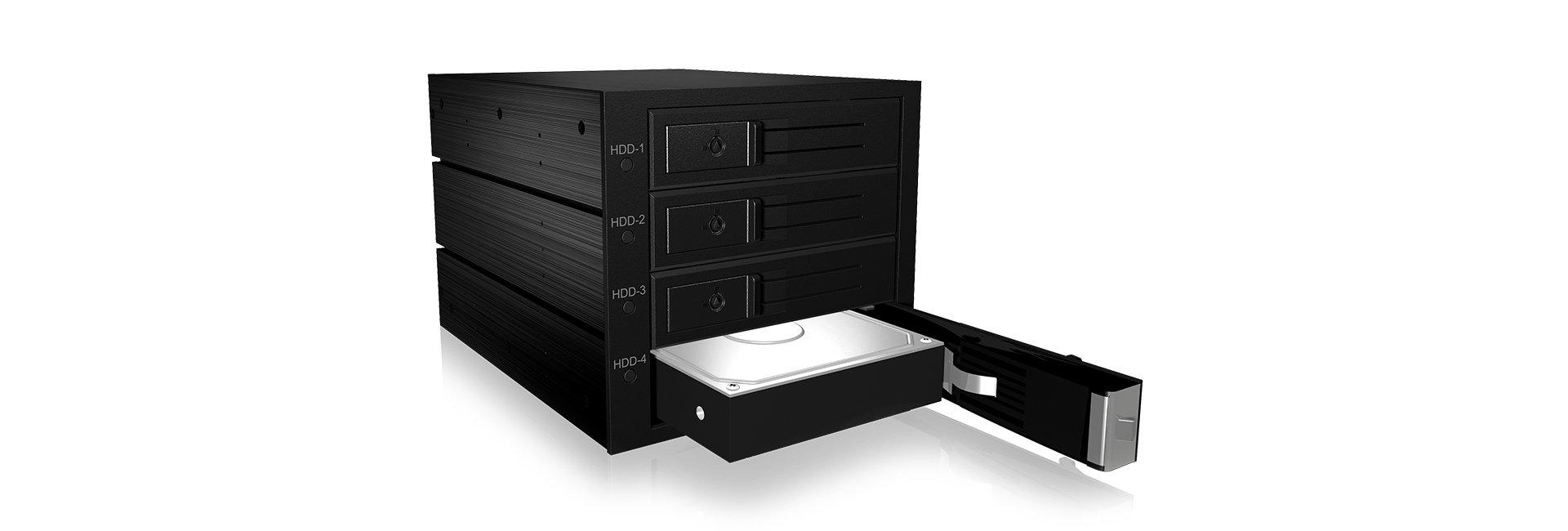

| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |

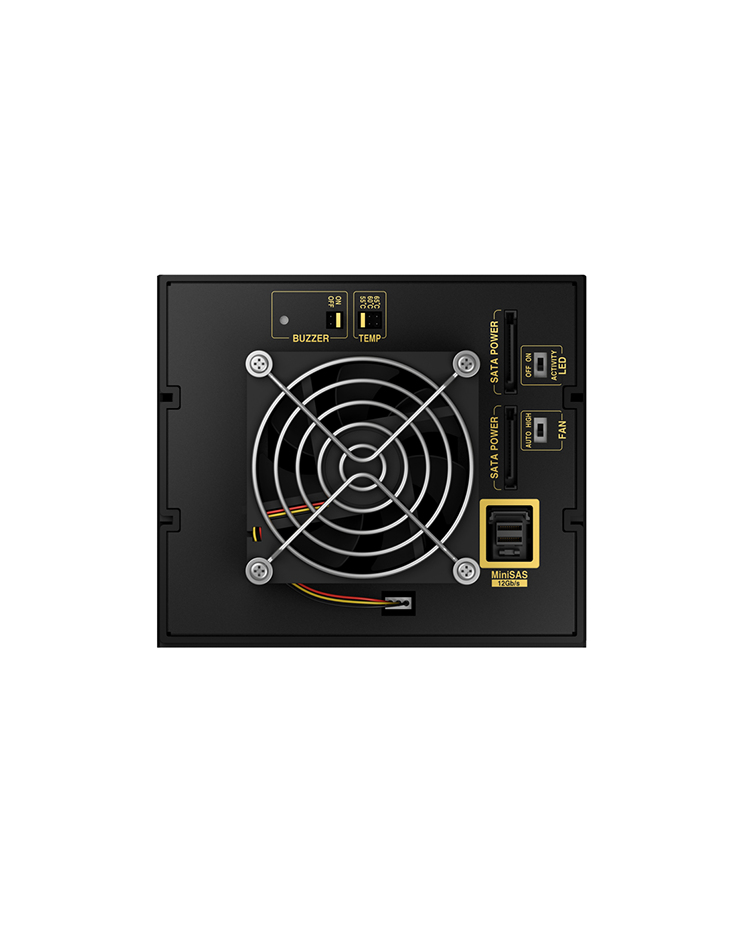

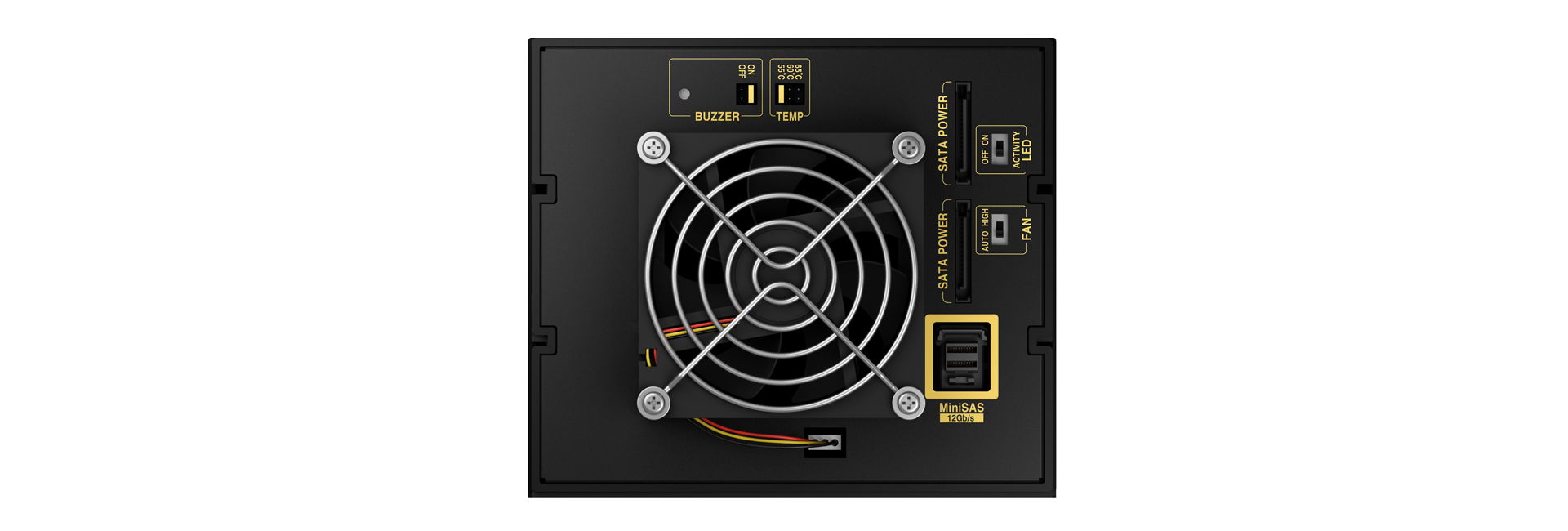

| Mini-SAS host port | Yes |
| Number of SAS host ports | 4 |
| Number of mini-SAS host ports | 1 |
| SATA host port | Yes |
| Number of SATA power connectors | 1 |
| SATA power connector type | SATA 15-pin |
Design
| Specification | Value |
|---|---|
| Device class | Home & Home Office |
| Housing material | Aluminium |
| Internal | No |
| Product colour | Black |
| LED indicators | Access, Error, Power |
| Cooling | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Key lock | Yes |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 148 mm |
| Depth | 220 mm |
| Height | 127 mm |
| Weight | 1.79 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 252 mm |
| Package depth | 162 mm |
| Package height | 180 mm |
| Package weight | 2.33 kg |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 84718000 |
| Products per master (outer) case | 6 pc(s) |
