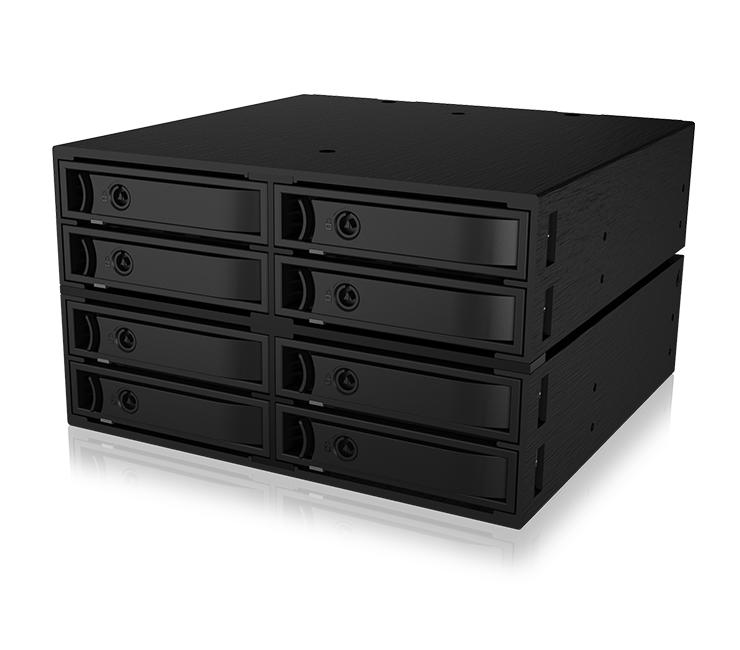

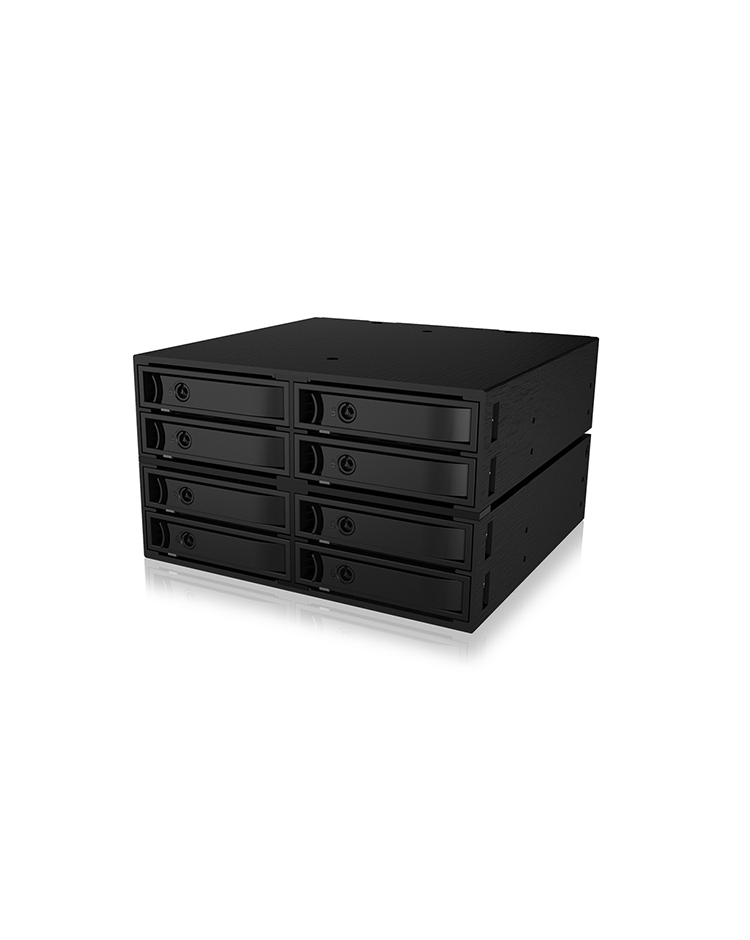

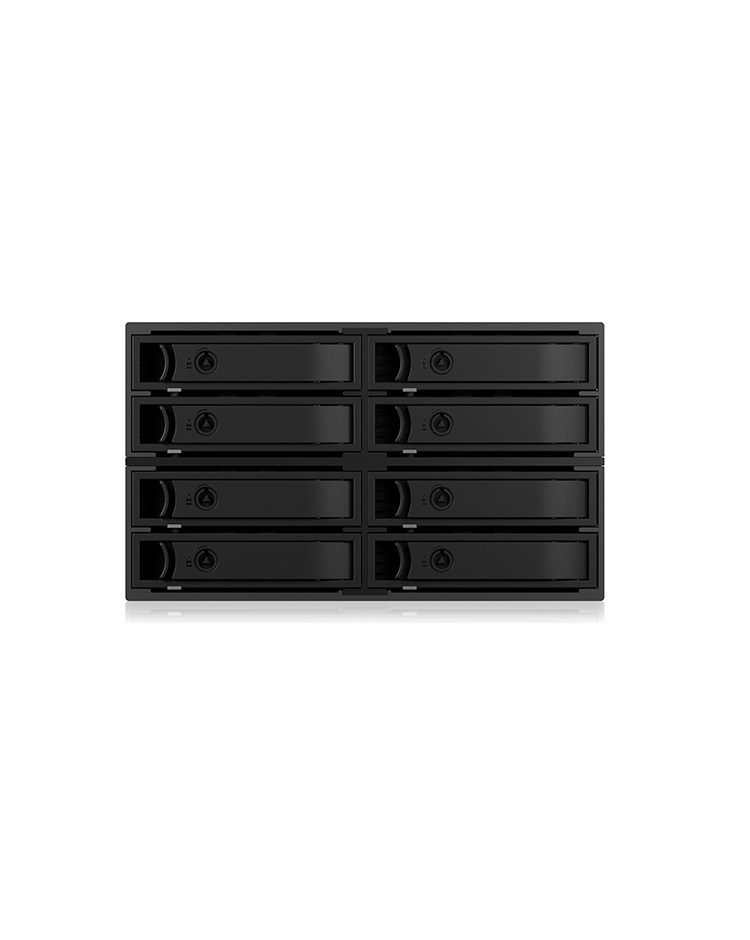

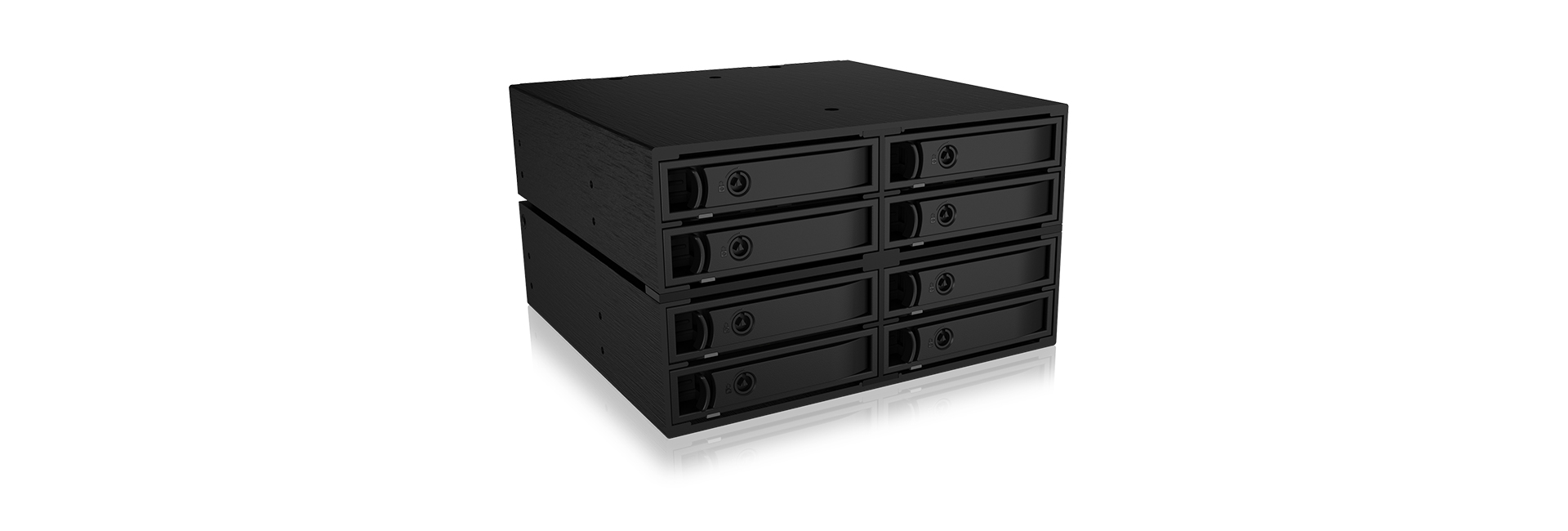

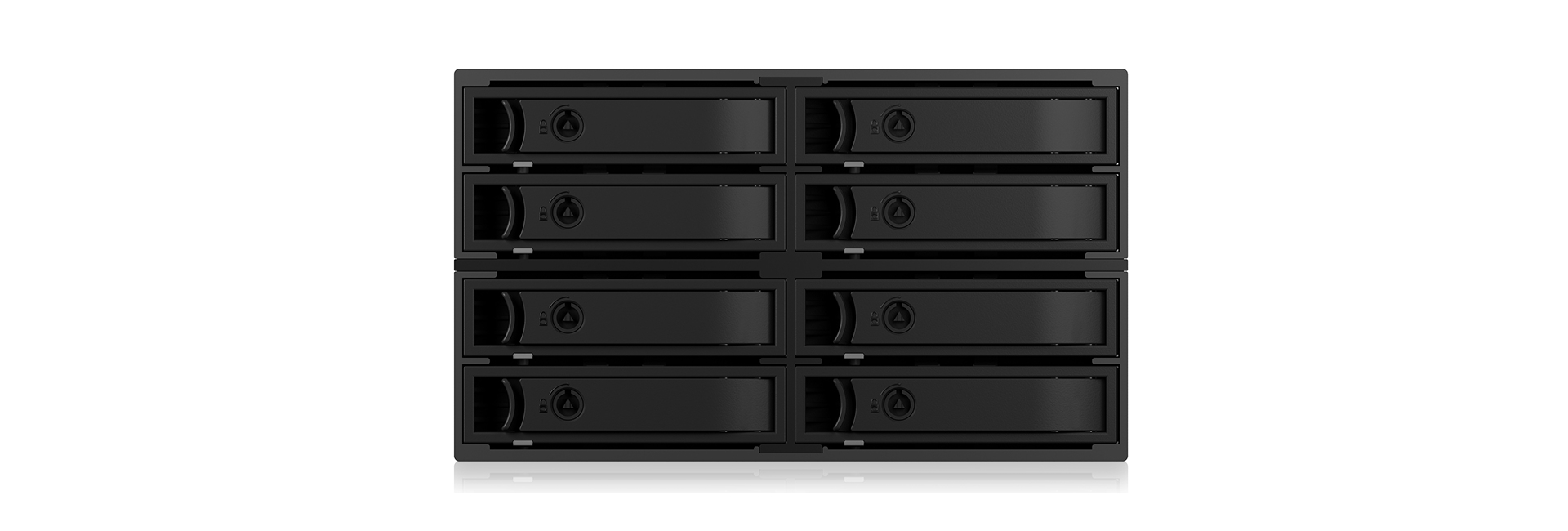

IB-2281SAS-12G disk array Black
Model IB-2281SAS-12GPart no. 60609EAN 4250078169512
38 specifications
- Weight1.52 kg
- ColourBlack
- Storage drives installedNo
- Device classHome & Home Office
- Mac compatibilityYes
- Width145 mm
Overview
- Weight
- 1.52 kg
- Colour
- Black
- Storage drives installed
- No
- Device class
- Home & Home Office
- Mac compatibility
- Yes
- Width
- 145 mm
- Brand
- ICY BOX
- Category
- Disk Array
- Model
- IB-2281SAS-12G
- Part number
- 60609
- EAN / UPC
- 4250078169512
- Also known as
- ICY BOX IB-2281SAS-12G disk array Black
Specifications
38 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 8 |
| Supported storage drive interfaces | SAS, Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Data transfer rate | 12 Gbit/s |

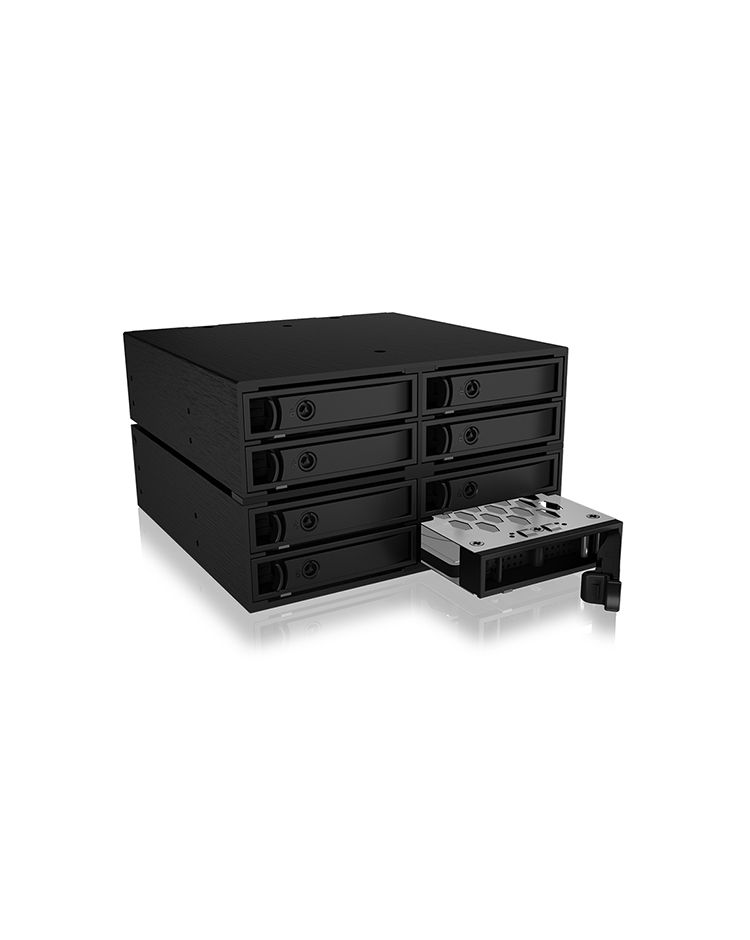

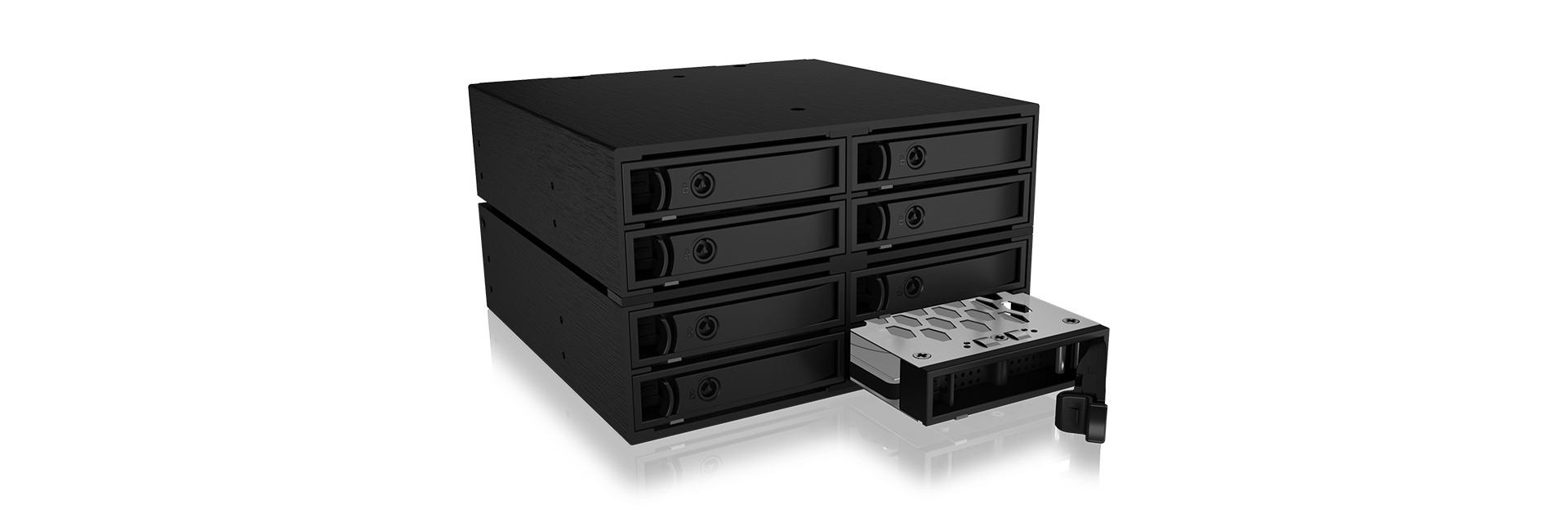

| Hot-swap drive bays | Yes |

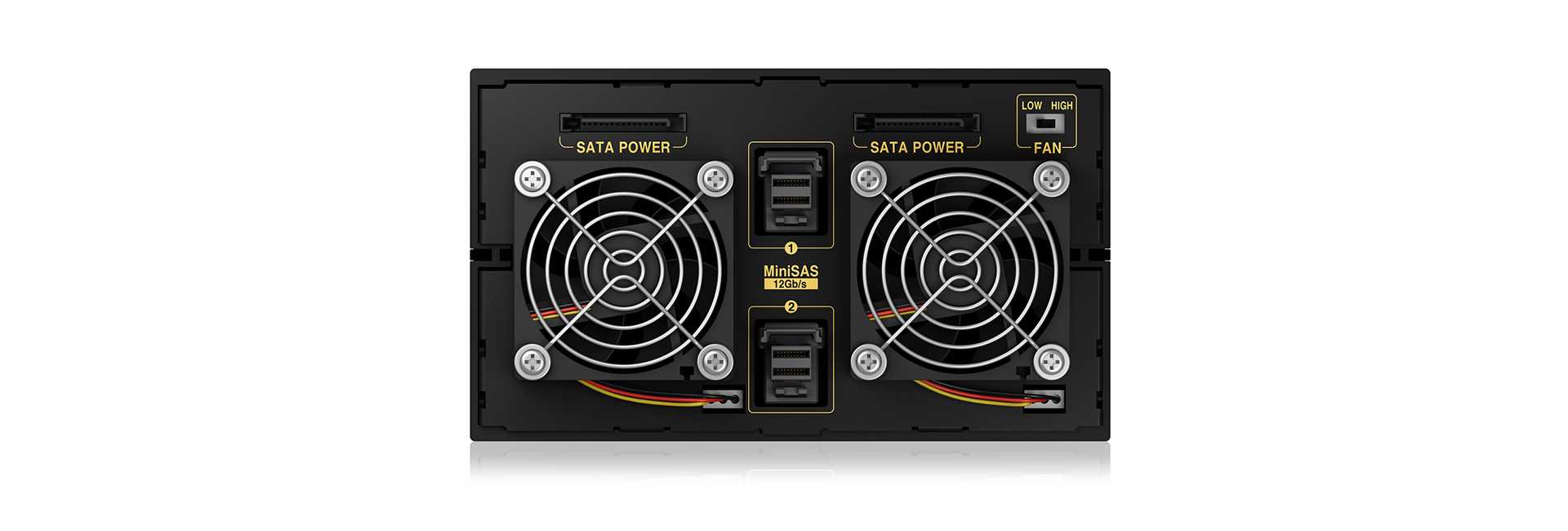

Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |

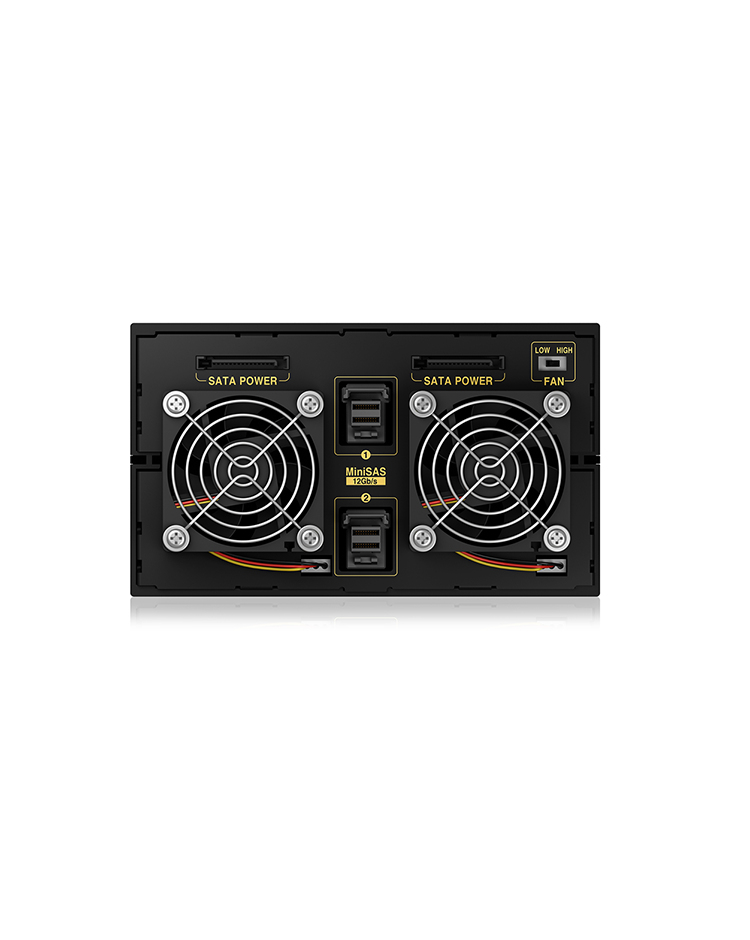

| Mini-SAS host port | Yes |
| Number of mini-SAS host ports | 2 |
| SATA host port | Yes |
| Number of SATA power connectors | 2 |
| SATA power connector type | SATA 15-pin |
Design
| Specification | Value |
|---|---|
| Device class | Home & Home Office |
| Housing material | Aluminium, Metal |
| Product colour | Black |
| LED indicators | Access, Error, Power |
| Cooling | Yes |
| Number of fans | 2 fan(s) |
| Fan diameter | 5 cm |
| Key lock | Yes |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 163 mm |
| Height | 85 mm |
| Weight | 1.52 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 213 mm |
| Package depth | 185 mm |
| Package height | 131 mm |
| Package weight | 2.05 kg |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 84718000 |
| Products per master (outer) case | 6 pc(s) |
