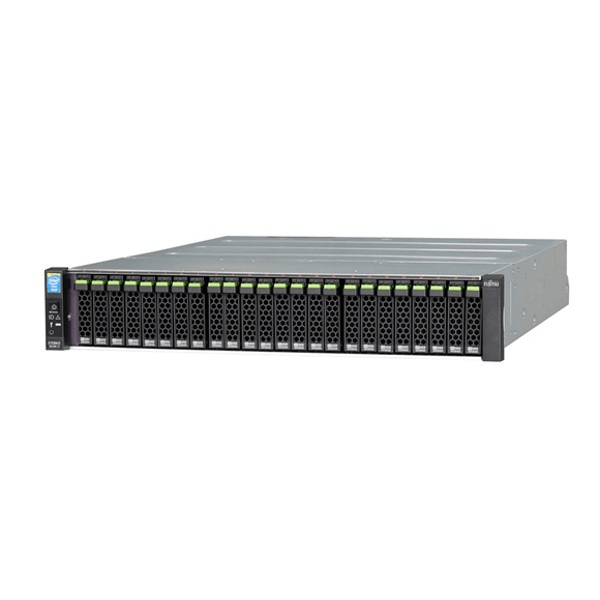

ETERNUS DX200 S3
Model ETERNUS DX200 S3Part no. VFY:DX230XF560IN
28 specifications
- Weight35 kg
- ColourBlack
- Storage drives installedYes
- Host ports4
- Device classSmall & Medium Business
- AC input voltage100-240 V
Overview
- Weight
- 35 kg
- Colour
- Black
- Storage drives installed
- Yes
- Host ports
- 4
- Device class
- Small & Medium Business
- AC input voltage
- 100-240 V
- Brand
- Fujitsu
- Category
- Disk Array
- Model
- ETERNUS DX200 S3
- Part numbers
- VFY:DX230XF560IN, VFY:DX230XF570IN
- Also known as
- Fujitsu ETERNUS DX200 S3 disk array 7.2 TB Rack (2U) Black
Specifications
28 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 24 |
| Total installed storage capacity | 7.2 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 2112 TB |
| Storage drive capacity | 300 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | 0, 1, 1+0, 5+0, 5, 6 |
Ports & interfaces
| Specification | Value |
|---|---|
| Host ports | 4 |
Design
| Specification | Value |
|---|---|
| Device class | Small & Medium Business |
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| Supported network protocols | SNMP, SMI-S 1.6, iSCSI |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64 |
| Windows operating systems supported | Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vist |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 35 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 8 - 80% |
| Operating altitude | 0 - 3000 m |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
