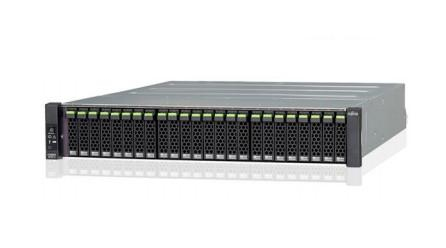

ETERNUS DX100 S3
Model ETERNUS DX100 S3Part no. VFY:DX130XF51E0INEAN 4053026752930
24 specifications
- Weight35 kg
- ColourBlack
- Installed storage drive typeHDD
- USB connectivityNo
- Chassis typeRack (2U)
- Number of power supply units1
Overview
- Weight
- 35 kg
- Colour
- Black
- Installed storage drive type
- HDD
- USB connectivity
- No
- Chassis type
- Rack (2U)
- Number of power supply units
- 1
- Brand
- Fujitsu
- Category
- Disk Array
- Model
- ETERNUS DX100 S3
- Part numbers
- VFY:DX130XF51E0IN, VFY:DX130XF52E0IN, VFY:DX130XF53E0IN, VFY:DX130XF540IN, VFY:DX130XF55E0IN, VFY:DX130XF560IN +11 more
- EAN / UPC
- 4053026752930, 4053026752961, 4057185589178, 4058154090244 +6 more
- Also known as
- Fujitsu ETERNUS DX100 S3 disk array 6 TB Rack (2U) Black
Specifications
24 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Installed storage drive type | HDD |
| Number of storage drives installed | 10 |
| Total installed storage capacity | 6 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 144 |
| Storage drive size | 2.5" |
| RAID levels | 0, 1, 1+0, 5, 5+0, 6 |
| Data transfer rate | 8 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
| RJ-45 ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Certification | UL 60950-1, CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST-R CNS 13438, FCC CFR 47 class A, ICES 003 Class A, EN 55022 Class A, VCCI Class A, AS/NZS CISPR 22 Class A CB, CE, C-Tick, FCC, GOST, GS, VCCI |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 645 mm |
| Height | 88 mm |
| Weight | 35 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 8 - 80% |
| Operating altitude | 0 - 3000 m |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
