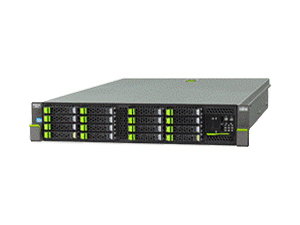

Fujitsu ETERNUS CS800 S4
Model ETERNUS CS800 S4Part no. ETCS8-ENTRY1-P40
20 specifications
- Weight25 kg
- ColourBlack
- Installed storage drive typeHDD
- RJ-45 ports quantity1
- Chassis typeRack (2U)
- AC input voltage200-240 V
Overview
- Weight
- 25 kg
- Colour
- Black
- Installed storage drive type
- HDD
- RJ-45 ports quantity
- 1
- Chassis type
- Rack (2U)
- AC input voltage
- 200-240 V
- Brand
- Fujitsu
- Category
- Disk Array
- Model
- ETERNUS CS800 S4
- Part number
- ETCS8-ENTRY1-P40
- Also known as
- Fujitsu ETERNUS CS800 S4 disk array Rack (2U) Black
Specifications
20 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Installed storage drive type | HDD |
| Supported storage drive types | HDD |
| Number of storage drives supported | 16 |
| Maximum supported storage capacity | 4.8 TB |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Networking standards | IEEE 802.3ab |
| Certification | UL60950-1, CSA-C22.2 No. 60950-1, EN60950-1, IEC60950-1, GOST-R, CNS 13438(C6357) Class A, FCC Part-15 Class A, ICES 003 class A, BSMI, C-Tick, VCCI Class A, CNS 13438(C6357) Class A, AS/NZ CISPR 22 Class A, EN55022 Class A, EN 55024 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 770 mm |
| Height | 88.9 mm |
| Weight | 25 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 15 - 35 °C |
| Storage relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
