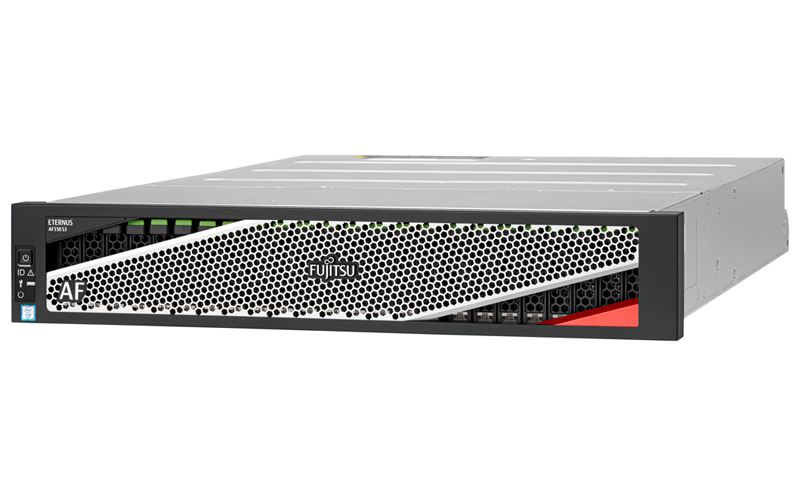

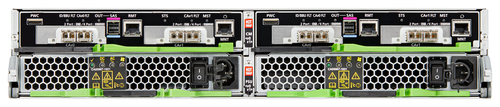

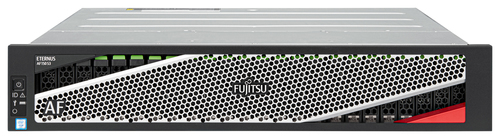

ETERNUS AF150 S3
Model ETERNUS AF150 S3Part no. ET153SAFEAN 4063872309820
21 specifications
- Weight35 kg
- Storage drives installedYes
- USB connectivityNo
- Device classSmall & Medium Business
- Maximum number of LUNs3072
- Width482 mm
Overview
- Weight
- 35 kg
- Storage drives installed
- Yes
- USB connectivity
- No
- Device class
- Small & Medium Business
- Maximum number of LUNs
- 3072
- Width
- 482 mm
- Brand
- Fujitsu
- Category
- Disk Array
- Model
- ETERNUS AF150 S3
- Part numbers
- ET153SAF, VFY:AF153SC202IN, VFY:AF153SC412IN, VFY:AF153SC102IN, VFY:AF153SC312IN, VFY:AF153SC212IN +1 more
- EAN / UPC
- 4063872309820, 4063872013383, 4063872309837, 4063872013406 +8 more
- Also known as
- Fujitsu ETERNUS AF150 S3 disk array 3.84 TB Rack (2U)
Specifications
21 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | SSD |
| Number of storage drives installed | 2 |
| Total installed storage capacity | 3.84 TB |
| Supported storage drive types | SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 92 TB |
| Storage drive interface | Serial Attached SCSI (SAS) III |
| Storage drive size | 2.5" |
| RAID levels | 0, 1, 1+0, 5, 5+0, 6 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
Design
| Specification | Value |
|---|---|
| Device class | Small & Medium Business |
| Chassis type | Rack (2U) |
| Certification | FCC Part-15 Class A, ICES-003 Class A, EN 55022 (2010), +AI, VCCI Class A, AS/NZS CISPR 22 Class A, CNS13438 (C6357) Class A, KN22 |
Performance
| Specification | Value |
|---|---|
| Maximum number of LUNs | 3072 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 645 mm |
| Height | 88 mm |
| Weight | 35 kg |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717020 |
