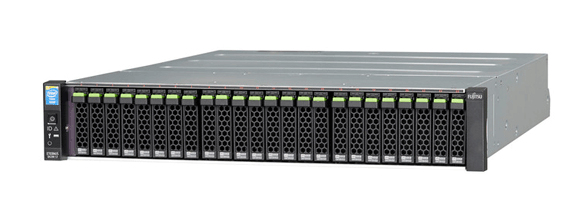

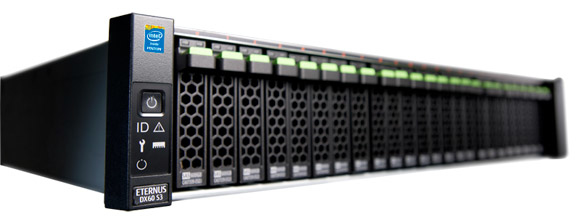

Fujitsu 60 S3
Model 60 S3Part no. VFY:DX630XF010INEAN 4053026817554
34 specifications
- Noise49 dB
- Weight35 kg
- ColourBlack
- Storage drives installedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
- Chassis typeRack (2U)
Overview
- Noise
- 49 dB
- Weight
- 35 kg
- Colour
- Black
- Storage drives installed
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- Chassis type
- Rack (2U)
- Brand
- Fujitsu
- Category
- Disk Array
- Model
- 60 S3
- Part numbers
- VFY:DX630XF010IN, VFY:DX630XF010IN?3YNBD, VFY:DX630XF010IN?5YNBD
- EAN / UPC
- 4053026817554, 4058154034842
- Also known as
- Fujitsu 60 S3 disk array 0 TB Rack (2U) Black
Specifications
34 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 24 |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| RAID levels | 0, 1, 1+0, 5, 5+0, 6 |
| Data transfer rate | 8 Gbit/s |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Noise level | 49 dB |
| Supported network protocols | SNMP (1, 2C, 3), SMI-S 1.6 |
| Certification | UL 60950-1, CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST-R CNS 13438, FCC CFR 47 class A, ICES 003 Class A, EN 55022 Class A, VCCI Class A, AS/NZS CISPR 22 Class A CB, CE, C-Tick, FCC, EAC, GS, VCCI |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 670 W |
| Number of power supply units | 1 |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64 |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 670 mm |
| Height | 88 mm |
| Weight | 35 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 8 - 80% |
| Operating altitude | 0 - 3000 m |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
What people say
Reviews & ratings
Fujitsu 60 S3
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu 60 S3
All disk array comparisons- Fujitsu 60 S3 vsFujitsu DX1/200 S3Compare specs
- Fujitsu 60 S3 vsFujitsu ETERNUS DX 60 S3Compare specs
- Fujitsu 60 S3 vsFujitsu PY SX05 S1 SASCompare specs
- Fujitsu 60 S3 vsFujitsu ETERNUS CS800 S4Compare specs

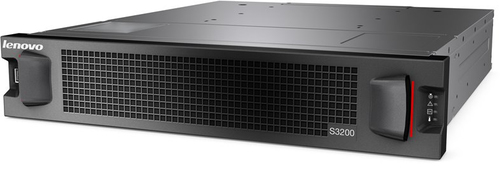

- Fujitsu 60 S3 vsLenovo S3200 SFFCompare specs
