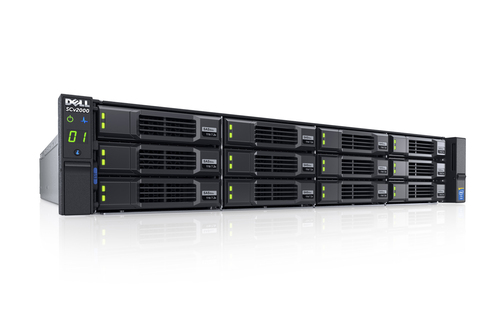

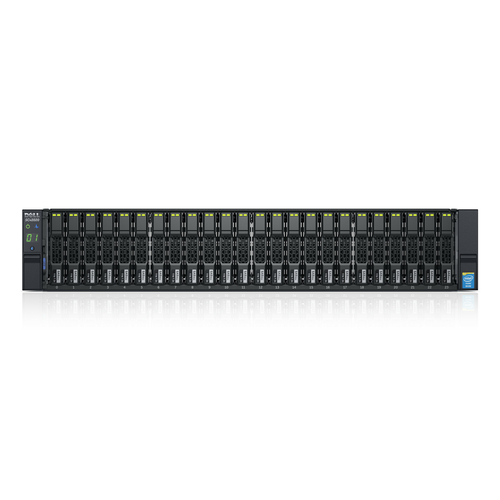

Dell SCv2000 disk array
24 TB Rack (2U) Black, Grey
Model SCv2000Part no. CMLSCV200002EAN 5397063769513
33 specifications
- Weight28.9 kg
- ColourBlack, Grey
- Storage drives installedYes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
- Chassis typeRack (2U)
- Power supply unit (PSU) capacity580 W
Overview
- Weight
- 28.9 kg
- Colour
- Black, Grey
- Storage drives installed
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Chassis type
- Rack (2U)
- Power supply unit (PSU) capacity
- 580 W
- Brand
- Dell
- Category
- Disk Array
- Model
- SCv2000
- Part numbers
- CMLSCV200002, CMLSCV200003, CMLSCV200004, CMLSCV200001, 2000-2567, 2000-9483 +3 more
- EAN / UPC
- 5397063769513, 5397184012567, 5397063769483, 5397063769490 +1 more
- Also known as
- DELL SCv2000 disk array 24 TB Rack (2U) Black, Grey
Specifications
33 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 12 |
| Total installed storage capacity | 24 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Storage drive capacity | 2 TB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| RAID levels | 5, 6, 10 |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Host ports | 2 |
| Remote management port | RJ-45 (Gigabit) |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Supported network protocols | iSCSI |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 580 W |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 576 mm |
| Height | 87.9 mm |
| Weight | 28.9 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 57 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | -300 - 12192 m |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | CMLSCv200001 |
