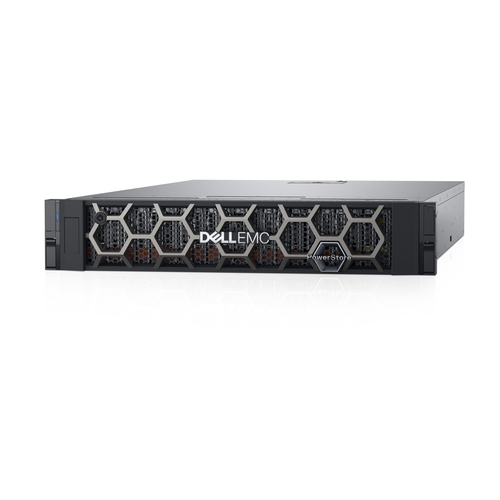

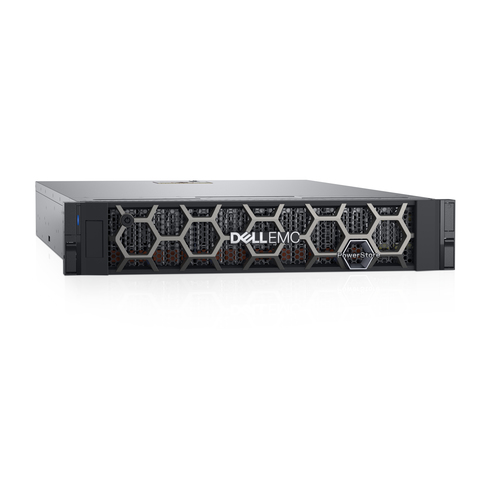

PowerStore 500T
Model PowerStore 500TPart no. PS500Q3FY22ANEAN 884116418894
28 specifications
- Weight3.6 kg
- ColourBlack
- Storage drives installedYes
- Device classLarge Enterprise Business
- Power supply unit (PSU) capacity1450 W
- Width444.5 mm
Overview
- Weight
- 3.6 kg
- Colour
- Black
- Storage drives installed
- Yes
- Device class
- Large Enterprise Business
- Power supply unit (PSU) capacity
- 1450 W
- Width
- 444.5 mm
- Brand
- Dell
- Category
- Disk Array
- Model
- PowerStore 500T
- Part numbers
- PS500Q3FY22AN, PS500Q3FY22SO, PS500Q4FY22
- EAN / UPC
- 884116418894, 884116418214, 884116418344
- Also known as
- DELL PowerStore 500T disk array 13440 TB Rack (2U) Black
Specifications
28 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | SSD |
| Number of storage drives installed | 7 |
| Total installed storage capacity | 13440 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 25 |
| Storage drive size | 2.5" |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| Rack rails | Yes |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 1450 W |
| Number of power supply units | 2 |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 20 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444.5 mm |
| Depth | 795 mm |
| Height | 86.4 mm |
| Weight | 3.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
