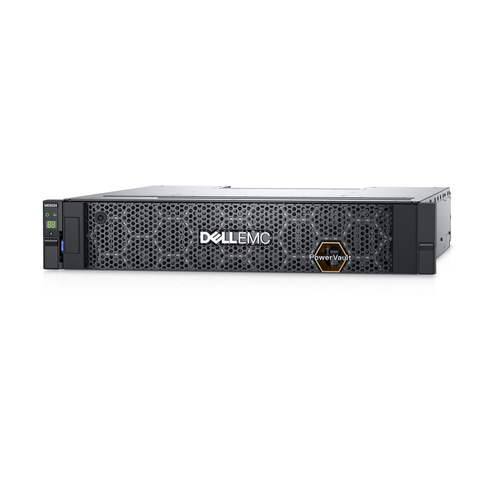

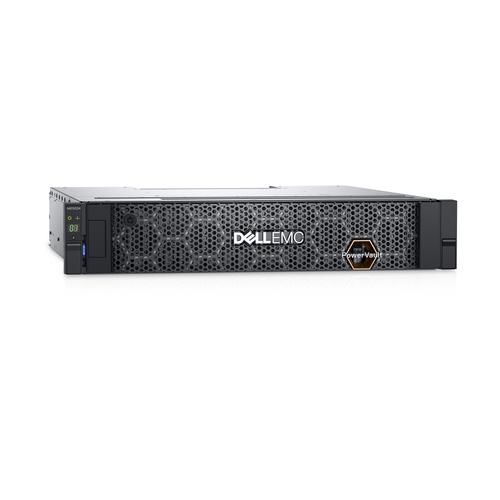

PowerVault ME5024 disk array
15.36 TB Rack (2U) Black
Model ME5024Part no. ME5024AFAEAN 884116432227
26 specifications
- ColourBlack
- Storage drives installedYes
- SFP+ module slots quantity8
- Device classLarge Enterprise Business
- Bytes per sector512e
- Width483 mm
Overview
- Colour
- Black
- Storage drives installed
- Yes
- SFP+ module slots quantity
- 8
- Device class
- Large Enterprise Business
- Bytes per sector
- 512e
- Width
- 483 mm
- Brand
- Dell
- Category
- Disk Array
- Model
- ME5024
- Part numbers
- ME5024AFA, PV-ME5-25GB SFP+, PV-ME5-12GB SAS, ME5024_BASET, ME5024_32FC, PV-ME5-32GB FC +26 more
- EAN / UPC
- 884116432227, 884116432159, 884116432203, 884116432197 +15 more
- Also known as
- DELL PowerVault ME5024 disk array 15.36 TB Rack (2U) Black
Specifications
26 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | SSD |
| Number of storage drives installed | 4 |
| Total installed storage capacity | 15.36 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Storage drive capacity | 3.84 TB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Data transfer rate | 24 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP+ module slots quantity | 8 |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Bytes per sector | 512e |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 618.7 mm |
| Height | 87.9 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | -100 - 12192 m |
Other features
| Specification | Value |
|---|---|
| Controller interface type | 32Gb FC Type-B 8 Port Dual Controller |
