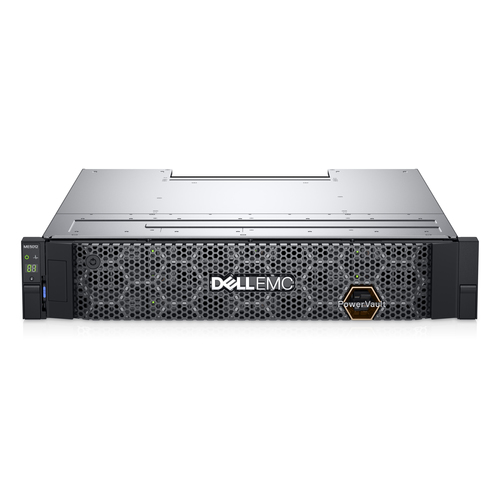

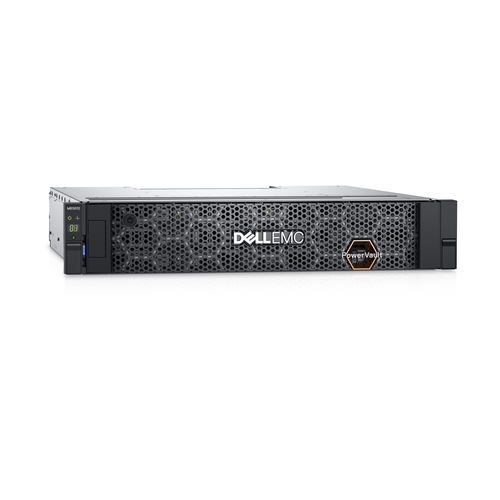

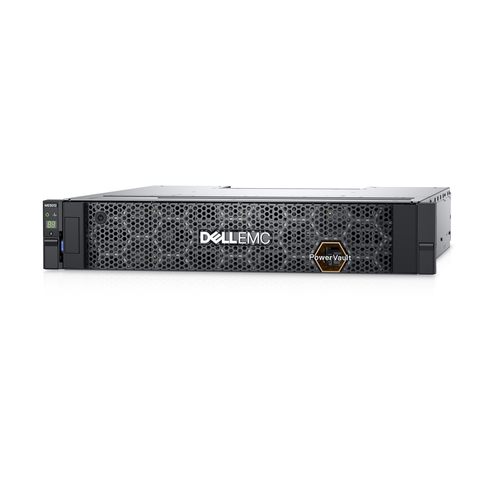

PowerVault ME5012 disk array
80 TB Rack (2U) Black
Model ME5012Part no. ME5012_263_FC20EAN 884116486428
34 specifications
- ColourBlack
- Storage drives installedNo
- SFP+ module slots quantity8
- Device classLarge Enterprise Business
- Bytes per sector512e
- Power supply unit (PSU) capacity580 W
Overview
- Colour
- Black
- Storage drives installed
- No
- SFP+ module slots quantity
- 8
- Device class
- Large Enterprise Business
- Bytes per sector
- 512e
- Power supply unit (PSU) capacity
- 580 W
- Brand
- Dell
- Category
- Disk Array
- Model
- ME5012
- Part numbers
- ME5012_263_FC20, ME5012_263_SAS20, ME512_263, PROMO_ME512_1, ME5012ISCSI, ME5012SAS +7 more
- EAN / UPC
- 884116486428, 5901165753877, 5901165753860, 884116486435 +1 more
- Also known as
- DELL PowerVault ME5012 disk array 80 TB Rack (2U) Black
Specifications
34 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 4 |
| Total installed storage capacity | 80 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Storage drive capacity | 20 TB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| Hot-Plug support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP+ module slots quantity | 8 |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| Rack rails | Yes |
| Bezel | Yes |
Performance
| Specification | Value |
|---|---|
| Bytes per sector | 512e |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 580 W |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 250 V |
| Power cable length | 2 m |
| Power cable connector 1 | NBR14136 |
| Power cable connector 2 | C13 coupler |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 618.7 mm |
| Height | 87.9 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | -100 - 12192 m |
Other features
| Specification | Value |
|---|---|
| Controller type | 25Gb iSCSI 8 Port Dual Controller |
