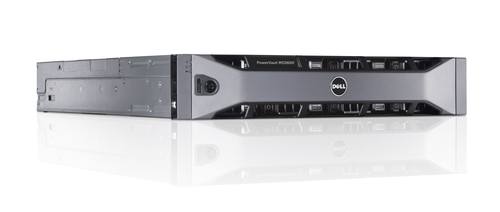

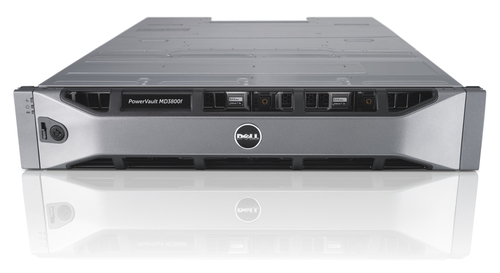

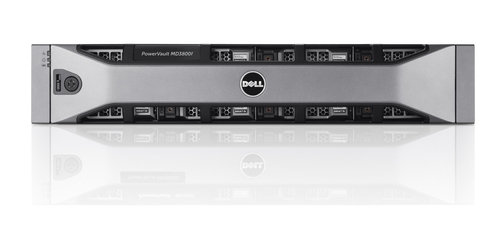

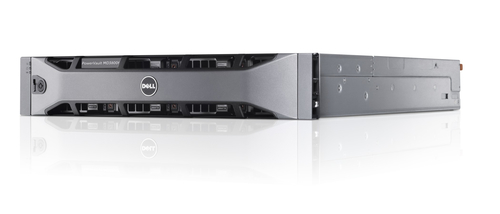

PowerVault MD3820f disk array
14.4 TB Rack (2U) Silver
Model MD3820fPart no. 3820-2806EAN 5397063982806
33 specifications
- ColourSilver
- Storage drives installedYes
- Chassis typeRack (2U)
- Power supply unit (PSU) capacity600 W
- Width446.3 mm
- Operating temperature (T-T)10 - 35 °C
Overview
- Colour
- Silver
- Storage drives installed
- Yes
- Chassis type
- Rack (2U)
- Power supply unit (PSU) capacity
- 600 W
- Width
- 446.3 mm
- Operating temperature (T-T)
- 10 - 35 °C
- Brand
- Dell
- Category
- Disk Array
- Model
- MD3820f
- Part number
- 3820-2806
- EAN / UPC
- 5397063982806
- Also known as
- DELL PowerVault MD3820f disk array 14.4 TB Rack (2U) Silver
Specifications
33 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 12 |
| Total installed storage capacity | 14.4 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 48 TB |
| Storage drive capacity | 1.2 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | 0, 1, 5, 6, 10 |
| Data transfer rate | 16 Gbit/s |
| Hot-swap drive bays | Yes |
| HDD speed | 10000 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| Fibre Channel | Yes |
| Host ports | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 600 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446.3 mm |
| Depth | 561 mm |
| Height | 86.8 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 12192 m |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | PVMD382001 |
