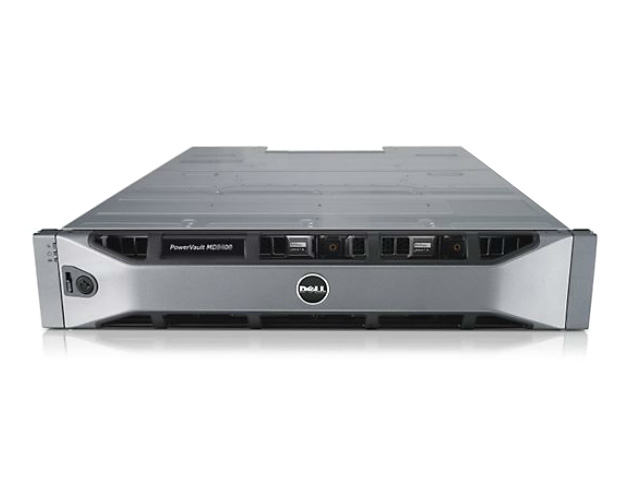

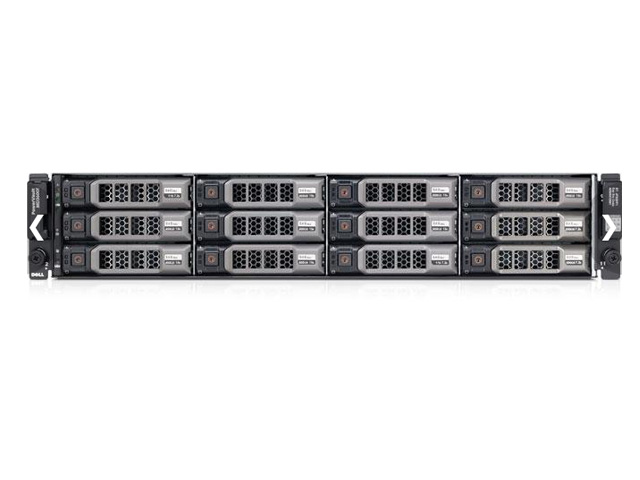

PowerVault MD3800i disk array
0.3 TB Rack (2U) Black
Model MD3800iPart no. 3800-9049EAN 5397063839049
27 specifications
- ColourBlack
- Storage drives installedYes
- Host ports12
- Chassis typeRack (2U)
- Power supply unit (PSU) capacity600 W
- Width446.3 mm
Overview
- Colour
- Black
- Storage drives installed
- Yes
- Host ports
- 12
- Chassis type
- Rack (2U)
- Power supply unit (PSU) capacity
- 600 W
- Width
- 446.3 mm
- Brand
- Dell
- Category
- Disk Array
- Model
- MD3800i
- Part numbers
- 3800-9049, 3800-1541, 3800-1589, 3800-8837, 3800-6082, 3800-6099
- EAN / UPC
- 5397063839049, 5397063421541, 5397063421589, 5397063698837 +2 more
- Also known as
- DELL PowerVault MD3800i disk array 0.3 TB Rack (2U) Black
Specifications
27 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 1 |
| Total installed storage capacity | 0.3 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Maximum supported storage capacity | 48 TB |
| Storage drive capacity | 300 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| RAID levels | 0, 1, 5, 6, 10 |
| HDD speed | 15000 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| Host ports | 12 |
| SAS host port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Internal | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 600 W |
| Number of power supply units | 1 |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446.3 mm |
| Depth | 602 mm |
| Height | 86.8 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | -16 - 3048 m |
