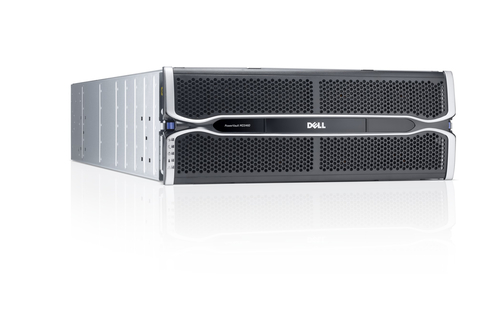

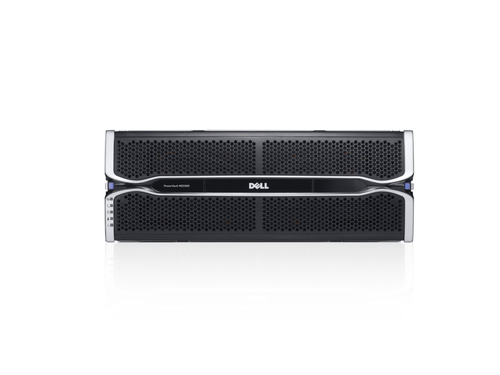

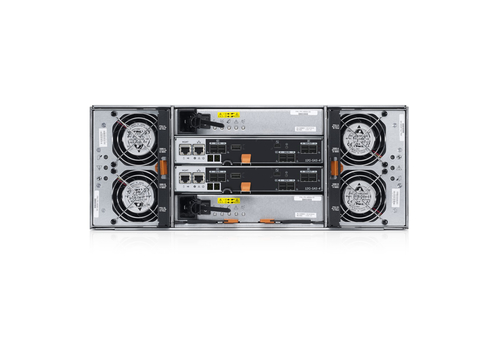

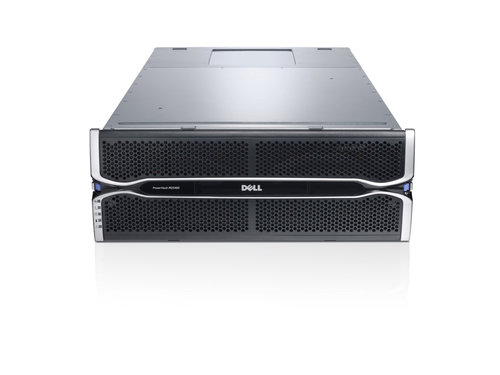

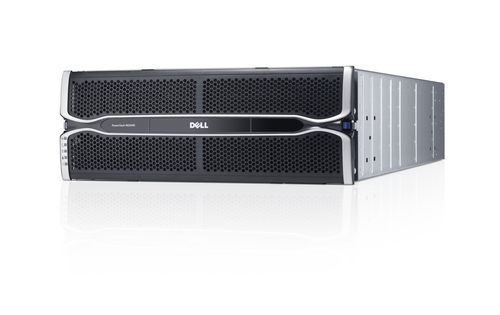

PowerVault MD3460 disk array
0 TB Rack (4U) Black, Grey
Model MD3460Part no. 3460-9025EAN 5397063839025
26 specifications
- Weight105.2 kg
- ColourBlack, Grey
- Storage drives installedNo
- SAS host portYes
- Chassis typeRack (4U)
- Power supply unit (PSU) capacity1755 W
Overview
- Weight
- 105.2 kg
- Colour
- Black, Grey
- Storage drives installed
- No
- SAS host port
- Yes
- Chassis type
- Rack (4U)
- Power supply unit (PSU) capacity
- 1755 W
- Brand
- Dell
- Category
- Disk Array
- Model
- MD3460
- Part number
- 3460-9025
- EAN / UPC
- 5397063839025
- Also known as
- DELL PowerVault MD3460 disk array 0 TB Rack (4U) Black, Grey
Specifications
26 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 60 |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | 0, 1, 5, 6, 10 |
Ports & interfaces
| Specification | Value |
|---|---|
| SAS host port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Internal | No |
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 1755 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 825.5 mm |
| Height | 177.8 mm |
| Weight | 105.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | -30.5 - 3000 m |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | PVMD3460D |
