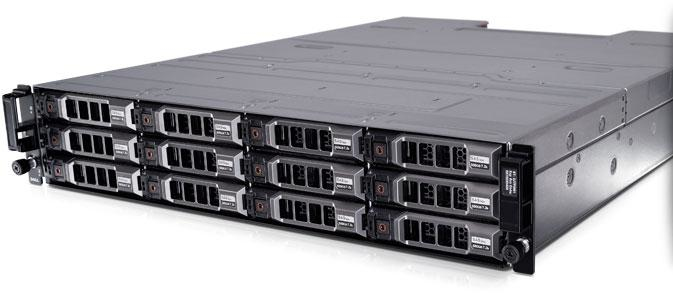

Dell PowerVault MD3220i disk array
3.6 TB Grey
Model MD3220iPart no. 3220-2210EAN 5397063422210
25 specifications
- Weight24.2 kg
- ColourGrey
- Number of storage drives installed12
- Host ports4
- Power supply unit (PSU) capacity600 W
- Width446.3 mm
Overview
- Weight
- 24.2 kg
- Colour
- Grey
- Number of storage drives installed
- 12
- Host ports
- 4
- Power supply unit (PSU) capacity
- 600 W
- Width
- 446.3 mm
- Brand
- Dell
- Category
- Disk Array
- Model
- MD3220i
- Part numbers
- 3220-2210, 3220-7834, 3220-7841, 3220-6103, 3220-6110, 3220-1503 +2 more
- EAN / UPC
- 5397063422210, 5397063417834, 5397063417841, 5397063416103 +4 more
- Also known as
- DELL PowerVault MD3220i disk array 3.6 TB Grey
Specifications
25 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Number of storage drives installed | 12 |
| Total installed storage capacity | 3.6 TB |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 21.6 TB |
| Storage drive capacity | 300 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | 0, 1, 5, 6, 10 |
| Data transfer rate | 1 Gbit/s |
| HDD speed | 15000 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| Host ports | 4 |
| RJ-45 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | Fan fail, HDD, Power, Status |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 600 W |
| AC input voltage | 90-264 V |
| AC input frequency | 47/63 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446.3 mm |
| Depth | 508 mm |
| Height | 86.8 mm |
| Weight | 24.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | -16 - 3048 m |
