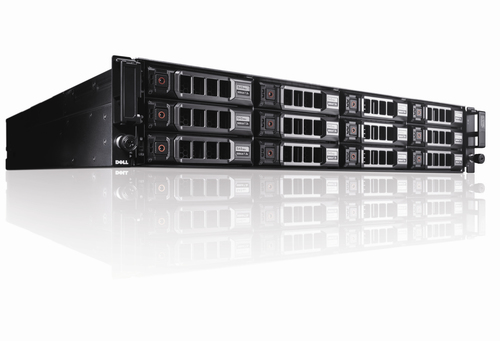

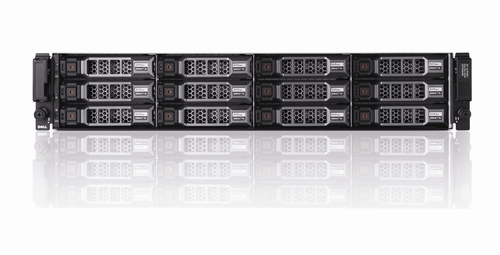

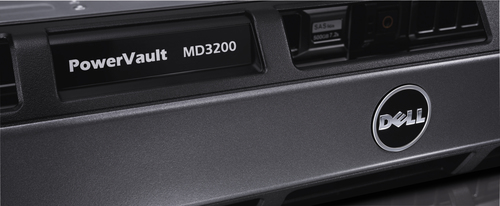

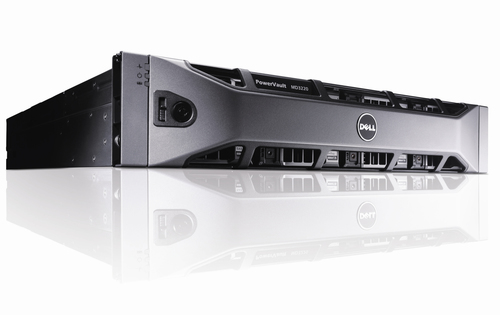

Dell PowerVault MD3200 disk array
0.6 TB Black
Model MD3200Part no. 3200-1442EAN 5397063422050
29 specifications
- Weight29.3 kg
- ColourBlack
- Storage drives installedYes
- Host ports4
- Power supply unit (PSU) capacity600 W
- Width446.3 mm
Overview
- Weight
- 29.3 kg
- Colour
- Black
- Storage drives installed
- Yes
- Host ports
- 4
- Power supply unit (PSU) capacity
- 600 W
- Width
- 446.3 mm
- Brand
- Dell
- Category
- Disk Array
- Model
- MD3200
- Part numbers
- 3200-1442, 3200-1459, 3200-2050
- EAN / UPC
- 5397063422050, 5397063421442, 5397063421459
- Also known as
- DELL PowerVault MD3200 disk array 0.6 TB Black
Specifications
29 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 2 |
| Total installed storage capacity | 0.6 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Storage drive capacity | 300 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| RAID levels | 0, 1, 5, 6, 10 |
| Hot-swap drive bays | Yes |
| HDD speed | 15000 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| Host ports | 4 |
| RJ-45 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 600 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 90-264 V |
| AC input frequency | 47/63 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446.3 mm |
| Depth | 561 mm |
| Height | 86.8 mm |
| Weight | 29.3 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | 5 - 40 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating altitude | -15 - 3048 m |
