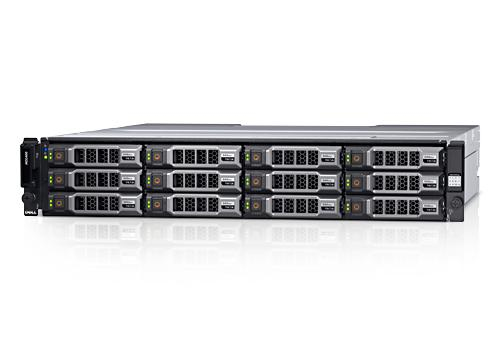

PowerVault MD1400 disk array
4 TB Rack (2U) Black, Grey
Model MD1400Part no. 1400-7557EAN 5397063697557
26 specifications
- Weight28.6 kg
- ColourBlack, Grey
- Storage drives installedYes
- Chassis typeRack (2U)
- Power supply unit (PSU) capacity600 W
- Width482 mm
Overview
- Weight
- 28.6 kg
- Colour
- Black, Grey
- Storage drives installed
- Yes
- Chassis type
- Rack (2U)
- Power supply unit (PSU) capacity
- 600 W
- Width
- 482 mm
- Brand
- Dell
- Category
- Disk Array
- Model
- MD1400
- Part numbers
- 1400-7557, PVMD1400B, 1400-2560
- EAN / UPC
- 5397063697557, 5397184222560
- Also known as
- DELL PowerVault MD1400 disk array 4 TB Rack (2U) Black, Grey
Specifications
26 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 2 |
| Total installed storage capacity | 4 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Maximum supported storage capacity | 48 TB |
| Storage drive capacity | 2 TB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| HDD speed | 10000 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| SAS host port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 600 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 541 mm |
| Height | 87 mm |
| Weight | 28.6 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
