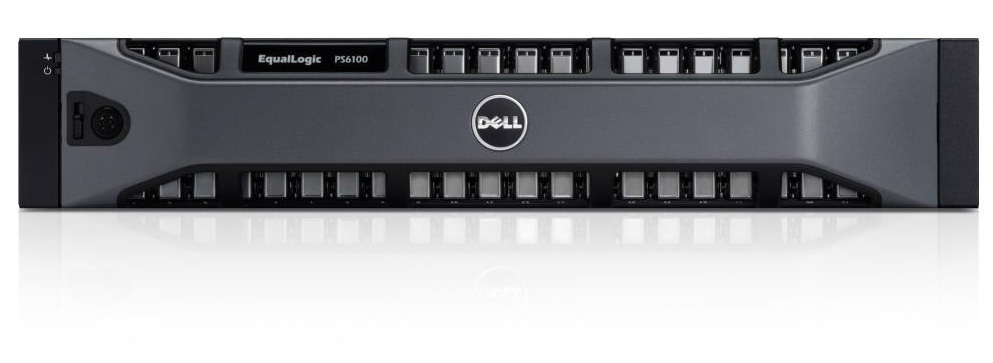

Dell EqualLogic PS6100X
Model EqualLogic PS6100XPart no. 100X-9025EAN 5397063769025
34 specifications
- Weight24.2 kg
- ColourBlack
- Storage drives installedYes
- Host ports4
- Chassis typeRack (2U)
- Power supply unit (PSU) capacity700 W
Overview
- Weight
- 24.2 kg
- Colour
- Black
- Storage drives installed
- Yes
- Host ports
- 4
- Chassis type
- Rack (2U)
- Power supply unit (PSU) capacity
- 700 W
- Brand
- Dell
- Category
- Disk Array
- Model
- EqualLogic PS6100X
- Part number
- 100X-9025
- EAN / UPC
- 5397063769025
- Also known as
- DELL PowerVault EqualLogic PS6100X disk array 14.4 TB Rack (2U) Black
Specifications
34 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 24 |
| Total installed storage capacity | 14.4 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 28.8 TB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | 5, 6, 10 |
| HDD speed | 10000 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| Host ports | 4 |
| RJ-45 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Supported network protocols | IPv4, IPv6 |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 700 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446 mm |
| Depth | 561 mm |
| Height | 87 mm |
| Weight | 24.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 629 mm |
| Package depth | 395 mm |
| Package height | 851 mm |
| Package weight | 29.5 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 65 °C |
