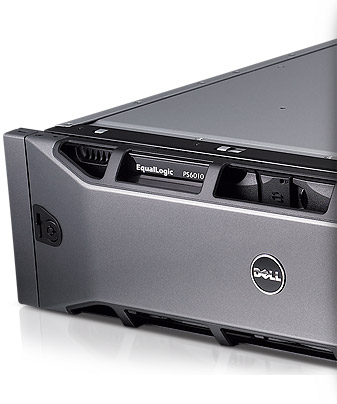

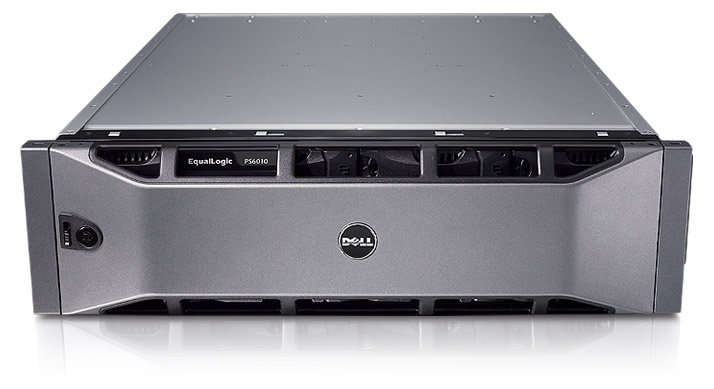

Dell EqualLogic PS6010X
Model EqualLogic PS6010XPart no. 350-10702-5Y4H
15 specifications
- Weight36 kg
- Number of storage drives installed16
- Supported network protocolsIPv4, IPv6
- Power supply unit (PSU) capacity440 W
- Operating temperature (T-T)5 - 35 °C
Overview
- Weight
- 36 kg
- Number of storage drives installed
- 16
- Supported network protocols
- IPv4, IPv6
- Power supply unit (PSU) capacity
- 440 W
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- Dell
- Category
- Disk Array
- Model
- EqualLogic PS6010X
- Part numbers
- 350-10702-5Y4H, 350-10704-3Y4H, 350-10704-1PRO, 350-10704-4Y4H, 350-10704-4PRO, 350-10704-1Y4H +10 more
- Also known as
- DELL EqualLogic PS6010X disk array
Specifications
15 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Number of storage drives installed | 16 |
| Storage drive capacity | 600 GB |
| RAID levels | 5, 6, 10, 50 |
| HDD speed | 10000 RPM |
| Native capacity | 9.6 TB |
Design
| Specification | Value |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| Management platform | SNMP, telnet, SSH, HTTP, Web (SSL), host scripting |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 440 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 36 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240 VAC, 47-63 Hz |
| Dimensions (WxDxH) | 482.6 x 55.1 x 130 mm |
