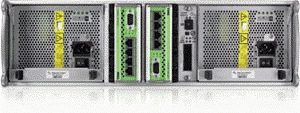

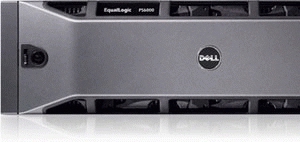

EqualLogic PS6000XV
Model EqualLogic PS6000XVPart no. 350-10329-3Y4H
14 specifications
- Number of storage drives installed8
- Supported network protocolsIPv4, IPv6
- Power supply unit (PSU) capacity440 W
- Operating temperature (T-T)5 - 35 °C
Overview
- Number of storage drives installed
- 8
- Supported network protocols
- IPv4, IPv6
- Power supply unit (PSU) capacity
- 440 W
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- Dell
- Category
- Disk Array
- Model
- EqualLogic PS6000XV
- Part numbers
- 350-10329-3Y4H, 350-10644-5Y4H, 350-10644-5PRO, 350-10644-4Y4H, 350-10644-4PRO, 350-10644-3Y4H +34 more
- Also known as
- DELL EqualLogic PS6000XV disk array
Specifications
14 specifications in 5 groups
Storage
| Specification | Value |
|---|---|
| Number of storage drives installed | 8 |
| Storage drive capacity | 600 GB |
| RAID levels | 5, 6, 10, 50 |
| HDD speed | 15000 RPM |
| Native capacity | 4.8 TB |
Design
| Specification | Value |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| Management platform | SNMP, telnet, SSH, HTTP, Web (SSL), host scripting |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 440 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240 VAC, 47-63 Hz |
| Service & support | 5yr |
