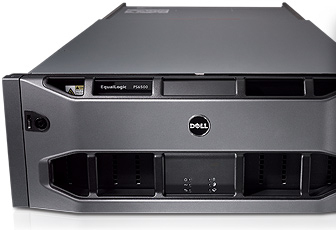

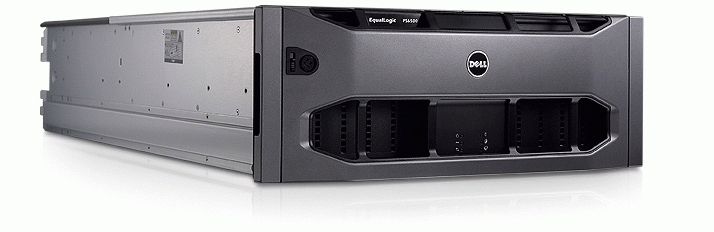

EqualLogic PS6000X
Model EqualLogic PS6000XPart no. 350-10575-1PRO
16 specifications
- Weight74.8 kg
- Number of storage drives installed48
- Supported network protocolsIPv4, IPv6
- Power supply unit (PSU) capacity440 W
- Operating temperature (T-T)5 - 35 °C
Overview
- Weight
- 74.8 kg
- Number of storage drives installed
- 48
- Supported network protocols
- IPv4, IPv6
- Power supply unit (PSU) capacity
- 440 W
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- Dell
- Category
- Disk Array
- Model
- EqualLogic PS6000X
- Part numbers
- 350-10575-1PRO, 350-10612-1Y4H, 350-10612-3PRO, 350-10612-5Y4H, 350-10612-5PRO, 350-10612-4Y4H +34 more
- Also known as
- DELL EqualLogic PS6000X disk array
Specifications
16 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Number of storage drives installed | 48 |
| Storage drive capacity | 600 GB |
| RAID levels | 5, 6, 10, 50 |
| HDD speed | 10000 RPM |
| Native capacity | 28.8 TB |
Design
| Specification | Value |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| Management platform | SNMP, telnet, SSH, HTTP, Web (SSL), host scripting |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 440 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 74.8 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240 VAC, 47/63Hz |
| Dimensions (WxDxH) | 483 x 960 x 175 mm |
| Service & support | 1yr |
