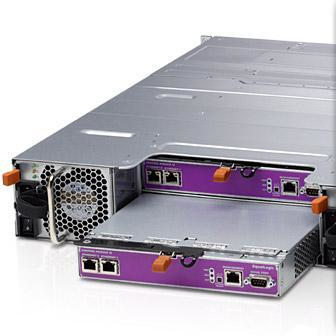

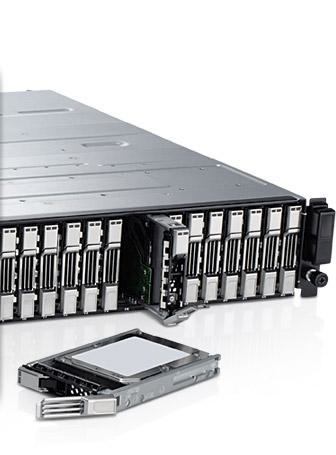

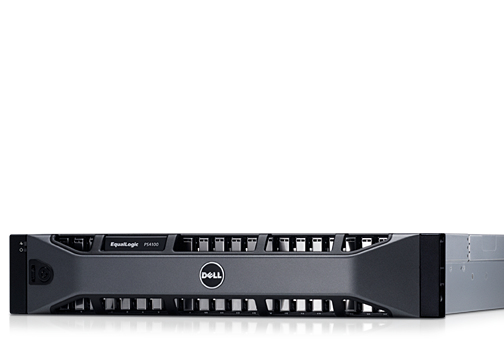

EqualLogic PS4100X
Model EqualLogic PS4100XPart no. 4100-4197EAN 5397063774197
27 specifications
- Weight24.1 kg
- ColourBlack, Grey
- Storage drives installedYes
- Device classLarge Enterprise Business
- Power supply unit (PSU) capacity700 W
- Width446 mm
Overview
- Weight
- 24.1 kg
- Colour
- Black, Grey
- Storage drives installed
- Yes
- Device class
- Large Enterprise Business
- Power supply unit (PSU) capacity
- 700 W
- Width
- 446 mm
- Brand
- Dell
- Category
- Disk Array
- Model
- EqualLogic PS4100X
- Part number
- 4100-4197
- EAN / UPC
- 5397063774197
- Also known as
- DELL EqualLogic PS4100X disk array 14.4 TB Rack (2U) Black, Grey
Specifications
27 specifications in 5 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 24 |
| Total installed storage capacity | 14.4 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 28.8 TB |
| Storage drive capacity | 600 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | 5, 6, 10, 50 |
| Hot-swap drive bays | Yes |
| HDD speed | 10000 RPM |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Internal | Yes |
| Product colour | Black, Grey |
| Rack rails | Yes |
| Supported network protocols | IPv4, IPv6 |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 700 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446 mm |
| Depth | 541 mm |
| Height | 86.8 mm |
| Weight | 24.1 kg |
Other features
| Specification | Value |
|---|---|
| Software support | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Oracle Solaris, IBM AIX, HP-UX, Mac OS X, Citrix XenServer, Novell NetWare |
