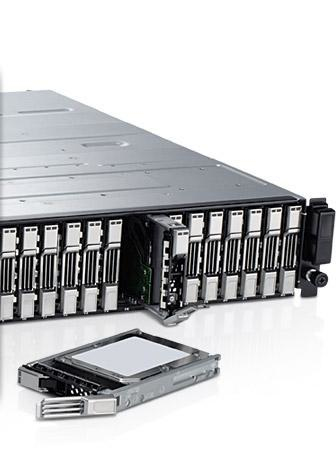

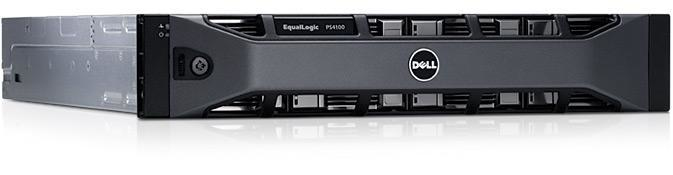

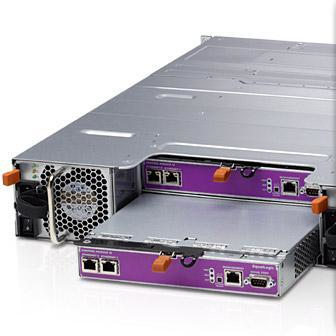

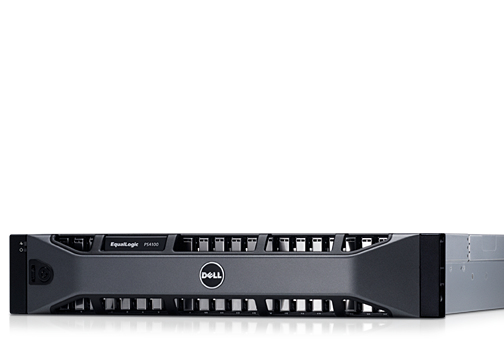

Dell EqualLogic PS4100E
Model EqualLogic PS4100EPart no. 210-36652
17 specifications
- Weight26.8 kg
- Number of storage drives installed12
- Chassis typeRack (2U)
- Power supply unit (PSU) capacity700 W
- Operating temperature (T-T)5 - 40 °C
Overview
- Weight
- 26.8 kg
- Number of storage drives installed
- 12
- Chassis type
- Rack (2U)
- Power supply unit (PSU) capacity
- 700 W
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- Dell
- Category
- Disk Array
- Model
- EqualLogic PS4100E
- Part number
- 210-36652
- Also known as
- DELL EqualLogic PS4100E disk array Rack (2U)
Specifications
17 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Number of storage drives installed | 12 |
| Storage drive capacity | 3 TB |
| Storage drive interface | Near Line SAS (NL-SAS) |
| RAID levels | 5, 6, 10, 50 |
| HDD speed | 7200 RPM |
| Native capacity | 36 TB |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Supported network protocols | IPv4, IPv6, SNMP, telnet, SSH, HTTP, Web (SSL), iSCSI |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 700 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 26.8 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 65 °C |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 V, 50/60 Hz |
| Compatible operating systems | Windows 2000 Server, Windows Server 2003, Windows Server 2008, including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UX, Mac OS X, VMware ESX Server 3 / 3.5 / 4 / 4.1 / 5, ESXi 3.5 / 4 / 4.1 / |
| Dimensions (WxDxH) | 446.3 x 594 x 86.8 mm |
| Power supply type | AC |
