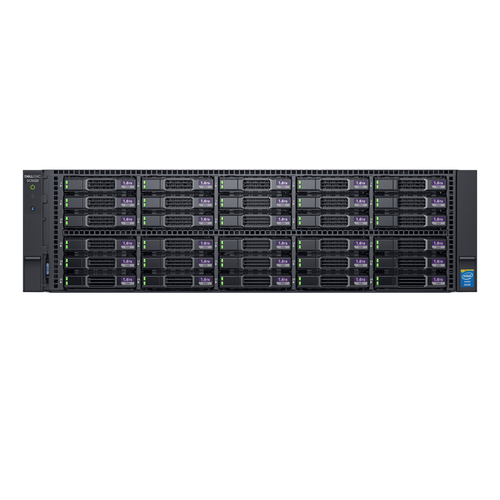

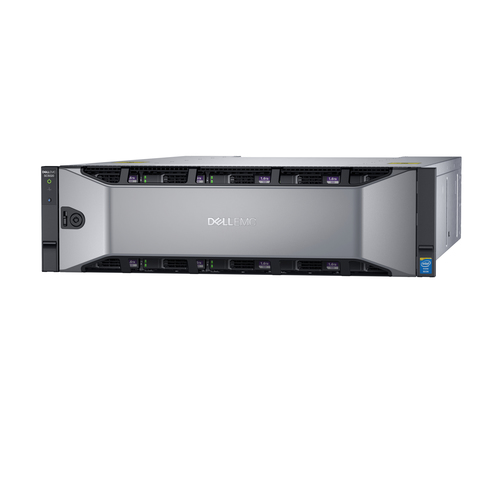

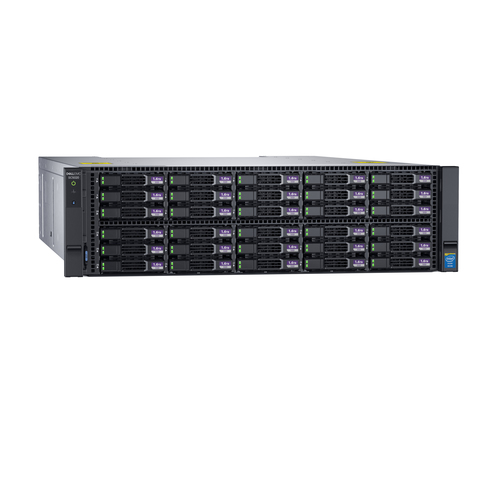

Compellent SC5020
Model Compellent SC5020Part no. 5020-2621EAN 5397184363003
32 specifications
- Weight15.2 kg
- ColourBlack, Silver
- Storage drives installedYes
- USB connectivityNo
- Device classLarge Enterprise Business
- Power supply unit (PSU) capacity1485 W
Overview
- Weight
- 15.2 kg
- Colour
- Black, Silver
- Storage drives installed
- Yes
- USB connectivity
- No
- Device class
- Large Enterprise Business
- Power supply unit (PSU) capacity
- 1485 W
- Brand
- Dell
- Category
- Disk Array
- Model
- Compellent SC5020
- Part numbers
- 5020-2621, 5020-3003, 5020-2990, SC5020_PL, SC5020FCHYBRID1, SC5020ISCSIHYBRID1 +1 more
- EAN / UPC
- 5397184363003, 5397184362990, 5397184222614, 5397184222621
- Also known as
- DELL Compellent SC5020 disk array 24 TB Rack (3U) Black, Silver
Specifications
32 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD+SSD |
| Number of storage drives installed | 13 |
| Total installed storage capacity | 24 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 30 |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Supported storage drive interfaces | SAS |
| Storage drive sizes supported | 2.5" |
| RAID levels | 0, 1, 5, 6, 10 |
| Data transfer rate | 12 Gbit/s |
| Hot-Plug support | Yes |
| HDD speed | 10000 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (3U) |
| Product colour | Black, Silver |
| Supported network protocols | 16Gb FC |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 1485 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 785 mm |
| Height | 133.3 mm |
| Weight | 15.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
