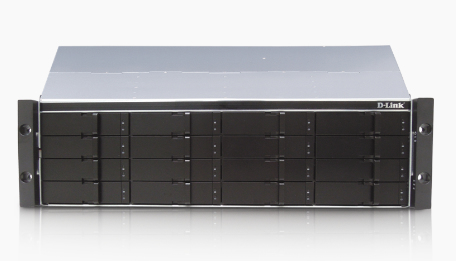

D-Link xStack disk array Rack (3U)
Model xStackPart no. DSN-4100EAN 790069367243
29 specifications
- Memory512 MB
- ConnectivityLAN
- Type3U 19"
- Weight15 kg
- Number of storage drives installed0
- RJ-45 ports quantity1
Overview
- Memory
- 512 MB
- Connectivity
- LAN
- Type
- 3U 19"
- Weight
- 15 kg
- Number of storage drives installed
- 0
- RJ-45 ports quantity
- 1
- Brand
- D-Link
- Category
- Disk Array
- Model
- xStack
- Part number
- DSN-4100
- EAN / UPC
- 790069367243, 7900693672436
- Also known as
- D-Link xStack disk array Rack (3U)
Specifications
29 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Number of storage drives installed | 0 |
| Number of storage drives supported | 16 |
| Maximum supported storage capacity | 32 TB |
| Storage drive interface | Serial ATA |
| RAID levels | 0, 1+0, 5 |
| Data transfer rate | 1 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (3U) |
| Internal | No |
| Management platform | GUI |
| Certification | CE, FCC, VCCI, BSMI, CB, KCC, C-Tick, UL/cUL, TUV |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 450 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 90-264 V |
| AC input frequency | 47/63 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446 mm |
| Depth | 471 mm |
| Height | 131 mm |
| Weight | 15 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 10 - 80% |
Other features
| Specification | Value |
|---|---|
| Interface | LAN |
| Bandwidth | 425 MB/s |
| Compatible operating systems | Windows Vista 32-bit & x64 (Ultimate & Enterprise) Windows Server 2003 R2 / SP1 32 & 64-bit Windows Server 2008 Enterprise 32 & 64-bit Windows XP Pro 32 & 64-bit Windows 2000 AdvancedServer Red Hat 7.3 Red Hat Enterprise AS upd 5 (64-bit) Red Hat Enterprise 5 upd 2 (64-bit) SuSE Professional 9.3 32- |
| Form factor | 3U 19" |
| Internal memory | 512 MB |
| Networking features | Gigabit Ethernet |
