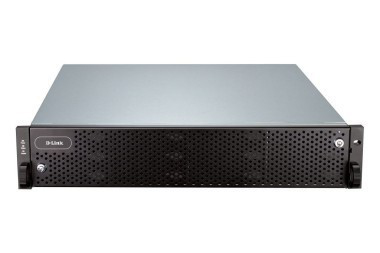

D-Link DSN-6110 disk array Rack (2U)
Model DSN-6110Part no. DSN-6110 + 12X ST2000NC000EAN 790069379994
16 specifications
- Number of storage drives supported60
- Host ports4
- Chassis typeRack (2U)
- Power supply unit (PSU) capacity1000 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Number of storage drives supported
- 60
- Host ports
- 4
- Chassis type
- Rack (2U)
- Power supply unit (PSU) capacity
- 1000 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- D-Link
- Category
- Disk Array
- Model
- DSN-6110
- Part numbers
- DSN-6110 + 12X ST2000NC000, DSN-6110 + 12X ST3000NC000, DSN-6110 + 12X ST4000VX000, DSN-6110 + 12X ST4000VX002, DSN-6110 + 12X ST4000NC000, DSN-6110
- EAN / UPC
- 790069379994, 790069353529
- Also known as
- D-Link DSN-6110 disk array Rack (2U)
Specifications
16 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 60 |
| Maximum supported storage capacity | 120 TB |
| Storage drive interface | Serial ATA III |
| RAID levels | 0, 1, 0+1, 3, 5, 6, 10, 50, 60, JBOD |
| Data transfer rate | 1 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Host ports | 4 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Supported network protocols | iSCSI |
| Management platform | SSH, HTTP, iSNS, S.E.S. |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 1000 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240V |
| Dimensions (WxDxH) | 442.8 x 500.6 x 88 mm |
| Power supply type | AC/DC |
| Service level | VSS |
| Cache internal | 4000 MB |
