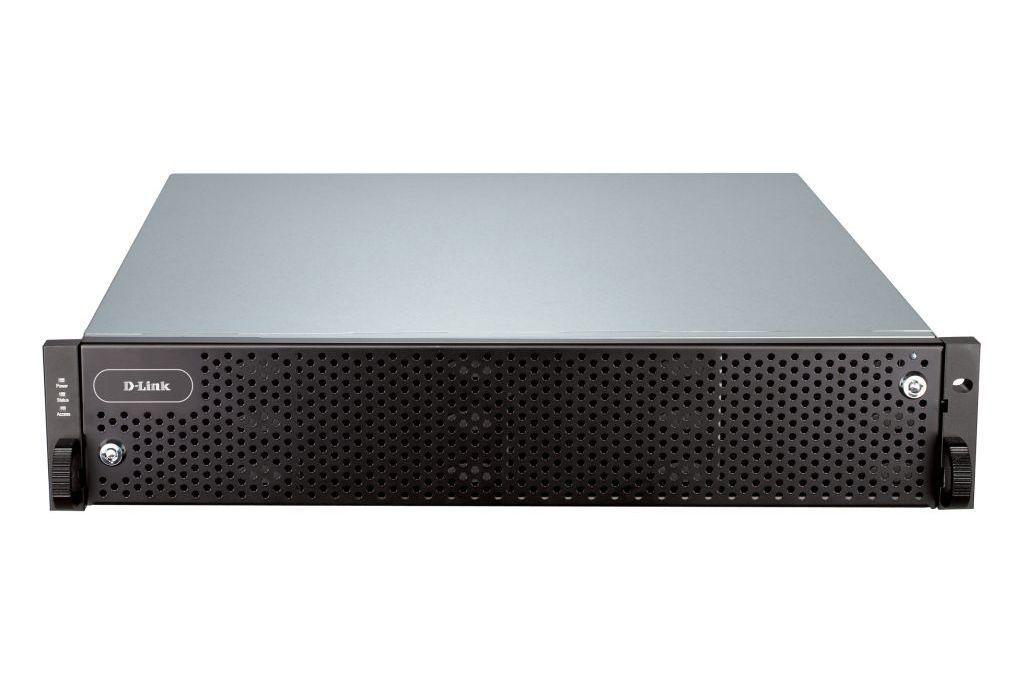

D-Link DSN-6020 disk array
0 TB Rack (2U)
Model DSN-6020EAN 790069353536
25 specifications
- Storage drives installedNo
- Host ports4
- Device classHome & Home Office
- Power supply unit (PSU) capacity500 W
- Width442.8 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Storage drives installed
- No
- Host ports
- 4
- Device class
- Home & Home Office
- Power supply unit (PSU) capacity
- 500 W
- Width
- 442.8 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- D-Link
- Category
- Disk Array
- Model
- DSN-6020
- Part number
- DSN-6020
- EAN / UPC
- 790069353536, 790069379987, 7900693535366, 7900693799874
- Also known as
- D-Link DSN-6020 disk array 0 TB Rack (2U)
Specifications
25 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 12 |
| Maximum supported storage capacity | 36 TB |
| Storage drive interface | Serial ATA II |
| RAID levels | 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD |
| Data transfer rate | 1 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Host ports | 4 |
Design
| Specification | Value |
|---|---|
| Device class | Home & Home Office |
| Chassis type | Rack (2U) |
| Supported network protocols | iSCSI |
| Management platform | SSH, HTTP, iSNS, S.E.S. |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442.8 mm |
| Depth | 500.6 mm |
| Height | 88 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240V |
| Dimensions (WxDxH) | 442.8 x 500.6 x 88 mm |
| Power supply type | AC/DC |
| Service level | VSS |
