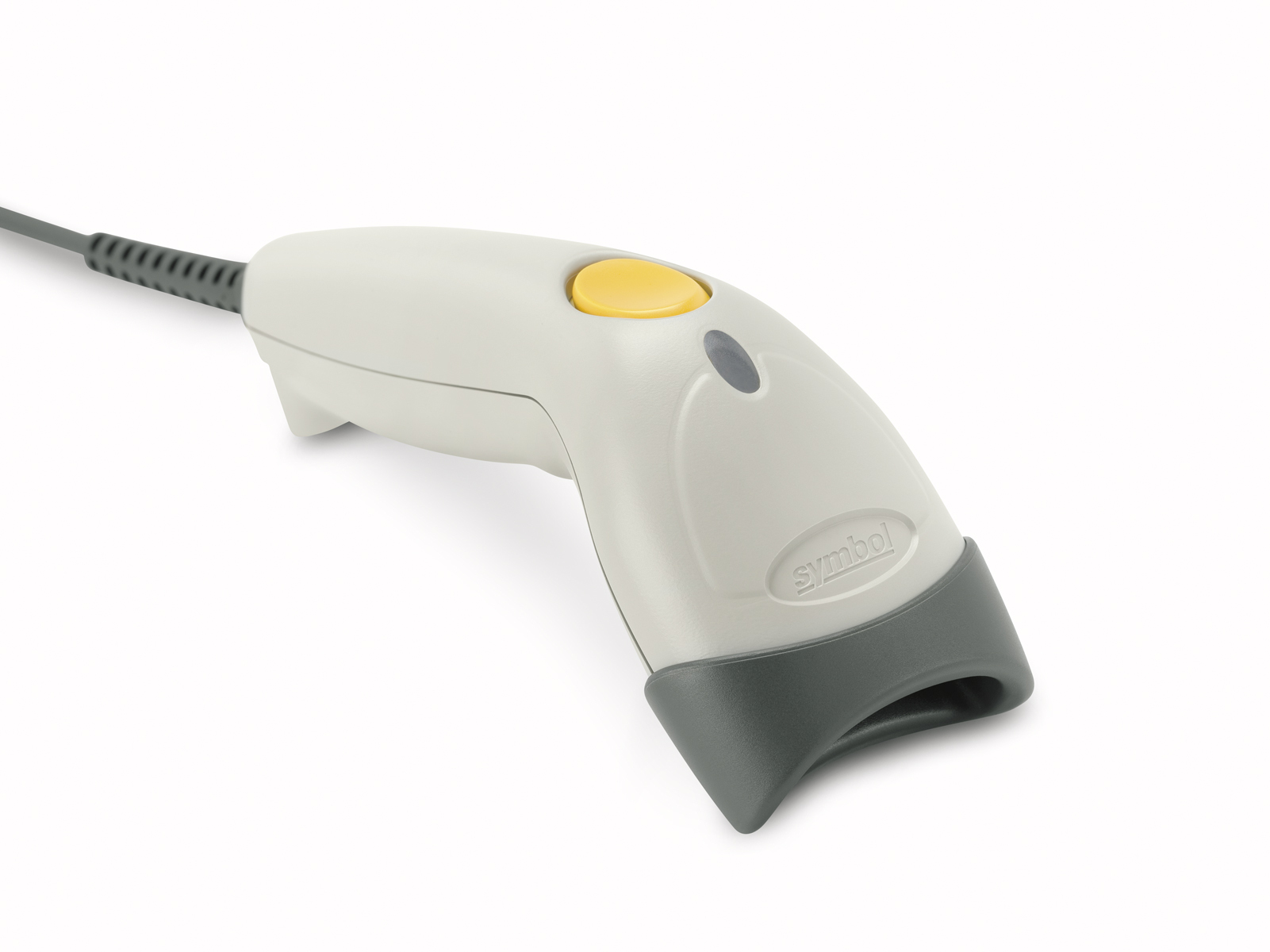

Zebra Symbol LS1203
Zebra

Symbol LS1203

Model Symbol LS1203Part no. LS1203-7AZR0100BEAN 682017467474

16 specifications
  • Weight122 g
  • ColourWhite
  • Working distance20.3 cm
  • Standard interfacesRS-232, USB
  • Input voltage5 V
  • Operating relative humidity (H-H)5 - 95%
See all specifications

Overview

Weight
122 g
Colour
White
Working distance
20.3 cm
Standard interfaces
RS-232, USB
Input voltage
5 V
Operating relative humidity (H-H)
5 - 95%
Brand
Zebra
Model
Symbol LS1203
Part numbers
LS1203-7AZR0100B, LS1203-7HDU0100SR
EAN / UPC
682017467474, 4054318288328, 8596375061026
Also known as
Motorola Symbol LS1203 White

Specifications

16 specifications in 7 groups

Scanning

Working distance20.3 cm
Decoding standardsUPC/EAN, UPC/EAN, UCC/EAN 128, 39, 39 ASCII, 39 TriOptic, 128, 128 ASCII, Codabar, 93, MSI, 11, IATA, RSS
Scan speed0.01 sec/page
Tilt angle range-30 - 30°

Ports & interfaces

Standard interfacesRS-232, USB

Performance

Product colourWhite

Power

Input voltage5 V
Power consumption100 mA

Weight & dimensions

Weight122 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C

Other features

Dimensions (WxDxH)60 x 180 x 62 mm
Light source650 nm laser diode
SafetyUL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1,EN 60825-1, IEC 60825-1, 21CFR1040.10
Electromagnetic emissionsFCC P. 15 Cl. B, ICES 003 Cl. B
