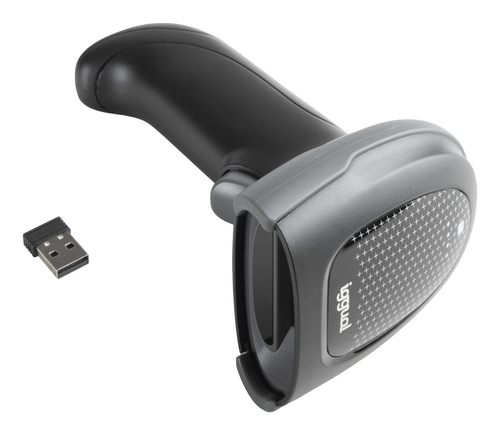

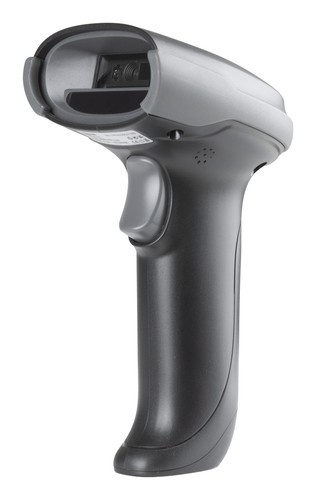

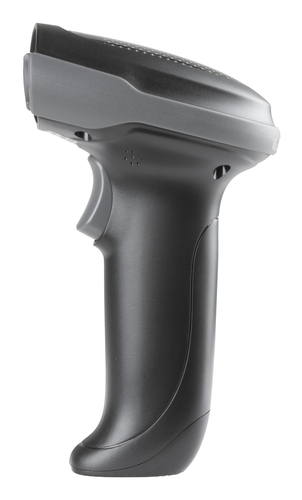

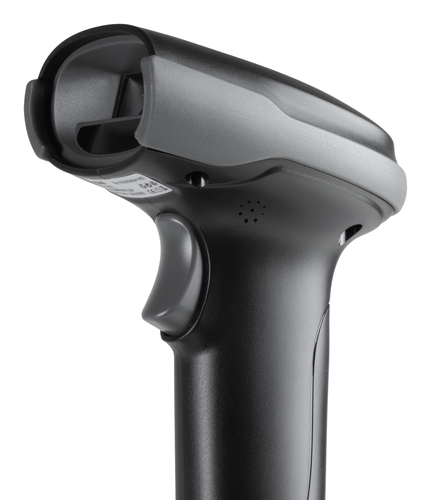

L2DBT-G-AX Handheld bar code reader 1D/2D CMOS Black
iggual

L2DBT-G-AX Handheld bar code reader 1D/2D CMOS Black

Model L2DBT-G-AXPart no. IGG320105EAN 8435364320105

45 specifications
  • Battery2000 mAh
  • ConnectivityWired & Wireless
  • TypeHandheld bar code reader
  • Weight169 g
  • ColourBlack
  • Power source typeBattery
See all specifications

Overview

Battery
2000 mAh
Connectivity
Wired & Wireless
Type
Handheld bar code reader
Weight
169 g
Colour
Black
Power source type
Battery
Brand
iggual
Model
L2DBT-G-AX
Part number
IGG320105
EAN / UPC
8435364320105
Also known as
iggual L2DBT-G-AX Handheld bar code reader 1D/2D CMOS Black

Specifications

45 specifications in 8 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ISSN, JAN-13, JAN-8, MSI, Standard 25, UPC-A, UPC-E, UPC-E0, UPC-E1
Sensor typeCMOS
Trigger modeAuto-induction, Continuous, Manual
Optical sensor resolution (W x H)640 x 480 pixels
Working distance range10 - 2000 mm
Read rate (max)200 reads/s
Tilt reading angle0 - 65°
Depth of field range15 cm
Tilt angle range0 - 37°

Ports & interfaces

Connectivity technologyWired & Wireless
Standard interfacesBluetooth, USB
Operating frequency2400 MHz
Ethernet LANYes

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Thermoplastic urethane (TPU)
International Protection (IP) codeIP52
Protection featuresElectrostatic Discharge (ESD) protection
LED indicatorsYes
Ambient lightingYes
Print contrast25%

Power

Power source typeBattery
Power consumption (typical)0.41 W
Battery voltage3.7 V
Battery life35 h
Charging time8 h
Input voltage5 V

Weight & dimensions

Width89.5 mm
Depth72.5 mm
Height157.6 mm
Weight169 g

Operational conditions

Drop resistance1.2 m
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)20 - 85%
Storage temperature (T-T)0 - 50 °C

Battery

Battery technologyLithium Polymer (LiPo)
Battery capacity2000 mAh

Other features

Compatible operating systemsWindows, macOS, Linux, Android
Linux operating systems supportedYes
Mobile operating systems supportedAndroid
Quick start guideYes
Windows operating systems supportedYes
