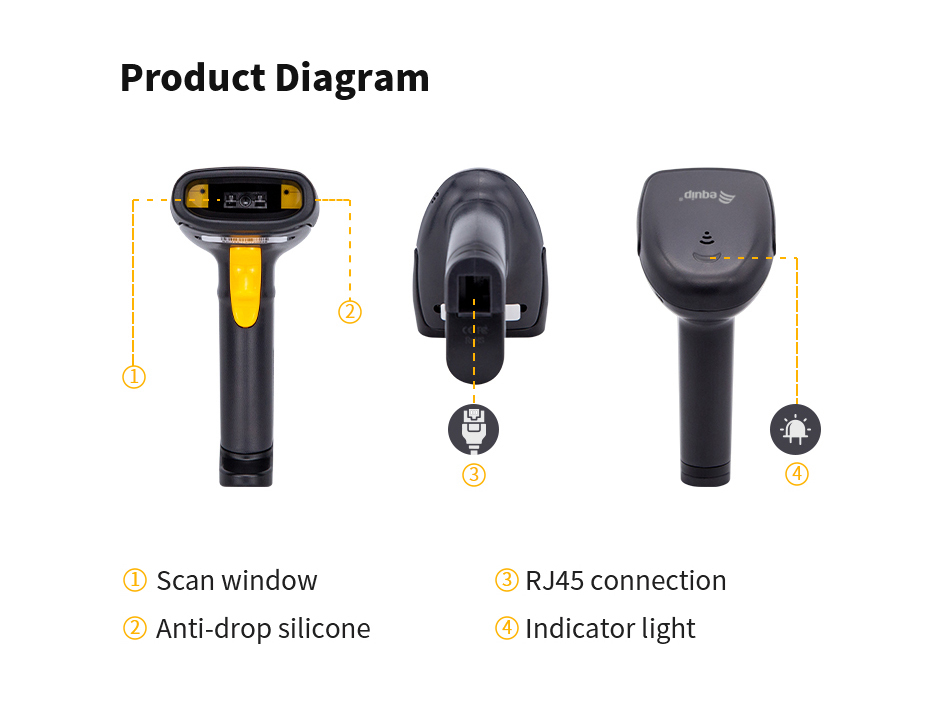

USB 1D Barcode Scanner, with Stand
Equip

USB 1D Barcode Scanner, with Stand

Model 351020EAN 4015867231661

46 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight121 g
  • ColourBlack
  • Power source typeUSB
  • Width69 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
121 g
Colour
Black
Power source type
USB
Width
69 mm
Brand
Equip
Model
351020
Part number
351020
EAN / UPC
4015867231661
Also known as
Equip USB 1D Barcode Scanner, with Stand

Specifications

46 specifications in 10 groups

Scanning

TypeHandheld bar code reader
Scanner type1D
2D (matrix & stacked) barcodes supportedNot supported
Linear (1D) barcodes supportedAIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, Deutsche12, Deutsche14, EAN 128, EAN-13, EAN-8, ISBN, ISSN, ITF-14, Industrial 25, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, UPC-A, UPC-E
Sensor typeLED
Trigger modeAuto-induction, Continuous, Manual
Scanner resolution5 mm
Working distance110 cm
Read rate (max)200 reads/s
Wavelength632 nm

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB
Cable length1.8 m

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
International Protection (IP) codeIP54
Protection featuresDrop proof, Water resistant
LED indicatorsYes
Country of originChina

Power

Power source typeUSB
Input voltage5 V
Input current0.1 A

Weight & dimensions

Width69 mm
Depth91 mm
Height155 mm
Weight121 g

Packaging data

Stand includedYes
Package width150 mm
Package depth207 mm
Package height100 mm
Package weight440 g

Operational conditions

Operating relative humidity (H-H)20 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C

Technical details

Compliance certificatesCE, RoHS
Sustainability complianceYes

Logistics data

Harmonized System (HS) code8471900090
Master (outer) case gross weight14.5 kg
Master (outer) case height525 mm
Master (outer) case length485 mm
Master (outer) case width440 mm
Products per master (outer) case30 pc(s)

Other features

Linux operating systems supportedYes
Mobile operating systems supportedAndroid, iOS
Quick start guideYes
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 7, Window
