Wireless 2D Handheld Barcode Scanner
Manhattan

Wireless 2D Handheld Barcode Scanner

250mm Scan Depth, up to 80m effective range (line of sight), Max Ambient Light 100,000 lux (sunlight), Black, Ch

Model 154185EAN 766623154185

51 specifications
  • Battery2000 mAh
  • ConnectivityWireless
  • TypeHandheld bar code reader
  • Weight200 g
  • ColourBlack
  • Power source typeBattery
See all specifications

Overview

Battery
2000 mAh
Connectivity
Wireless
Type
Handheld bar code reader
Weight
200 g
Colour
Black
Power source type
Battery
Brand
Manhattan
Model
154185
Part number
154185
EAN / UPC
766623154185
Also known as
Manhattan Wireless 2D Handheld Barcode Scanner, 250mm Scan Depth, up to 80m effective range (line of sight), Max Ambient Light 100,000 lux (sunlight), Black, Ch

Specifications

51 specifications in 10 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Dot Code A, Grid Matrix Code, MaxiCode, MicroPDF417, PDF417, QR Code
Linear (1D) barcodes supportedChina Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Telepen, UPC-A, UPC-E, JAN-13, JAN-8
Sensor typeLED
Optical sensor resolution (W x H)1280 x 800 pixels
1D resolution (min)0.076 mm
2D resolution (min)0.18 mm
Working distance45 cm
Horizontal field of view45°
Vertical field of view36°
Read rate (max)60 reads/s
Light levels (direct sunlight)0 - 100000 lx

Ports & interfaces

Connectivity technologyWireless
Standard interfacesRF Wireless
Wireless range80 m
Cable length1 m

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
International Protection (IP) codeIP52
Protection featuresDrop resistant
Print contrast20%
Mean time between failures (MTBF)50000 h

Power

Power source typeBattery
Charging port typeUSB Type-C
Battery voltage3.7 V
Charging time5 h
Power consumption280 mA

Weight & dimensions

Width67 mm
Depth87 mm
Height172 mm
Weight200 g

Packaging data

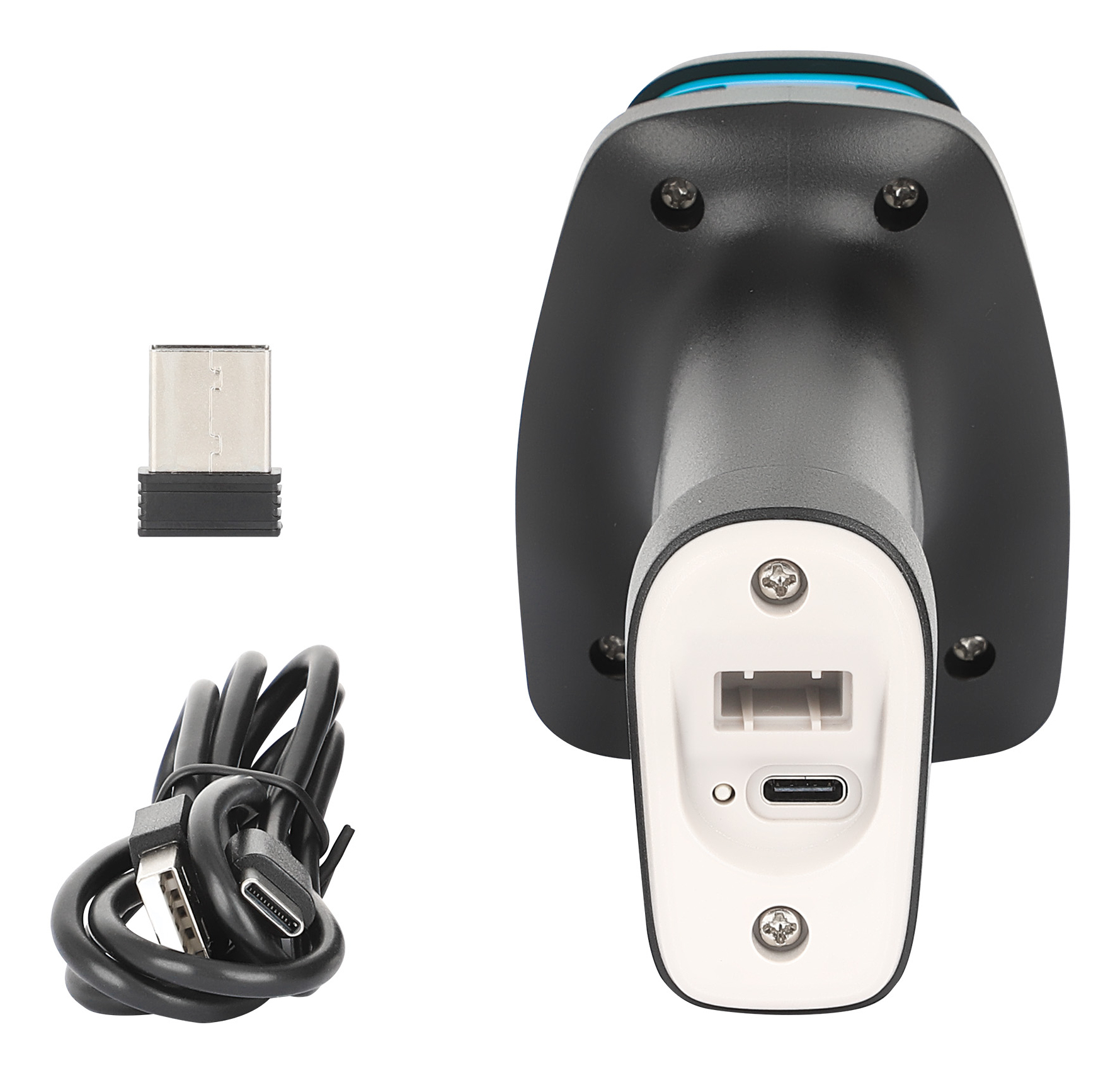

Cables includedUSB Type-A to USB Type-C
Receiver includedYes
Receiver typeNano receiver
Package width175 mm
Package depth80 mm
Package height108 mm
Package weight320 g

Operational conditions

Drop resistance1.2 m
Operating relative humidity (H-H)20 - 95%
Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-20 - 70 °C

Battery

Battery capacity2000 mAh

Technical details

Compliance certificatesCE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
Warranty period3 year(s)

Logistics data

Master (outer) case gross weight12.8 kg
Master (outer) case height400 mm
Master (outer) case length565 mm
Master (outer) case width360 mm
Products per master (outer) case40 pc(s)
