Wireless 2D 2.4GHz + Bluetooth Barcode Scanner, with charging Stand
Equip

Wireless 2D 2.4GHz + Bluetooth Barcode Scanner, with charging Stand

Model 351030EAN 4015867243626

50 specifications
  • Battery1500 mAh
  • ConnectivityWireless
  • TypeHandheld bar code reader
  • Weight312 g
  • ColourBlack
  • Power source typeBattery
See all specifications

Overview

Battery
1500 mAh
Connectivity
Wireless
Type
Handheld bar code reader
Weight
312 g
Colour
Black
Power source type
Battery
Brand
Equip
Model
351030
Part number
351030
EAN / UPC
4015867243626
Also known as
Equip Wireless 2D 2.4GHz + Bluetooth Barcode Scanner, with charging Stand

Specifications

50 specifications in 11 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D

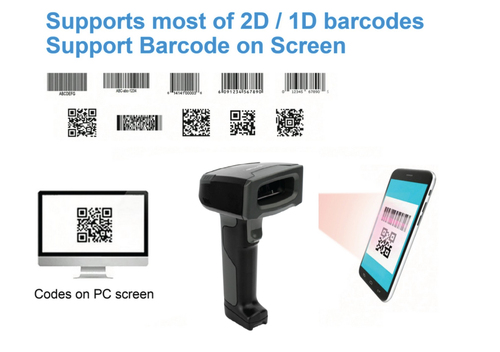

2D (matrix & stacked) barcodes supportedQR Code, PDF417, Data Matrix
Linear (1D) barcodes supportedCode 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, ISBN, ISSN, Code 93, GS1-128 (UCC/EAN-128), GS1 DataBar, Code 11, MSI-Plessey, Plessey
Sensor typeCMOS
Trigger modeContinuous, Manual
1D resolution (min)4 mm
2D resolution (min)5 mm
Working distance150 cm
Read rate (max)220 reads/s
Tilt reading angle0 - 360°
Pitch reading angle-30 - 30°
Yaw reading angle-35 - 35°

Ports & interfaces

Connectivity technologyWireless
Standard interfacesBluetooth, RF Wireless
Operating frequency2400 MHz

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
International Protection (IP) codeIP54
Protection featuresDrop resistant, Water resistant
Country of originChina

Power

Power source typeBattery
Battery voltage3.7 V
Battery life20 h

Weight & dimensions

Width78 mm
Depth124 mm
Height186 mm
Weight312 g

Packaging data

Stand includedYes
Package width150 mm
Package depth207 mm
Package height100 mm
Package weight473 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-40 - 90 °C

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery capacity1500 mAh
Standby time3 month(s)

Technical details

Compliance certificatesCE, REACH, RoHS

Logistics data

Customs product code (TARIC)8471900000
Master (outer) case gross weight15.5 kg
Master (outer) case height525 mm
Master (outer) case length485 mm
Master (outer) case width440 mm
Products per master (outer) case30 pc(s)

Other features

Linux operating systems supportedYes
Mobile operating systems supportedAndroid, iOS
Quick start guideYes
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris
