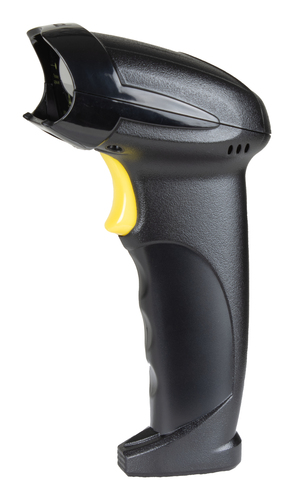

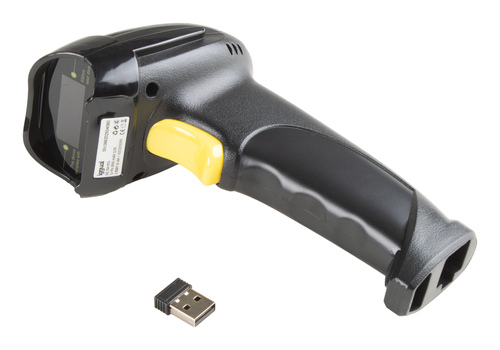

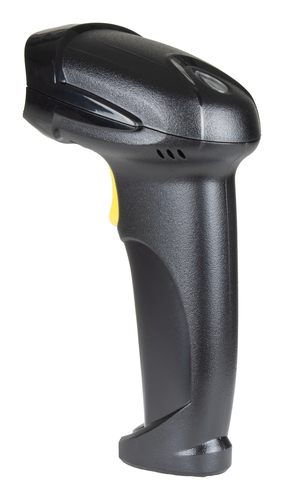

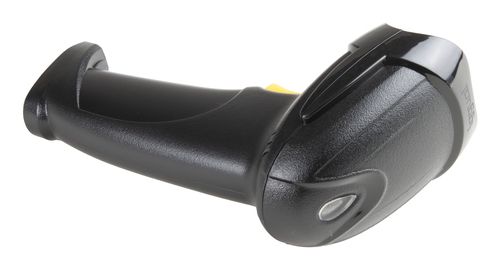

L1DBT-G-AX Handheld bar code reader 1D Laser Black
iggual

L1DBT-G-AX Handheld bar code reader 1D Laser Black

Model L1DBT-G-AXPart no. IGG320099EAN 8435364320099

45 specifications
  • Battery800 mAh
  • ConnectivityWired & Wireless
  • TypeHandheld bar code reader
  • Weight135 g
  • ColourBlack
  • Power source typeBattery
See all specifications

Overview

Battery
800 mAh
Connectivity
Wired & Wireless
Type
Handheld bar code reader
Weight
135 g
Colour
Black
Power source type
Battery
Brand
iggual
Model
L1DBT-G-AX
Part number
IGG320099
EAN / UPC
8435364320099
Also known as
iggual L1DBT-G-AX Handheld bar code reader 1D Laser Black

Specifications

45 specifications in 8 groups

Scanning

TypeHandheld bar code reader
Scanner type1D
2D (matrix & stacked) barcodes supportedNot supported
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ISSN, JAN-13, JAN-8, MSI, Standard 25, UPC-A, UPC-E
Sensor typeLaser
Trigger modeAuto-induction, Continuous, Manual
Working distance range10 - 60 mm
Read rate (max)300 reads/s
Wavelength650 nm
Tilt reading angle0 - 65°
Depth of field range18 cm
Tilt angle range0 - 65°

Ports & interfaces

Connectivity technologyWired & Wireless
Standard interfacesBluetooth, USB
Operating frequency2400 MHz
Ethernet LANYes

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polyvinyl chloride (PVC)
International Protection (IP) codeIP52
Protection featuresElectrostatic Discharge (ESD) protection
LED indicatorsYes
Ambient lightingYes
Print contrast35%

Power

Power source typeBattery
Power consumption (typical)0.35 W
Battery voltage3.7 V
Battery life15 h
Charging time3 h
Input voltage5 V

Weight & dimensions

Width66.5 mm
Depth89 mm
Height168 mm
Weight135 g

Operational conditions

Drop resistance1.5 m
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)20 - 85%
Storage temperature (T-T)0 - 50 °C

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery capacity800 mAh

Other features

Compatible operating systemsWindows, macOS, Linux, Android
Linux operating systems supportedYes
Mobile operating systems supportedAndroid
Quick start guideYes
Windows operating systems supportedYes
