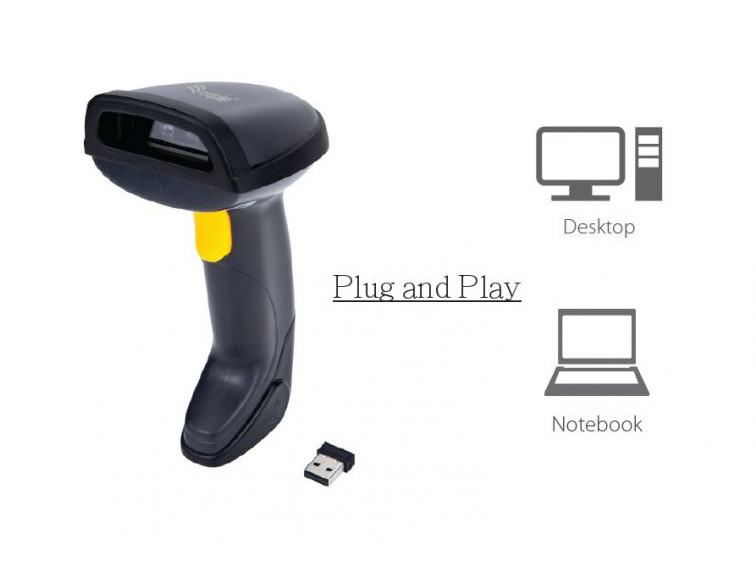

Wireless 2D Dual Mode
2.4GHz + Bluetooth Barcode Scanner, with Stand
Model 351029EAN 4015867238806
54 specifications
- Battery1500 mAh
- ConnectivityWireless
- TypeHandheld bar code reader
- Weight187 g
- ColourBlack
- Power source typeBattery
Overview
- Battery
- 1500 mAh
- Connectivity
- Wireless
- Type
- Handheld bar code reader
- Weight
- 187 g
- Colour
- Black
- Power source type
- Battery
- Brand
- Equip
- Category
- Barcode Reader
- Model
- 351029
- Part number
- 351029
- EAN / UPC
- 4015867238806
- Also known as
- Equip Wireless 2D Dual Mode 2.4GHz + Bluetooth Barcode Scanner, with Stand
Specifications
54 specifications in 11 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Data Matrix, PDF417, QR Code |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E |
| Sensor type | CMOS |
| Trigger mode | Auto-induction, Continuous, Manual |
| Scanner resolution | 4 mm |
| Working distance | 150 cm |
| Read rate (max) | 220 reads/s |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -30 - 30° |
| Yaw reading angle | -35 - 35° |
| Depth of field range | 60 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth, RF Wireless |
| Operating frequency | 2400 MHz |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP54 |
| Protection features | Water resistant |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery type | Built-in battery |
| Battery voltage | 3.7 V |
| Battery life | 20 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 72 mm |
| Depth | 101 mm |
| Height | 175 mm |
| Weight | 187 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-C |
| Receiver included | Yes |
| Stand included | Yes |
| Package width | 150 mm |
| Package depth | 207 mm |
| Package height | 100 mm |
| Package weight | 465 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 90 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1500 mAh |
| Battery capacity | 5.55 Wh |
| Standby time | 3 month(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8471900000 |
| Master (outer) case gross weight | 15.5 kg |
| Master (outer) case height | 525 mm |
| Master (outer) case length | 485 mm |
| Master (outer) case width | 440 mm |
| Products per master (outer) case | 30 pc(s) |
Other features
| Specification | Value |
|---|---|
| Linux operating systems supported | Yes |

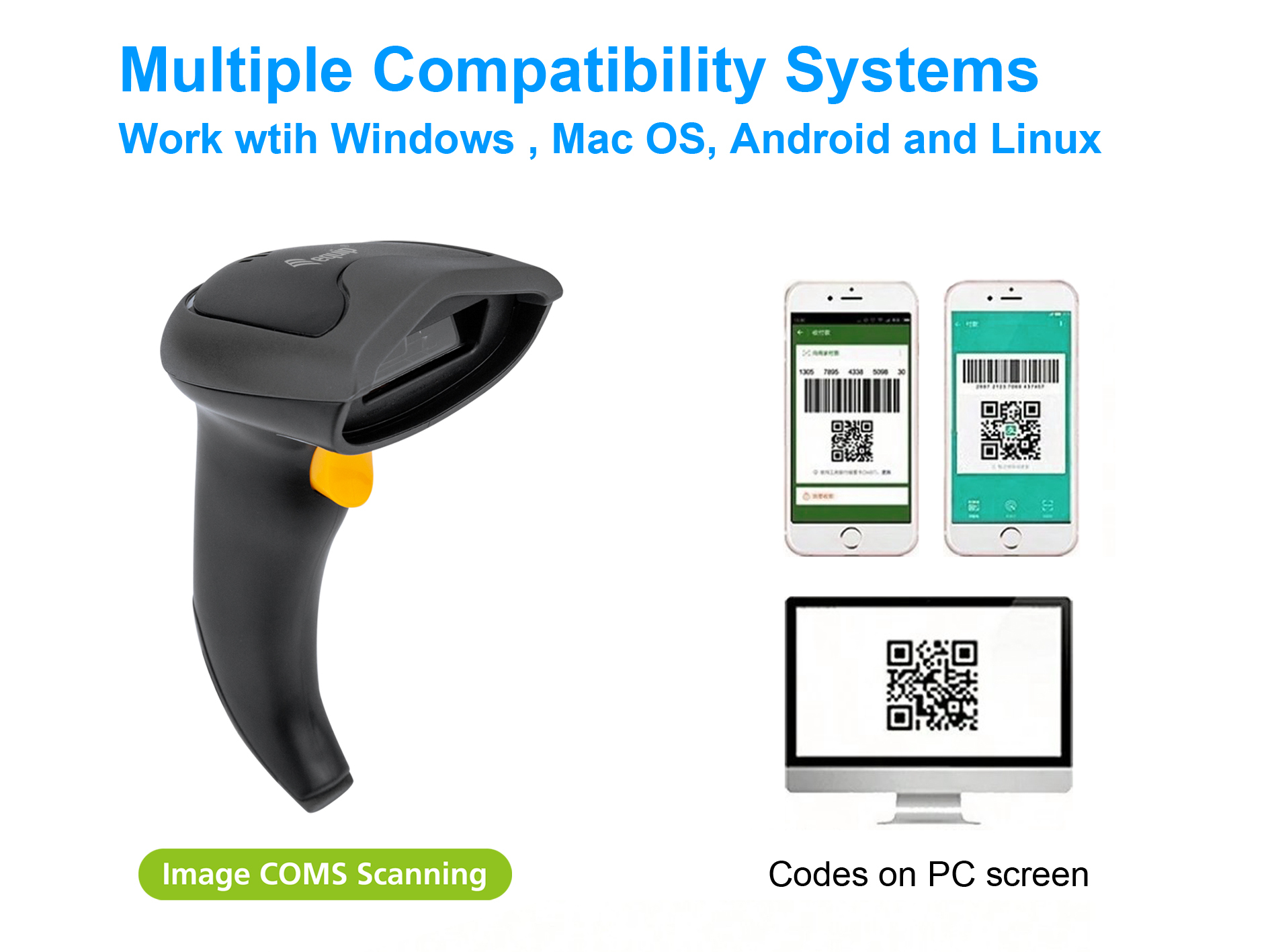

| Mobile operating systems supported | Android, iOS |
| Quick start guide | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
