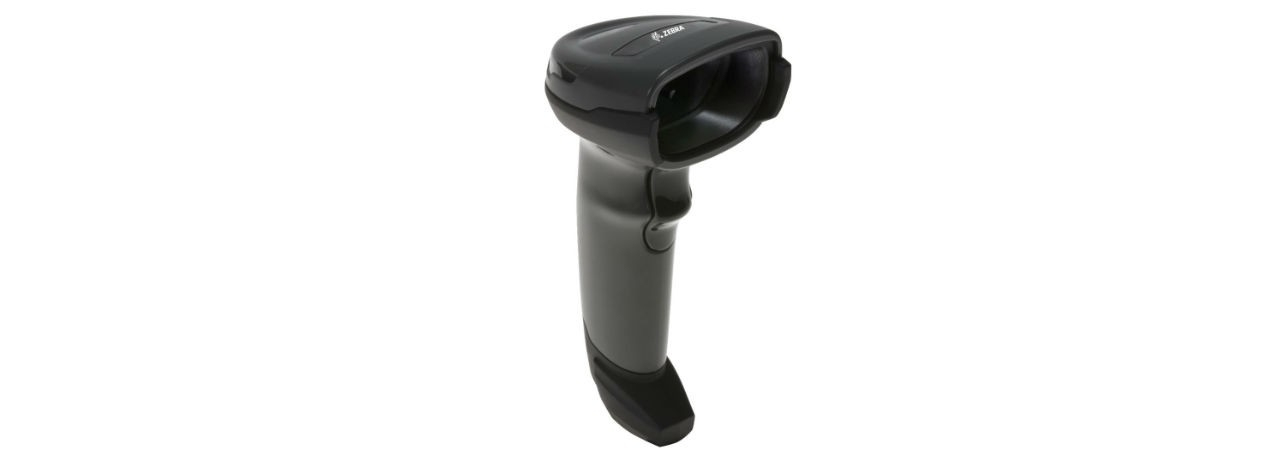

Symbol DS4308-TT
Model Symbol DS4308-TTPart no. DS4308-TT00007ZZJP
22 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight162 g
- ColourBlack
- Width67 mm
- Operating relative humidity (H-H)5 - 95%
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 162 g
- Colour
- Black
- Width
- 67 mm
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- Symbol DS4308-TT
- Part number
- DS4308-TT00007ZZJP
- Also known as
- Zebra Symbol DS4308-TT Handheld bar code reader 1D/2D Black
Specifications
22 specifications in 5 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Code 128, Code 32, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, U.P.C. |
| Light levels (direct sunlight) | 1600 - 86000 lx |
| Wavelength | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -60 - 60° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| International Protection (IP) code | IP42 |
| Certification | UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 67 mm |
| Depth | 98 mm |
| Height | 165 mm |
| Weight | 162 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
