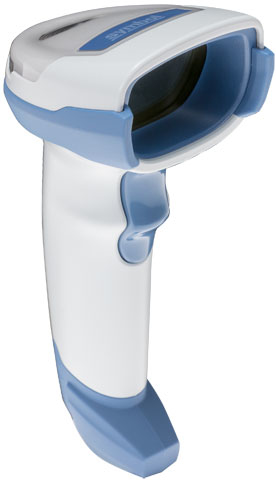

Zebra Symbol DS4308-SR

Zebra Symbol DS4308-SR

Model Symbol DS4308-SRPart no. DS4308-SR6R0110AZNEAN 702334649039

23 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight162 g
  • ColourWhite
  • Input voltage5 V
  • Width67 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
162 g
Colour
White
Input voltage
5 V
Width
67 mm
Brand
Zebra
Model
Symbol DS4308-SR
Part numbers
DS4308-SR6R0110AZN, DS4308-SR7R0110AZN, DS4308-SR7R0110SGN, DS4308-SR7R0110PZN, DS4308-SR7R0110PZA, DS4308-SR6U2100SGA +27 more
EAN / UPC
702334649039, 5706998929075, 7426700031008, 886201599938 +12 more
Also known as
Motorola Symbol DS4308-SR Handheld bar code reader 2D White

Specifications

23 specifications in 8 groups

Scanning

TypeHandheld bar code reader
Scanner type2D
2D (matrix & stacked) barcodes supportedHan Xin, Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Pitch reading angle-65 - 65°
Yaw reading angle-60 - 60°
Motion tolerance (cm/s)76.2

Ports & interfaces

Connectivity technologyWired

Performance

Product colourWhite
LED indicatorsYes
BuzzerYes
Built-in displayNo
CertificationUL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed. IEC 62471:2006 and EN 62471:2008 FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024, Medical Electrical Equipment: EN60601-1-2

Power

Input voltage5 V
Power consumption360 mA

Weight & dimensions

Width67 mm
Depth98 mm
Height165 mm
Weight162 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84716070
