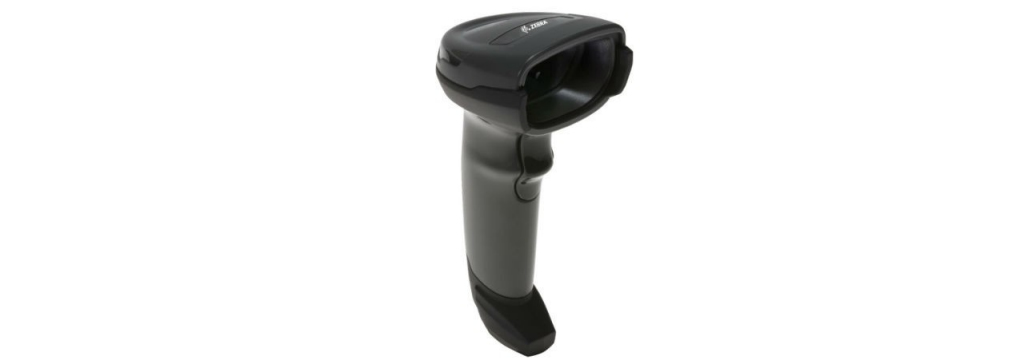

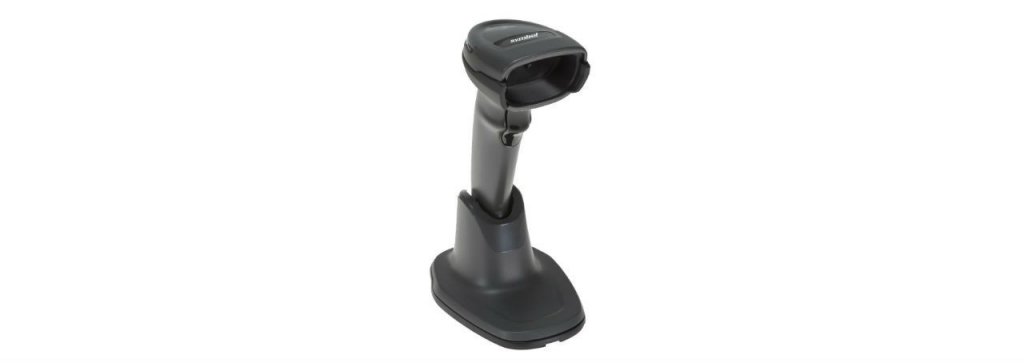

Zebra Symbol DS4308

Zebra Symbol DS4308

Model Symbol DS4308Part no. DS4308-HD7U2100AZWEAN 5712505505397

19 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight162 g
  • ColourBlack
  • Power source typeDC
  • Width67 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
162 g
Colour
Black
Power source type
DC
Width
67 mm
Brand
Zebra
Model
Symbol DS4308
Part number
DS4308-HD7U2100AZW
EAN / UPC
5712505505397
Also known as
Zebra Symbol DS4308 Handheld bar code reader 1D/2D Black

Specifications

19 specifications in 7 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Linear (1D) barcodes supportedCodabar, Code 11, Code 25 (IR 2 of 5), Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, PostBar, U.P.C.
Light levels (direct sunlight)0 - 86000 lx

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB

Performance

Product colourBlack
CertificationIEC 62471:2006 and EN 62471:2008 FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024, Medical Electrical Equipment: EN60601-1-2

Power

Power source typeDC
Input voltage5 V

Weight & dimensions

Width67 mm
Depth98 mm
Height165 mm
Weight162 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C

Technical details

Compliance certificatesRoHS
