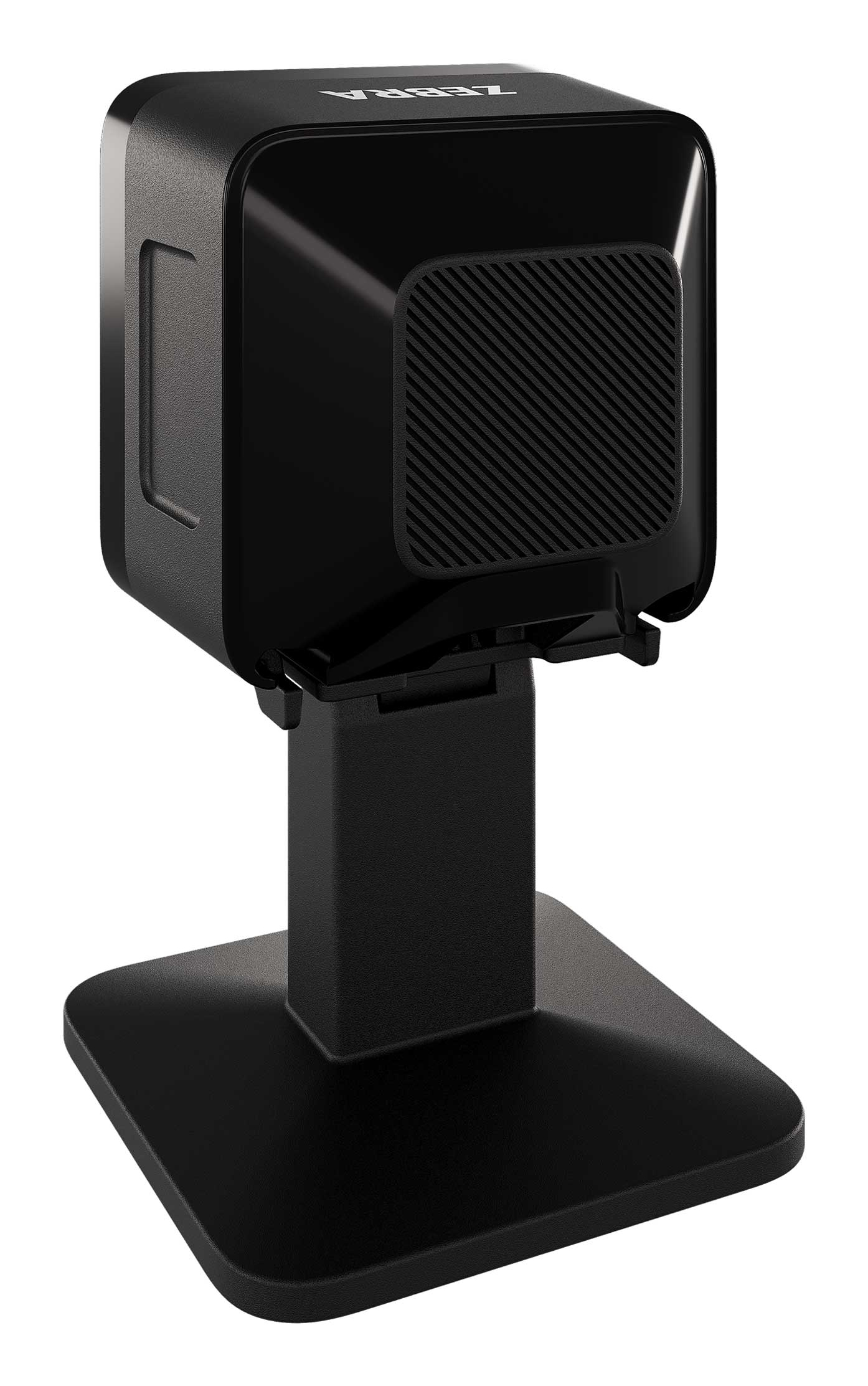

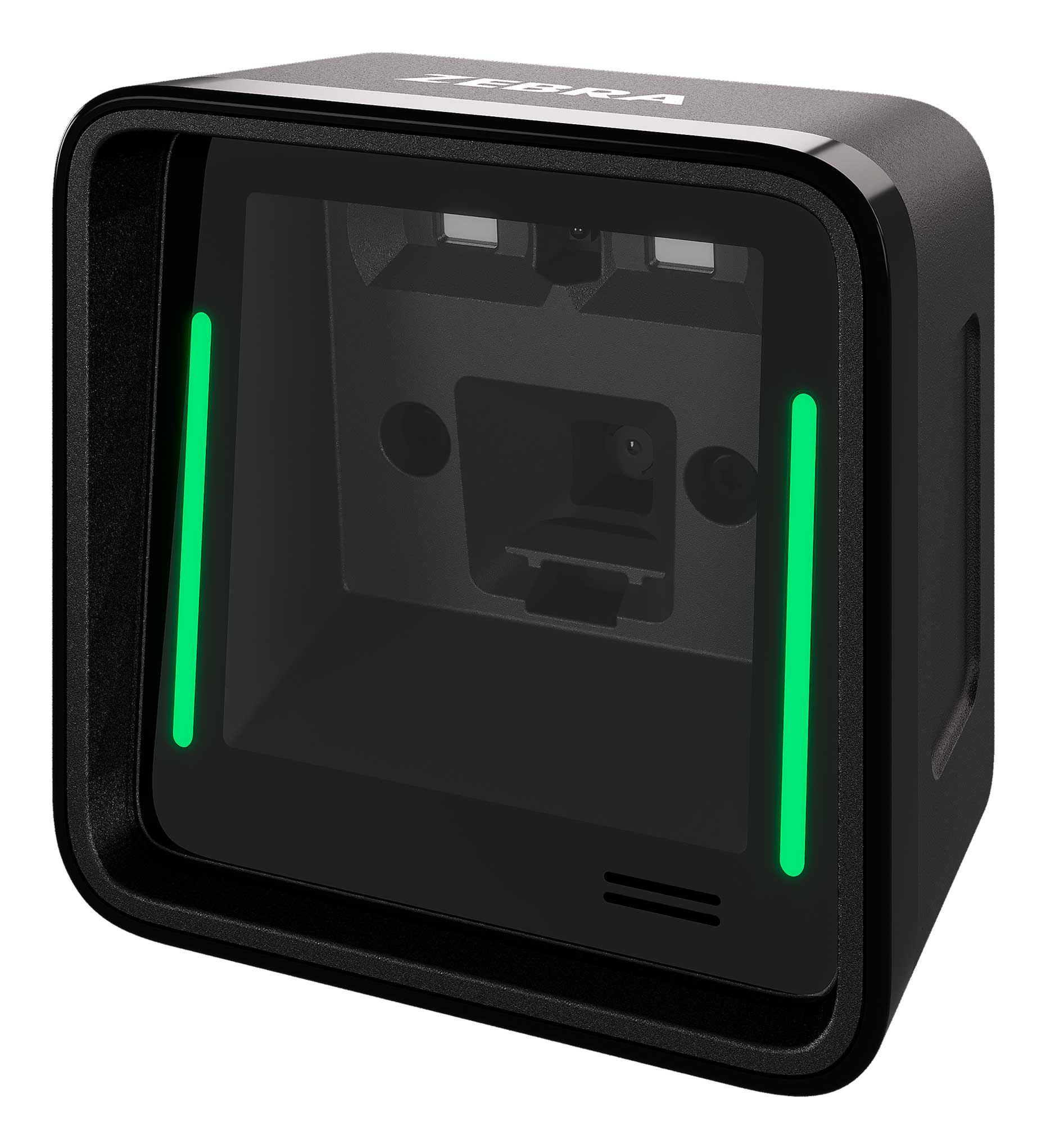

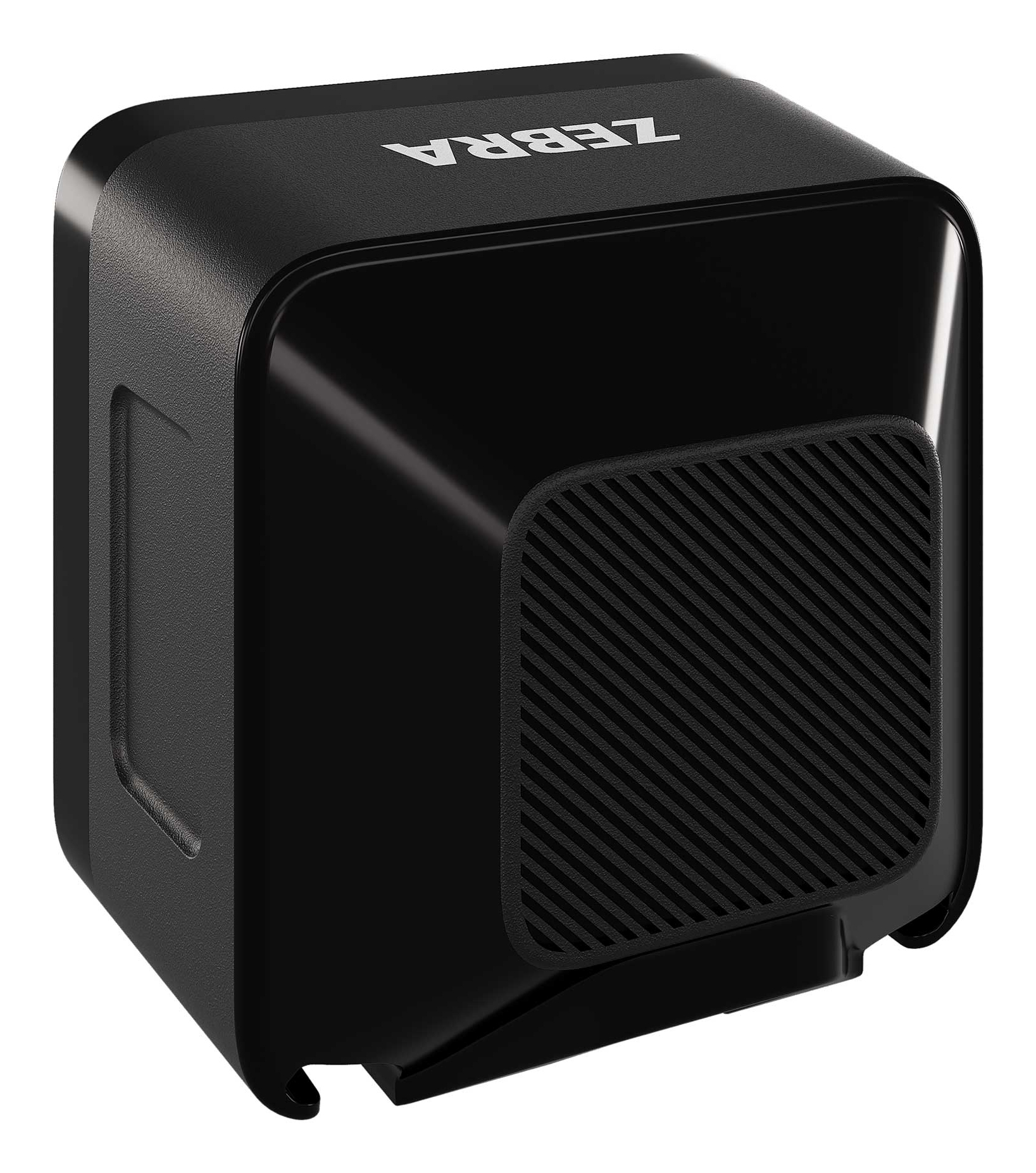

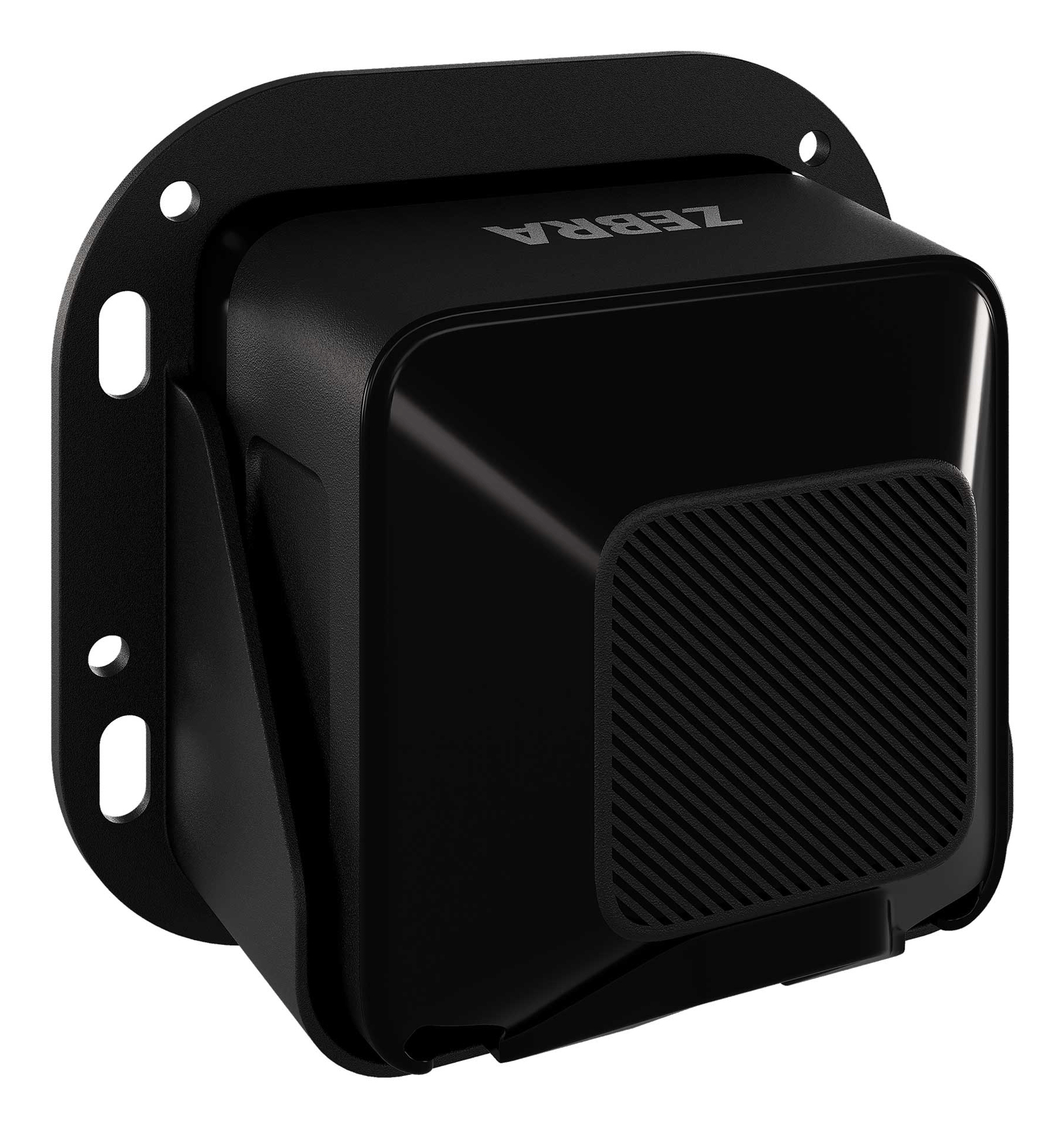

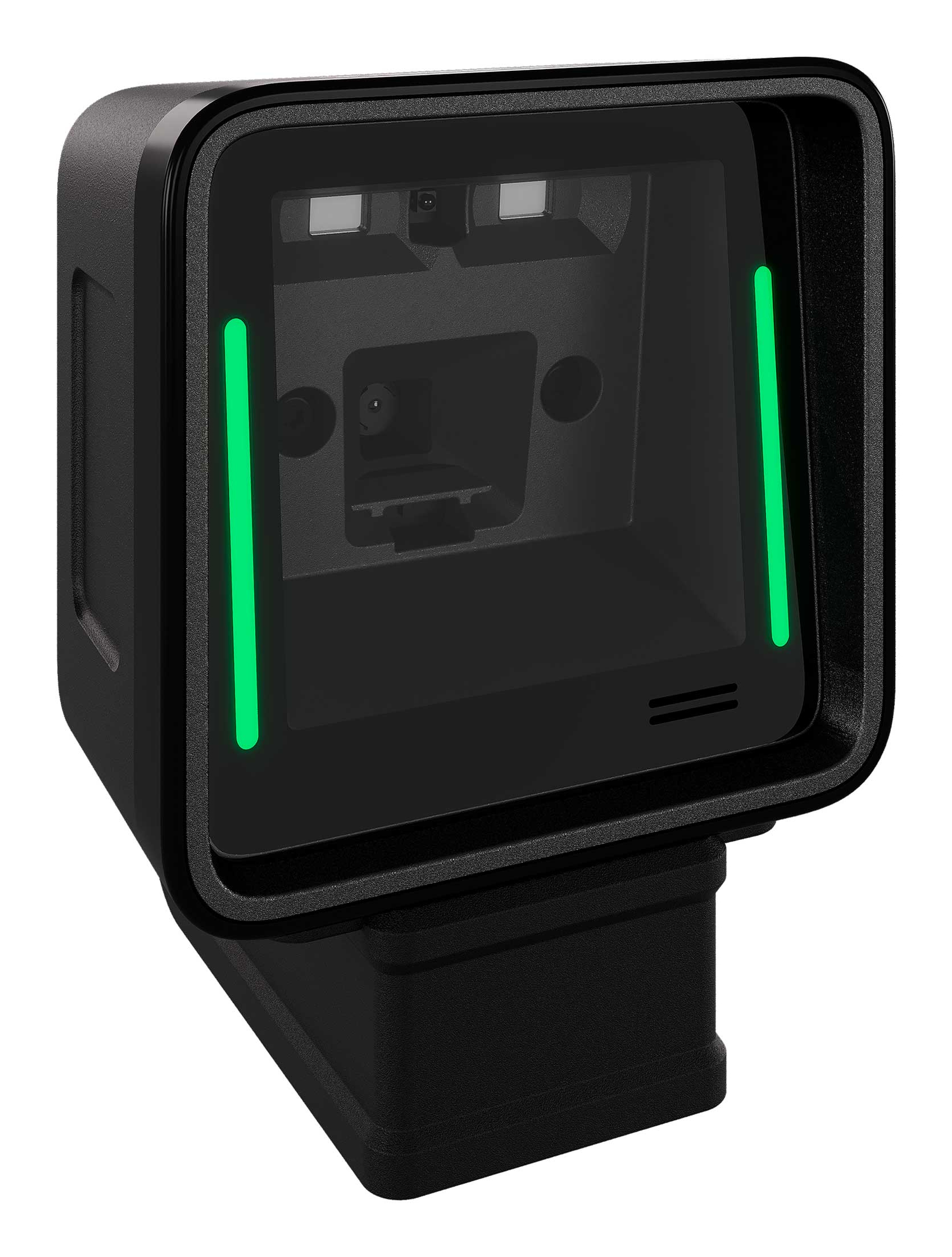

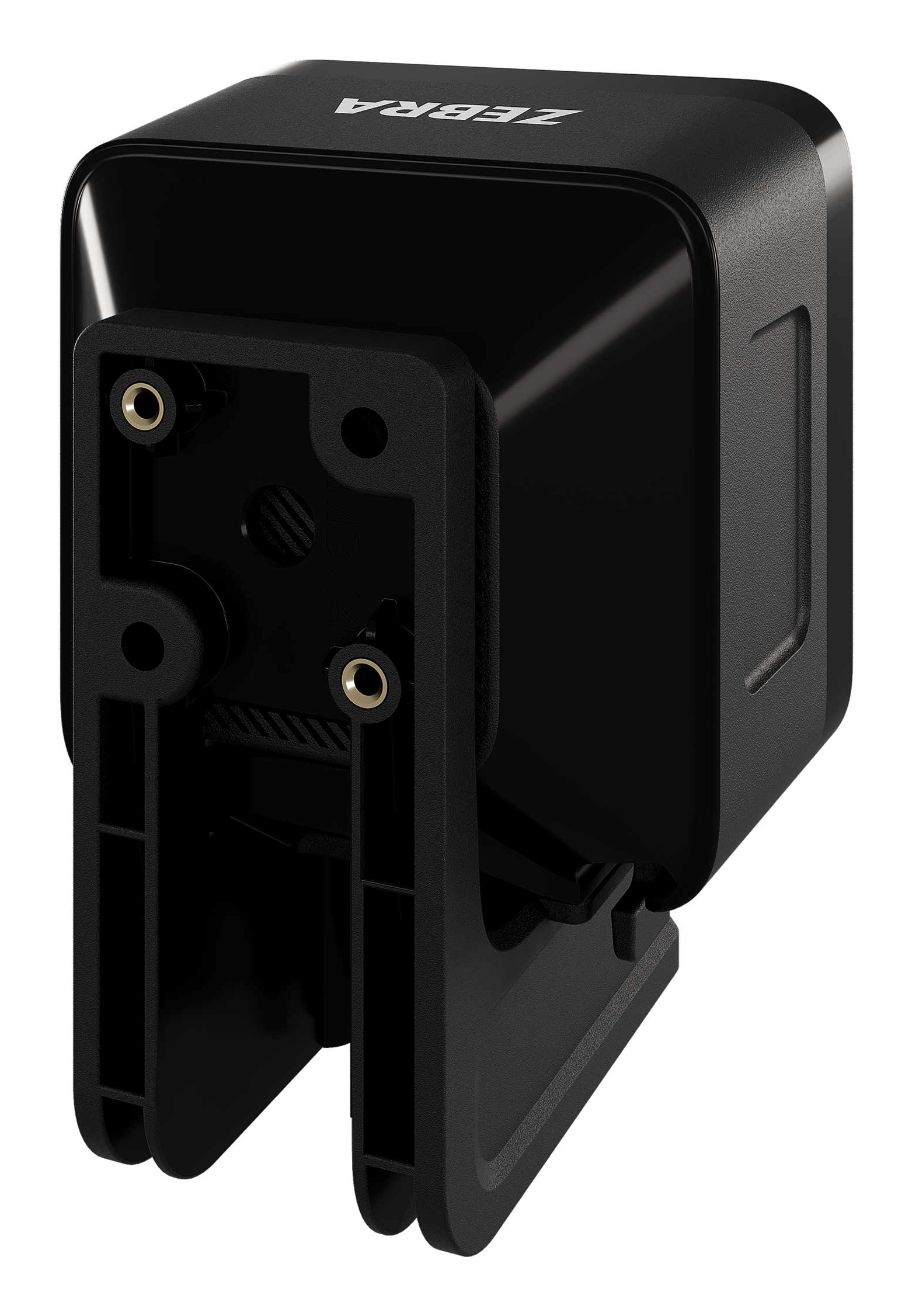

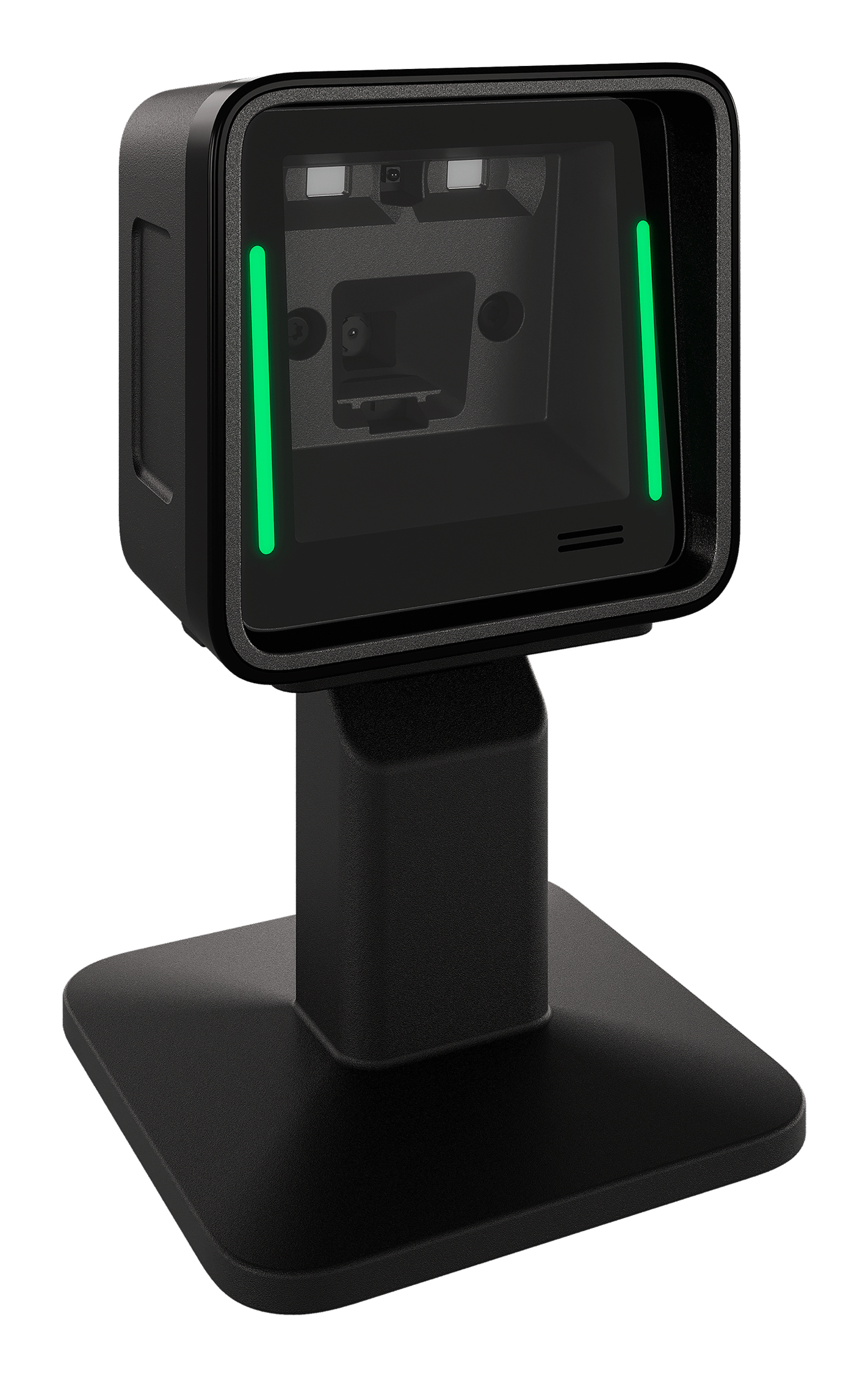

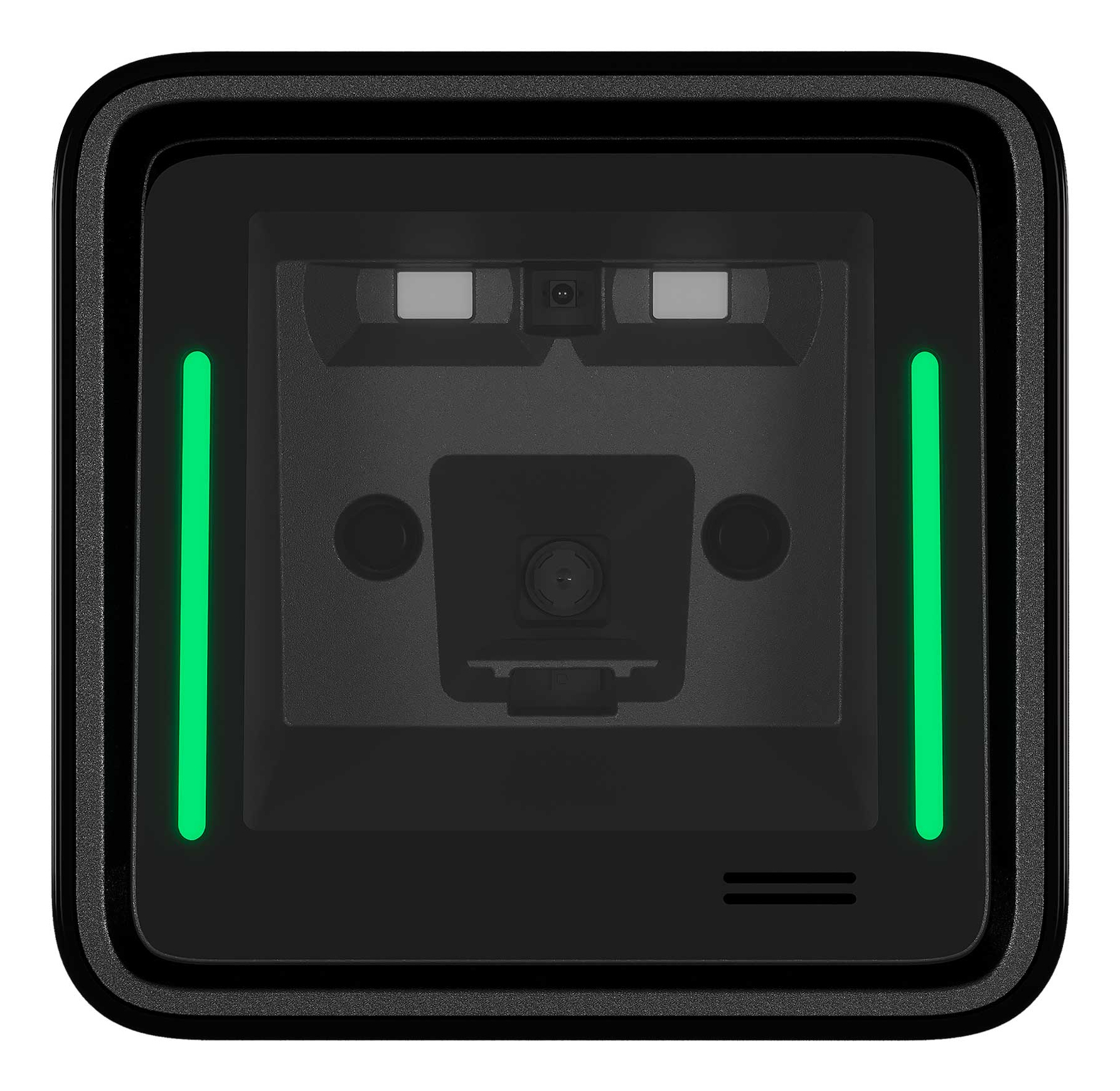

SP2002 Fixed bar code reader 1D/2D CMOS Black
Model SP2002Part no. SP2002-SR4UR700SGW
29 specifications
- ConnectivityWired
- TypeFixed bar code reader
- Weight110 g
- ColourBlack
- Power source typeUSB, RS-232
- Width75 mm
Overview
- Connectivity
- Wired
- Type
- Fixed bar code reader
- Weight
- 110 g
- Colour
- Black
- Power source type
- USB, RS-232
- Width
- 75 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- SP2002
- Part numbers
- SP2002-SR4UR700SGW, SP2002-SR00004ZZWW, SP2002-SR400000SGW
- Also known as
- Zebra SP2002 Fixed bar code reader 1D/2D CMOS Black
Specifications
29 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Composite Codes, Aztec Code, MaxiCode, SecurPharm, Postal Codes, GS1 Digital Link |
| Linear (1D) barcodes supported | Code 39, Code 128, Code 93, Codabar, Code 11, MSI-Plessey, EAN-13, UPC-A, Korean 3 of 5, GS1 DataBar, Code 32 |
| Sensor type | CMOS |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance range | 64 - 198 mm |
| Horizontal field of view | 62° |
| Vertical field of view | 41° |
| Pitch reading angle | -60 - 60° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP52 |
| Protection features | Drop resistant, Electrostatic Discharge (ESD) protection, Impact resistant, Shock resistant |
| LED indicators | Power |
| Print contrast | 20% |
Power
| Specification | Value |
|---|---|
| Power source type | USB, RS-232 |
| Input voltage | 4.75 - 5.25 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 57 mm |
| Height | 75 mm |
| Weight | 110 g |
Operational conditions
| Specification | Value |
|---|---|
| Drop resistance | 1.5 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | IECEx, CSA, UL |
| Warranty period | 3 year(s) |
