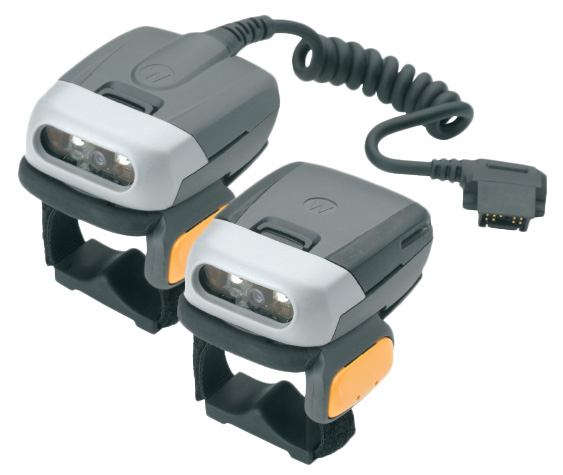

Zebra RS507X 1D/2D Laser Black, Grey
Zebra

RS507X 1D/2D Laser Black, Grey

Model RS507XPart no. RS507X-IM20000STWREAN 5706998669353

29 specifications
  • ConnectivityWireless
  • Weight140.8 g
  • ColourBlack, Grey
  • Scanner type1D/2D
  • Width53 mm
  • Operating relative humidity (H-H)5 - 85%
See all specifications

Overview

Connectivity
Wireless
Weight
140.8 g
Colour
Black, Grey
Scanner type
1D/2D
Width
53 mm
Operating relative humidity (H-H)
5 - 85%
Brand
Zebra
Model
RS507X
Part numbers
RS507X-IM20000STWR, RS507X-IM200000TWR, RS507X-DL20000STWR
EAN / UPC
5706998669353
Also known as
Zebra RS507X 1D/2D Laser Black, Grey

Specifications

29 specifications in 9 groups

Scanning

Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Code 39, MaxiCode, MicroPDF417, PDF417, TLC-39
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI, PDF417, U.P.C.
Sensor typeLaser
Optical sensor resolution (W x H)752 x 480 pixels
Wavelength655 nm
Tilt reading angle-35 - 35°
Pitch reading angle-60 - 60°
Yaw reading angle-50 - 50°
Decoding standardsCodabar, Code 39, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Code 11, Code 32 (PARAF), Code 93, MSI, RSS-14, 2 of 5, 2 of 5 IATA, 2 of 5 Industrial, Trioptic, UPC-E1, 4-CB, Aztec, MicroPDF417, PDF417, MaxiCode, Data Matrix, KIX Post, Planet Code, Postnet, QR Code, EAN/UCC, TLC39

Ports & interfaces

Connectivity technologyWireless
Standard interfacesBluetooth
BluetoothYes

Performance

Product colourBlack, Grey
International Protection (IP) codeIP54
LED indicatorsYes
BuzzerYes
Processor frequency624 MHz

Weight & dimensions

Width53 mm
Depth74 mm
Height33 mm
Weight140.8 g

Packaging data

External power adapterYes

Operational conditions

Operating relative humidity (H-H)5 - 85%
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84716070

Other features

SafetyUL, CSA, IEC, EN, CDRH
