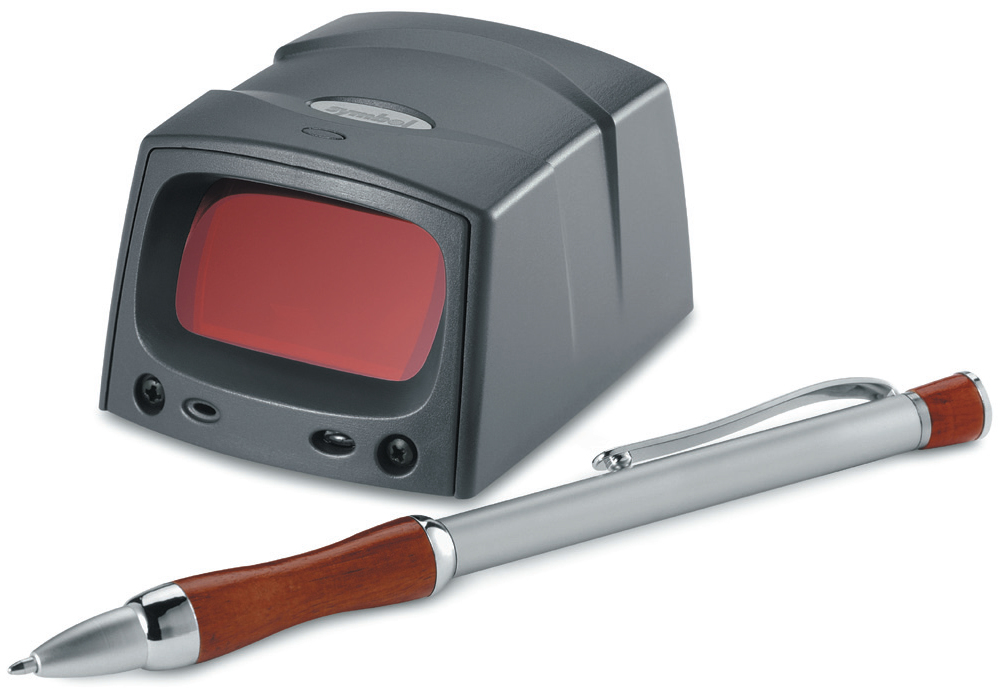

Motorola MS2204 Fixed bar code reader Laser Black
Model MS2204Part no. MS-2204VHD-I000R
21 specifications
- ConnectivityWired
- TypeFixed bar code reader
- Weight134 g
- ColourBlack
- Power source typeDC
- Width57.9 mm
Overview
- Connectivity
- Wired
- Type
- Fixed bar code reader
- Weight
- 134 g
- Colour
- Black
- Power source type
- DC
- Width
- 57.9 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- MS2204
- Part number
- MS-2204VHD-I000R
- Also known as
- Motorola MS2204 Fixed bar code reader Laser Black
Specifications
21 specifications in 6 groups
Scanning
| Specification | Value |
|---|---|
| Type | Fixed bar code reader |
| 2D (matrix & stacked) barcodes supported | PDF417 |
| Linear (1D) barcodes supported | Code 39 |
| Sensor type | Laser |
| Read rate (max) | 640 reads/s |
| Wavelength | 650 nm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP54 |
| Certification | FCC |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input voltage | 5 V |
| Power consumption | 250 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57.9 mm |
| Depth | 74.8 mm |
| Height | 40.6 mm |
| Weight | 134 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
