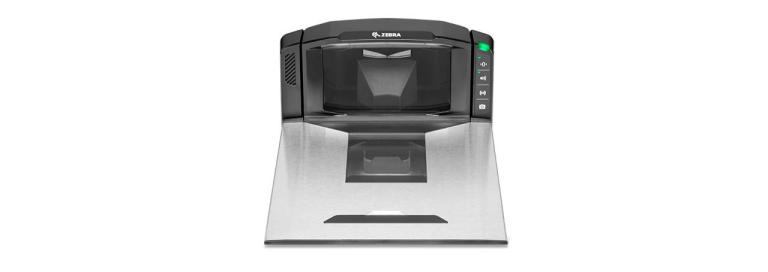

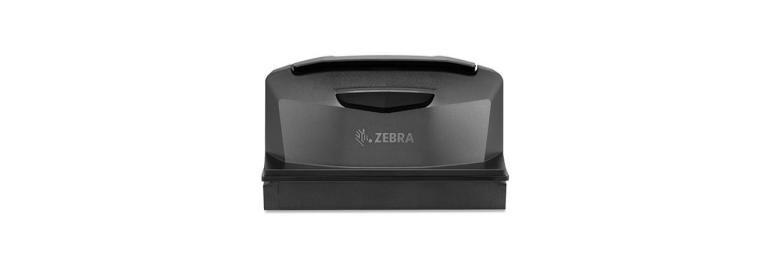

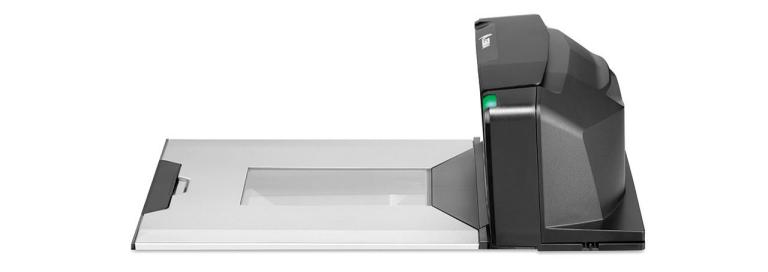

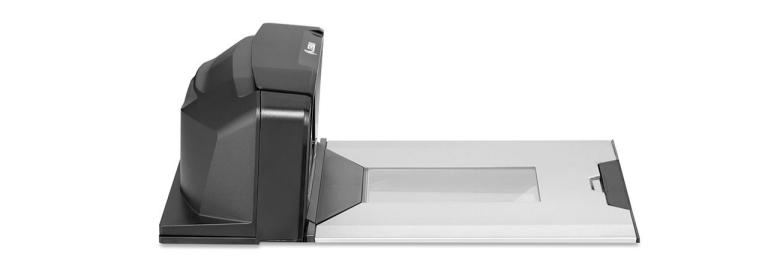

MP7012 Built-in bar code reader 1D/2D CMOS Black, Stainless steel
Model MP7012Part no. MP7012-LNSLM00EUEAN 8596375068049
26 specifications
- ConnectivityWired
- TypeBuilt-in bar code reader
- Weight8 kg
- ColourBlack, Stainless steel
- Power source typeAC, DC
- Width506 mm
Overview
- Connectivity
- Wired
- Type
- Built-in bar code reader
- Weight
- 8 kg
- Colour
- Black, Stainless steel
- Power source type
- AC, DC
- Width
- 506 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- MP7012
- Part numbers
- MP7012-LNSLM00EU, MP7012-MNSLM00EU, MP7012-MNDLM00RU, MP7012-MNSLM00RU
- EAN / UPC
- 8596375068049
- Also known as
- Zebra MP7012 Built-in bar code reader 1D/2D CMOS Black, Stainless steel
Specifications
26 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Built-in bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported | Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, MSI, Plessey, U.P.C. |
| Sensor type | CMOS |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232, RS-485 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Stainless steel |
| Housing material | Glass, Metal |
| Keys quantity | 4 keys |
| LED indicators | Yes |
| Buzzer | Yes |
| Programming function | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| Power consumption (typical) | 5.5 W |
| Power consumption (standby) | 3 W |
| Input voltage | 90 - 264 V |
| Input frequency | 47 - 63 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 506 mm |
| Depth | 292 mm |
| Height | 128 mm |
| Weight | 8 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
