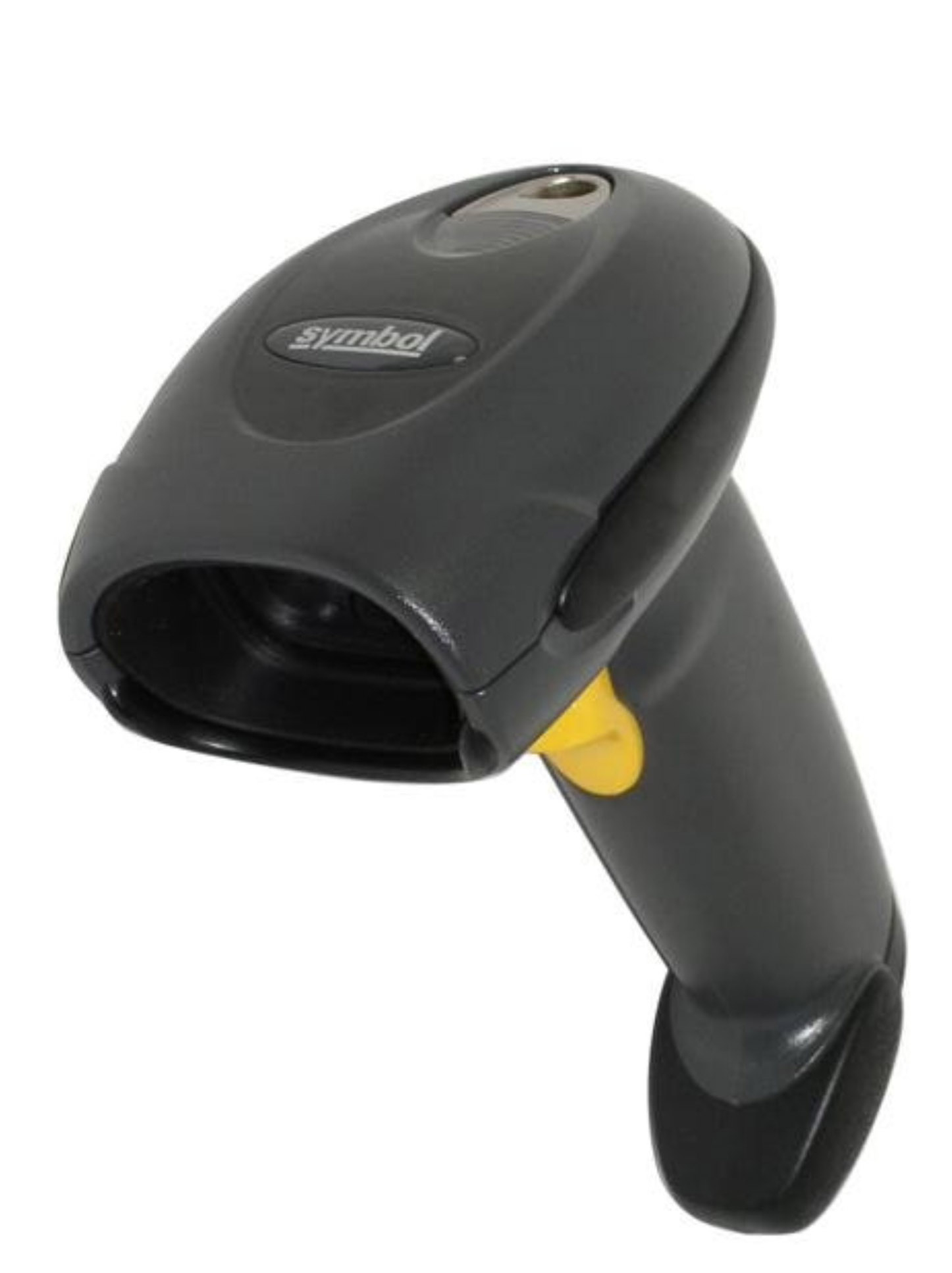

LS4278 Black
Model LS4278 BlackPart no. LS4278-SR20007ZZWREAN 710500172656
20 specifications
- Weight238 g
- ColourBlack
- Sensor typeCCD
- BluetoothYes
- Battery type3 x AAA (NiMH)
- Operating relative humidity (H-H)5 - 95%
Overview
- Weight
- 238 g
- Colour
- Black
- Sensor type
- CCD
- Bluetooth
- Yes
- Battery type
- 3 x AAA (NiMH)
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- LS4278 Black
- Part number
- LS4278-SR20007ZZWR
- EAN / UPC
- 710500172656, 5711783896395
- Also known as
- Motorola LS4278 Black CCD
Specifications
20 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Wavelength | 650 nm |
| Maximum scan area | 254 |
| Decoding standards | UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, GS1 DataBar (formerly RSS) variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EAN, Code 32 |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | RoHS Directive 2002/95/EEC |
Power
| Specification | Value |
|---|---|
| Battery type | 3 x AAA (NiMH) |
| Input voltage | 5 - 12 V |
| Power consumption | 620 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 238 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 69 x 97 x 185 mm |
| Display | No |
| Light source | laser diode (LVD) |
| Maximum operating distance | 15 m |
| Safety | UL1950, CSA C22.2 No. 950, EN60950/IEC950, CDRH Class II, IEC Class 2 |
| Electromagnetic emissions | EN 301 489-1, EN 301 489-17, IEC 60601-1-2, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 |
