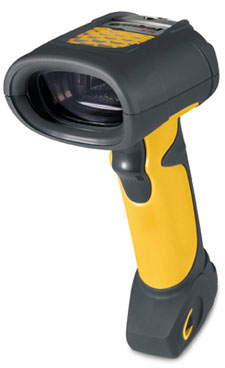

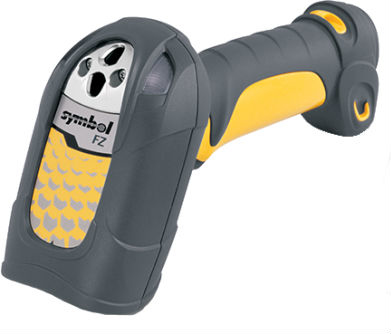

Motorola LS3408-FZAR0200AR barcode reader Handheld bar code reader 1D Laser Black, Yellow
Model LS3408-FZAR0200AR
27 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight350 g
- ColourBlack, Yellow
- Input voltage4.5 V
- Width122.5 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 350 g
- Colour
- Black, Yellow
- Input voltage
- 4.5 V
- Width
- 122.5 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- LS3408-FZAR0200AR
- Part number
- LS3408-FZAR0200AR
- Also known as
- Motorola LS3408-FZAR0200AR barcode reader Handheld bar code reader 1D Laser Black, Yellow
Specifications
27 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Sensor type | Laser |
| Read rate (max) | 36 reads/s |
| Light levels (direct sunlight) | 0 - 4844 lx |
| Wavelength | 650 nm |
| Tilt reading angle | -20 - 20° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -50 - 50° |
| Maximum scan width | 61 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Yellow |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
| Certification | EN, ICES, UL |
Power
| Specification | Value |
|---|---|
| Input voltage | 4.5 V |
| Power consumption | 50 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122.5 mm |
| Depth | 74.3 mm |
| Height | 186.5 mm |
| Weight | 350 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
