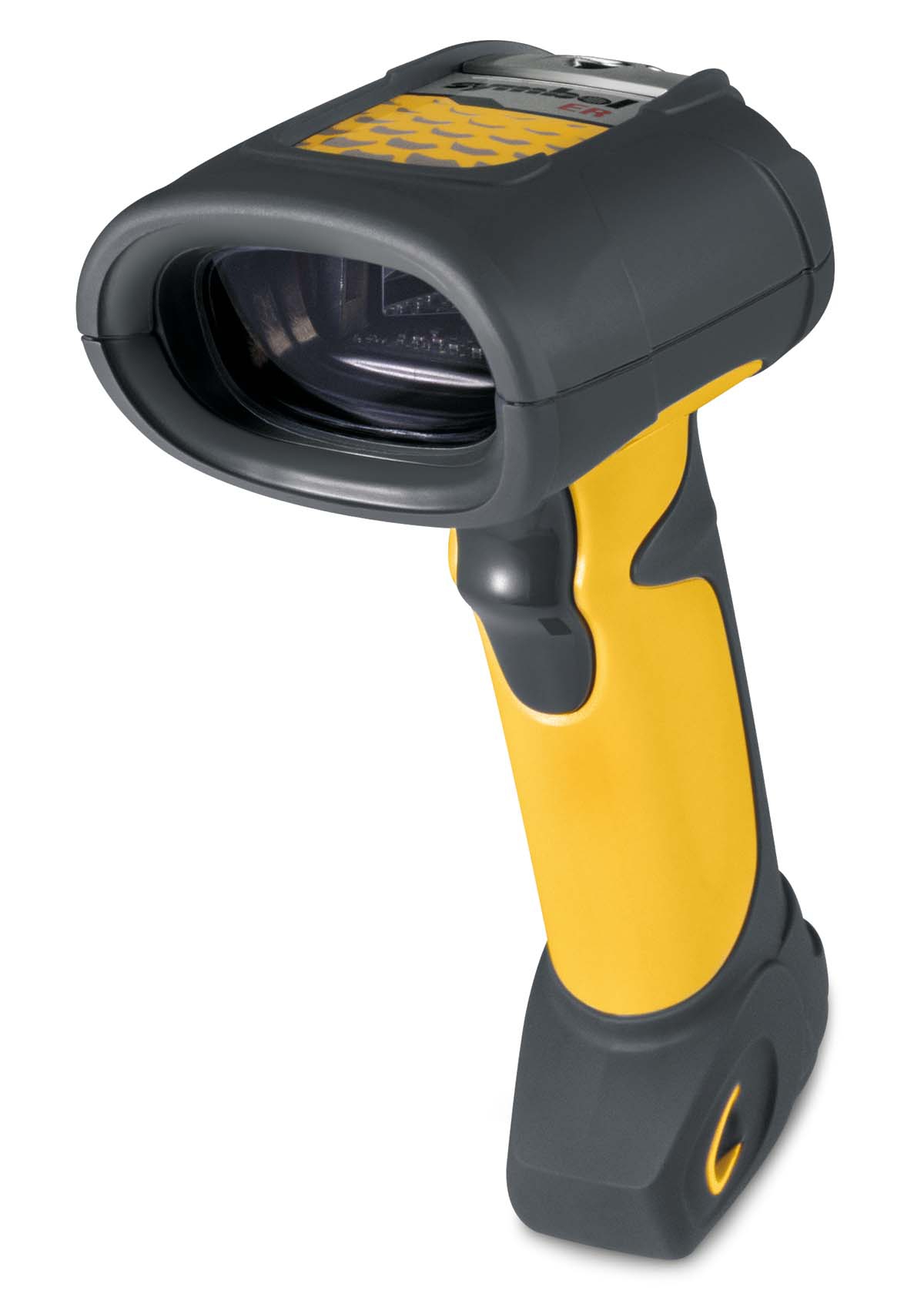

Motorola LS3408-FZ Laser Black, Yellow
Model LS3408-FZPart no. LS3408-FZ20005EAN 5712505300169
18 specifications
- Weight350 g
- ColourBlack, Yellow
- Sensor typeLaser
- Input voltage4.5 V
- Operating relative humidity (H-H)5 - 95%
Overview
- Weight
- 350 g
- Colour
- Black, Yellow
- Sensor type
- Laser
- Input voltage
- 4.5 V
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- LS3408-FZ
- Part numbers
- LS3408-FZ20005, LS3408-FZAK0200ZR, LS3408-FZAR0200BR, LS3408-FZ
- EAN / UPC
- 5712505300169, 3700556081290, 4054318288458, 5052461126107 +2 more
- Also known as
- Motorola LS3408-FZ Laser Black, Yellow
Specifications
18 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Sensor type | Laser |
| Tilt reading angle | -20 - 20° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -50 - 50° |
| Decoding standards | UPC/EAN UPC/EAN + Supplementals GS1-128 JAN 8 & 13 Code 39 Code 39 Full ASCII Code 39 Trioptic Code 128 Code 128 Full ASCII Codabar (NW7) Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 Code 32 Bookland EAN IATA GS1DataBar |
| Scan speed | 36 sec/page |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | RS-485, USB, Keyboard wedge, RS-232 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Yellow |
Power
| Specification | Value |
|---|---|
| Input voltage | 4.5 V |
| Power consumption | 50 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 350 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 122.5 x 74.3 x 186.5 mm |
| Light source | 650nm |
| Safety | UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Electromagnetic emissions | EN 301 489-1, EN 301 489-17, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 |
