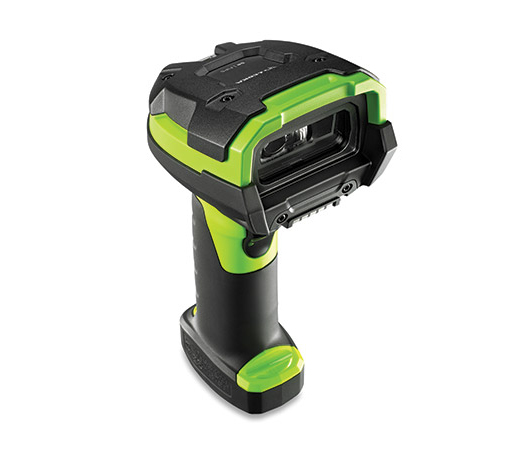

LI3608 Handheld bar code reader 1D Black, Green
Model LI3608Part no. LI3608-SR3U4600VZW-BULK3EAN 4016139084626
32 specifications
- Battery3100 mAh
- ConnectivityWired
- TypeHandheld bar code reader
- Weight287 g
- ColourBlack, Green
- Power source typeBattery
Overview
- Battery
- 3100 mAh
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 287 g
- Colour
- Black, Green
- Power source type
- Battery
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- LI3608
- Part numbers
- LI3608-SR3U4600VZW-BULK3, LI3608-ER3U4600ZVW-BULK10, LI3608-ER3U4600ZVW-BULK3, LI3608-SR3U4600VZW, LI3608-ER20003VZWW, LI3608-SR3U4600VZW-BULK10
- EAN / UPC
- 4016139084626, 8596375060609, 8596375060548, 783555103432
- Also known as
- Zebra LI3608 Handheld bar code reader 1D Black, Green
Specifications
32 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 25 (non-IR 2 of 5), Code 39, Code 93, GS1-128 (UCC/EAN-128), U.P.C. |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Optical sensor resolution | 1500 pixels |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232, Bluetooth |
| Data transfer rate | 3 Mbit/s |
| Wireless range | 100 m |
| PC connection | RS-232 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Green |
| International Protection (IP) code | IP65 |
| Protection features | Shock resistant |
| LED indicators | Yes |
| Certification | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07, IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED), EN 55022: 2010/AC: 2011 (Class B), EN 55024: 2010, EN 61000-6-2: 2005/AC:2005, |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Input voltage | 4.5 - 5.5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 287 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
